galvanized stainless steel sieve basket

More Views

galvanized stainless steel sieve basket

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:Liquid Filter,coal filter,industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

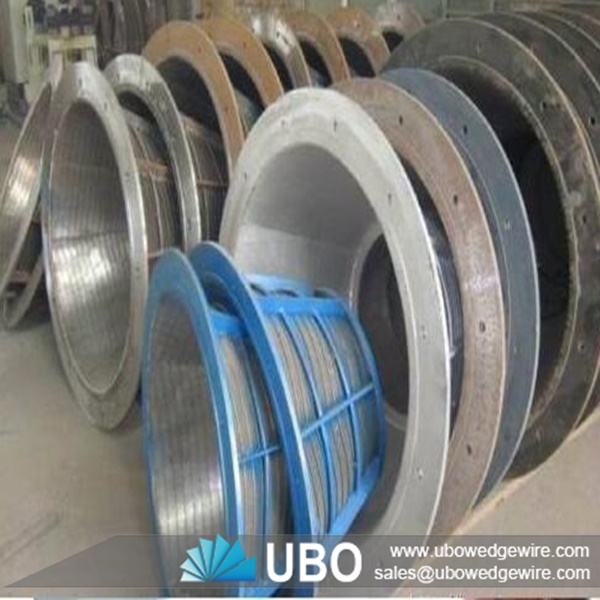

Details of galvanized stainless steel sieve basket

The galvanized stainless steel sieve basket is also called the blue screen, is mainly used in centrifuge dehydration, widely used in coal, chemical industry, metallurgy, etc.Sieve basket is a key component of centrifugal machine, it is high speed rotating parts, sieve basket to withstand a load vibration not only at work, but also bear the severe impact of coal, water, so the strength and accuracy requirements are high.

Features of galvanized stainless steel sieve basket

1, with complete varieties and specifications, can meet different types, different coal quality, the use of different screening requirements;
2, main technological dimension accuracy and small error.Fixed bolt hole does not appear the wrong eye, slant eyes wait for a phenomenon, and make the installation time, and effort;
3, welding quality is good, firm structure, does not appear bar is open welding, cracking and other phenomenon;
4, sieve seam and uniform, the screen surface is smooth, high hole rate, through the sieve.

Application of galvanized stainless steel sieve basket

Mine sieving mesh is sieved and filtered under the acid, environmental condition of alkali that used in . Petroleum industry make mud network , chemical chemical fibre industry is it sift filterscreen , electroplate industry act as network of pickling to maked salt sieving mesh. mine sieving mesh used in coal and mining industry.

        galvanized stainless steel sieve basket

Specifications of galvanized stainless steel sieve basket:



Diameter

20,50,53,57,60,65,70,75,80, 100,125,200,245,300,320,360,400,450,500,550,600,1200mm

Slot

0.015,0.025,0.03,0.05,0.1,0.15, 0.2,0.25,0.3,0.5…..15 mm

Length

50~6000mm

Material

Stainless steel or low carbon galvanized steel (LCG)

Note

 Parameters can be customized as per clients' requirements

stainless steel sieve basket

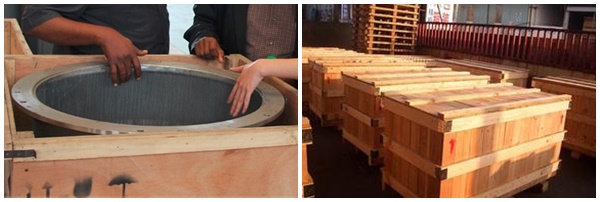

Packaging and Transportation of galvanized stainless steel sieve basket:

packing

transport
