Quality Wedge Wire Screen Manufacturer in China

Low Carbon Galvanized Steel water well screen pipes factory

More Views

Low Carbon Galvanized Steel water well screen pipes factoryLow Carbon Galvanized Steel water well screen pipes factoryLow Carbon Galvanized Steel water well screen pipes factory

Low Carbon Galvanized Steel water well screen pipes factory

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatme

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Low Carbon Galvanized Steel water well screen pipes factory

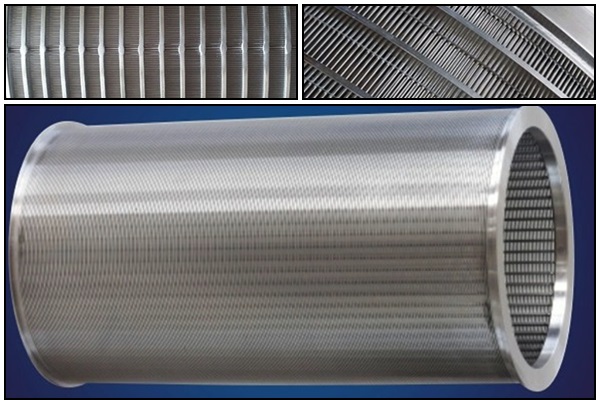

    The Johnson Screen pipe is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.
    The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

Uses for Low Carbon Galvanized Steel water well screen pipes factory:

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Characteristics for Low Carbon Galvanized Steel water well screen pipes factory:

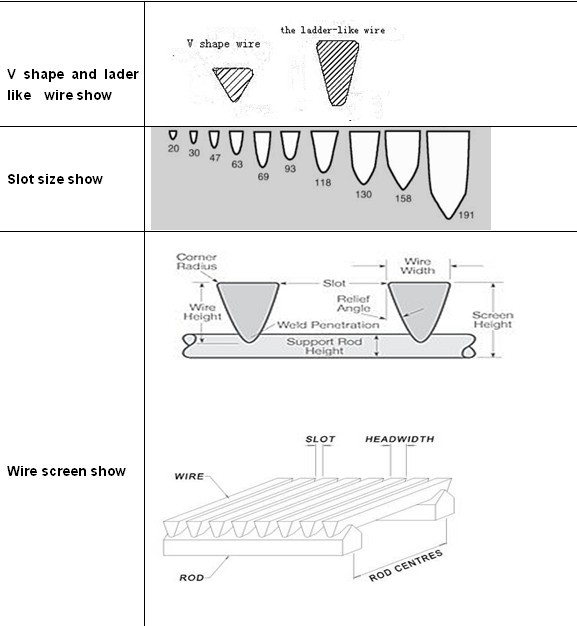

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantages for Low Carbon Galvanized Steel water well screen pipes factory:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Low Carbon Galvanized Steel water well screen pipes factory

Specifications of Low Carbon Galvanized Steel water well screen pipes factory:

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Low Carbon Galvanized Steel water well screen pipes factory

Packaging and Transportation of Low Carbon Galvanized Steel water well screen pipes factory:

With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material.

Low Carbon Galvanized Steel water well screen pipes factory
