Wire-wrapped of stainless steel pipe

More Views

Wire-wrapped of stainless steel pipeWire-wrapped of stainless steel pipeWire-wrapped of stainless steel pipe

Wire-wrapped of stainless steel pipe

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application: water,oil,mining,liquid filtration,industy filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wire-wrapped of stainless steel pipe

The wire wrapped of stainless steel pipe materials: 302, 304, 304L, 316, 316L stainless steel wire.

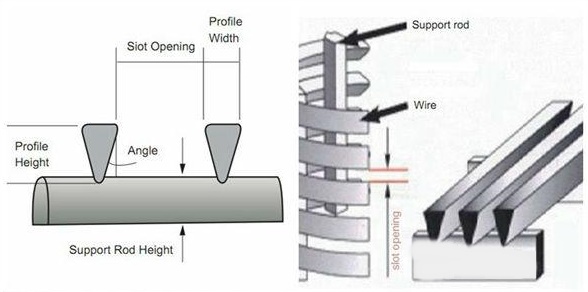

The profile wire stainless steel pipe screen is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact.

The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods (fixed or variable) allow us to design a screen according your technical or cosmetic specification.

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.

Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.

Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

Characteristics of Wire-wrapped of stainless steel pipe

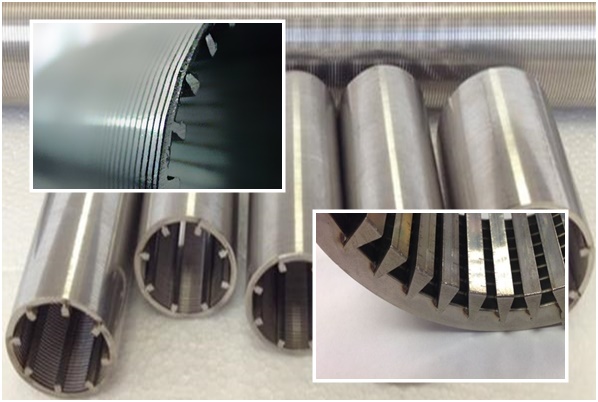

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

         Wire-wrapped of stainless steel pipe



Specifications of Wire-wrapped of stainless steel pipe:

diameter:1-30inch

minimum slot:0.01mm

wall thickness:4mm or 6mm

standard length:5.8-6meters

supply capacity:6800meters per month

High quality

Low price

Fast delivery

First class technology

the longth and the thickness are according to the coustomers' requirments

screen pipe

Material:
AISI304/316/316L,etc.
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot Size
0.10 -- 6.00mm ,also can be customized as your request.
Length
Max 6 meters.
Diameter
25mm -- 1200mm.


 Note:

1) This product can customize according to customer's actual need different specifications and raw materials
(mainly are stainless steel and carbon steel two), assuring the rational investment, economize the production cost.

2) Sieve tube fittings or according to different needs to prepare.


Packaging and Transportation of Wire-wrapped of stainless steel pipe:

transport
