Wire-wrapped Sizing applied stainless V wire screen
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Stainless Steel Pipe |
Application: | the water pump, in the water-treating equipment, the environmental protection |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

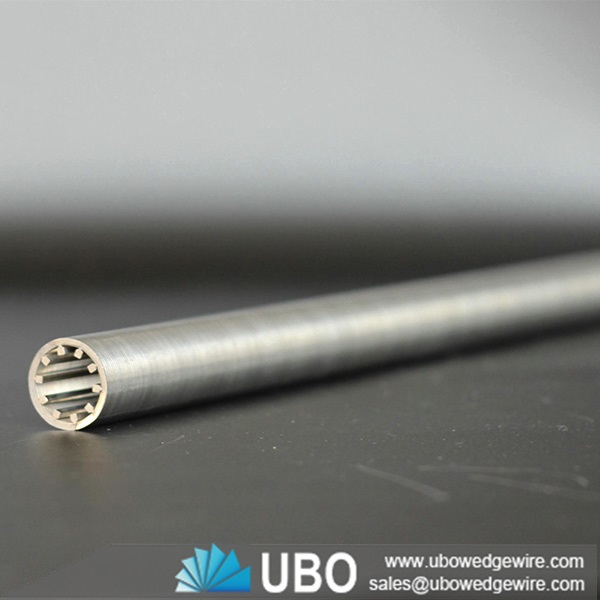

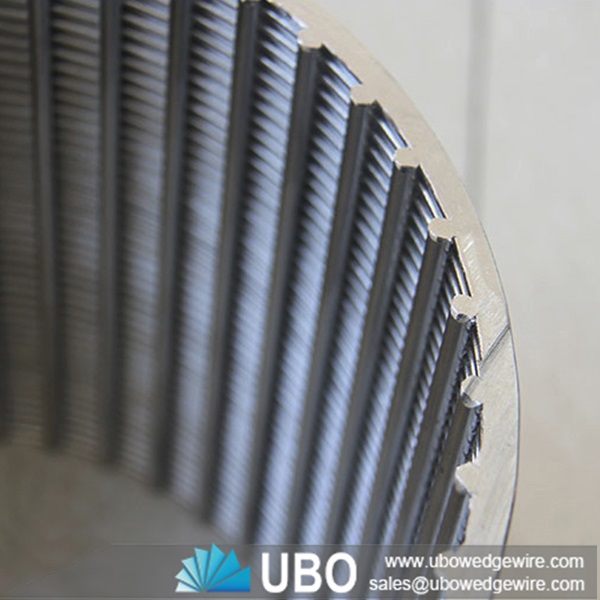

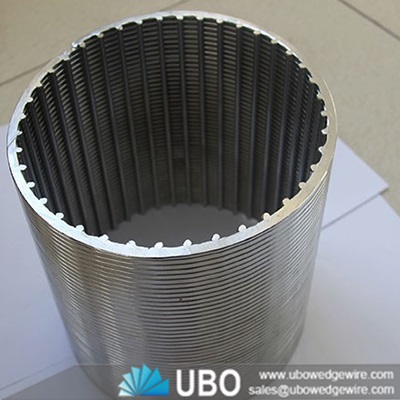

Details of Wire-wrapped Sizing applied stainless V wire screen
Wire-wrapped Sizing applied stainless steel V wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.
Application for Wire-wrapped Sizing applied stainless V wire screen:
Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters
Advantages for Wire-wrapped Sizing applied stainless V wire screen:
Reduced consumption of treated water for backwashin
Savings in filter height and volume
No maintenance, repair or shutdown
No need for suspended filter floor

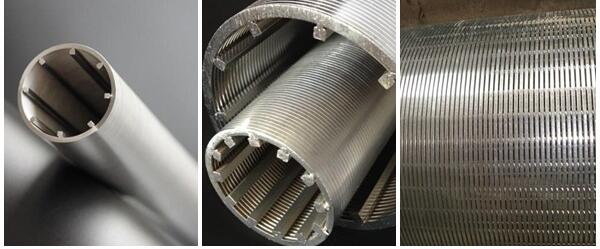

Characteristics for Wire-wrapped Sizing applied stainless V wire screen:
The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Specifications of Wire-wrapped Sizing applied stainless V wire screen:
Outside Diameter
|
Profile
wire
|
Rod
wire
|
Rod
quantity
|
Slot
size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000
|
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000
|
32
|
1~1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
40
|
1~1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000
|
65
|
2~2/2
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000
|
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
45~3000
|
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000
|
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000
|
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000
|
200
|
8
|
219.1
|
3.3*4.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000
|
250
|
10
|
273
|
3.3*4.5
|
4*6
|
66
|
0.5~2
|
1000~6000
|
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000
|
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000
|
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1~2
|
1000~6000
|
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1~2
|
500~400
|
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1~2
|
500~400
|
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1~2
|
500~400
|
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1~2
|
500~400
|
Siot:0.1mm~2mm Tolerance:0.05
|
