Wire Mesh V Wire Type Wedge Wire Screen

More Views

Wire Mesh V Wire Type Wedge Wire ScreenWire Mesh V Wire Type Wedge Wire ScreenWire Mesh V Wire Type Wedge Wire Screen

Wire Mesh V Wire Type Wedge Wire Screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment, water well drilling,oil well drilling,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wire Mesh V Wire Type Wedge Wire Screen

Wire Mesh V WireType Wedge Wire Screen structure, used for filtration, separation and retention media.

It is available in a wide variety of shapes and sizes. From two basic forms, slot tubes and flat screens, almost all shapes and sizes can be developed to fit customers´ requirements.

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.
Wedge wire screens are either flow-out-to-in or flow-in-to-out.

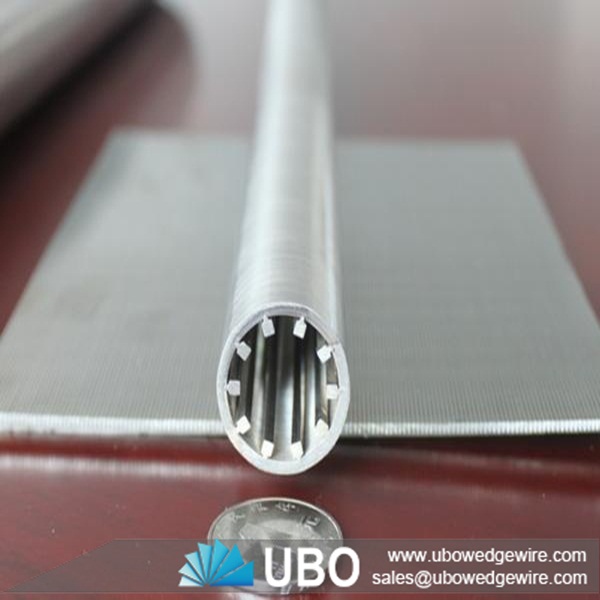

Wire Mesh Wedge Wire Type Wedge Wire Screen

Advantages of Wire Mesh V Wire Type Wedge Wire Screen Pipe

* Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.

* High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.

* Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.

* Low pressure-drop.

* Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.

* High efficiency: continuous slot opening.

* Large flow rate: “v” shaped profile wire ensures a uninterrupted flow.

Application of Wire Mesh V Wire Type Wedge Wire Screen Pipe

It is widely used in petrochemical, refining, water supply system, dirt water treament, hydraulic system, coal mining, and architecture industry.

With stainelss steel material and special welded structure, it can be easy cleaning by mechanical scraping or back flushing, that's why it is so popular among these industries.

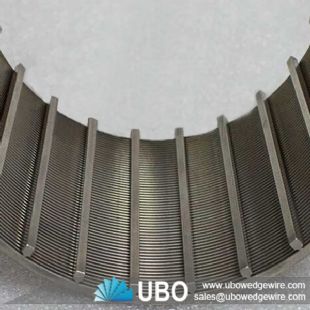

Wire Mesh Wedge Wire Type Wedge Wire Screen

Specifications of Wire Mesh V Wire Type Wedge Wire Screen:

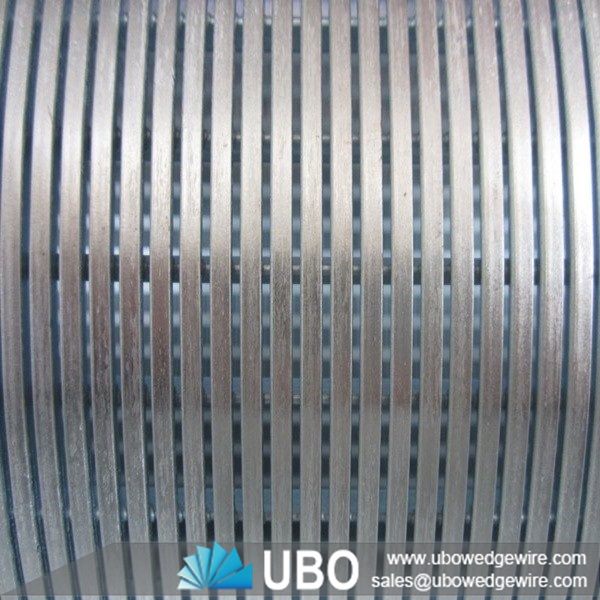

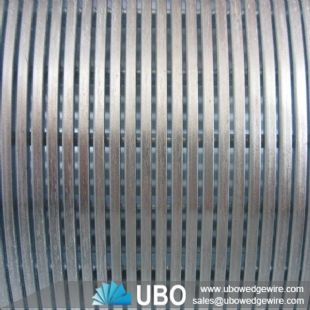

Wire Mesh Wedge Wire Type Wedge Wire Screen

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wire Mesh V Wire Type Wedge Wire Screen:
