Wedge Wire V Wire Johnson Screen Water Well Screen Tube

More Views

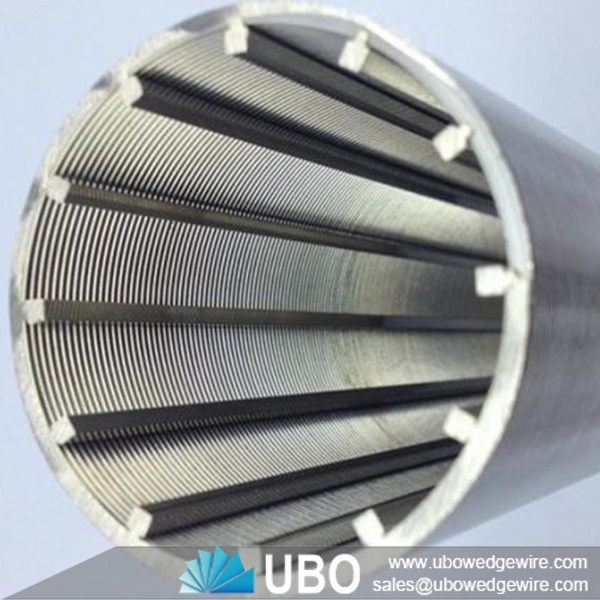

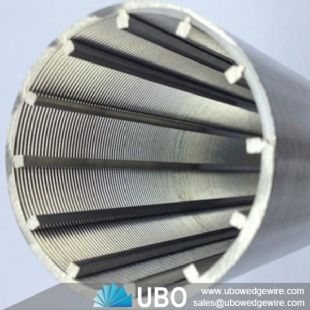

Wedge Wire V Wire Johnson Screen Water Well Screen TubeWedge Wire V Wire Johnson Screen Water Well Screen TubeWedge Wire V Wire Johnson Screen Water Well Screen Tube

Wedge Wire V Wire Johnson Screen Water Well Screen Tube

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:waste water filtration, pulp and paper as well as mineral processing applications

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire V Wire Johnson Screen Water Well Screen Tube

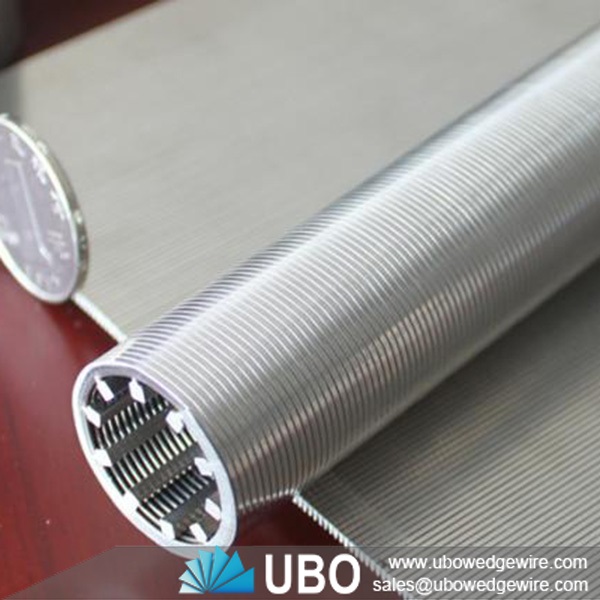

stainless steel wedge wire screen tube is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

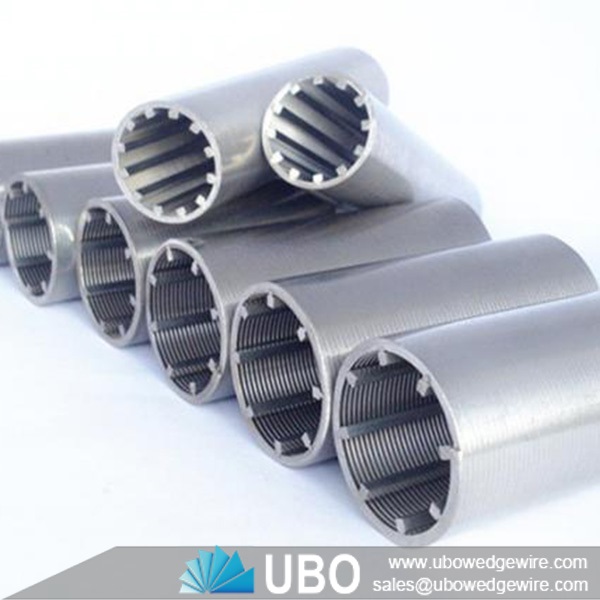

stainless steel Wedge Wire v wedge wire water well screen tube

Applications for Wedge Wire V Wedge Wire Water Well Screen Tube

1) feedstock oil backwash cleaning filter device in the system for petrochemical hydrogenation
2) precious metals catalysts recovery for hydrogenation system
3) Catalytic outer rejection oil automatic backwash cleaning filter system
4) purification of liquid sulphur filter
5) lubricants and heat-conducting oil filter
6) paraffin raw materials and products of filter
7) the rich amine liquid backwash purification filter in the amine desulfurization system
8) high-temperature coal gas, smoke gas and oil gas purification
9) raw materials of paraffin wax and backwash purification filter
10) the gas-liquid mixing pressurized reverse washing efficiency continuous filtration technology

Features for Wedge Wire V Wedge Wire Water Well Screen Tube

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.

Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.

Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

Features for Wedge Wire V Wedge Wire Water Well Screen Tube:

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

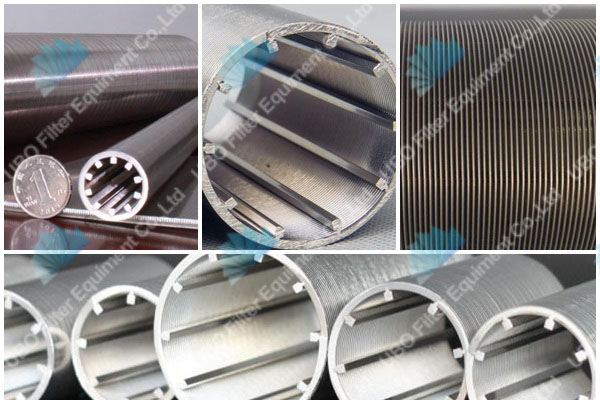

stainless steel Wedge Wire v wedge wire water well screen tube

Specifications of Wedge Wire V Wire Johnson Screen Water Well Screen Tube:

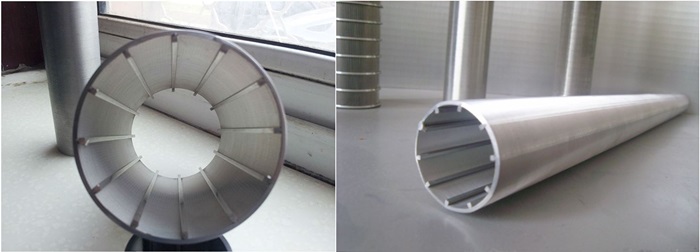

stainless steel Wedge Wire v wedge wire water well screen tube


Stainless steel slot well screen pipe for liquid filtration

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement

Packaging and Transportation of Wedge Wire V Wire Johnson Screen Water Well Screen Tube:

Package: in wood case

Delivery Time: 5-25 days
