Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Sieve Bend Screen for Coal Mining

More Views

Wedge Wire Sieve Bend Screen for Coal MiningWedge Wire Sieve Bend Screen for Coal MiningWedge Wire Sieve Bend Screen for Coal Mining

Wedge Wire Sieve Bend Screen for Coal Mining

Category:Wedge Wire Application
Material:stainless steel302, 304, 316, 316L
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Sieve Bend Screen for Coal Mining

Coal wedge wire sieve bend screen is a filtering screen with certain curvature radius and angle. As required, it can be made of different radii and different angles. Common angle 45 °, 60 °, 90 °, 180 ° and 270°

Advantage of Wedge Wire Sieve Bend Screen for Coal Mining

1) With various kind of model and specifications, this product can meet the requirements of different industries and screening requirements;

2) Easy penetration, wear resistance, corrosion resistance and low operating cost;

3) Simple structure, good dehydration effect and easy maintenance;

4) Welded by automated equipment, the support rod has the feature of excellent quality, high aperture ratio, long using life, high strength, high stiffness and high load capacity;

5) With V-type or T-type wire, the filter is not easy to clogged;

6) Uniform screen slot , smooth surface , high permeability and the screen slot can reach 15 microns.

ApplicationS of Wedge Wire Sieve Bend Screen for Coal Mining

Mainly used for coal preparation and ore dressing plant for material dehydration, desliming, medium draining and classification & recycling of coal slime. It can also be used in paper industry: whitewater fiber recycling, pulp condensation, spray water and seal water purification,the length of fiber grading, fiber / filler separation, white water filtration and sewage treatment.

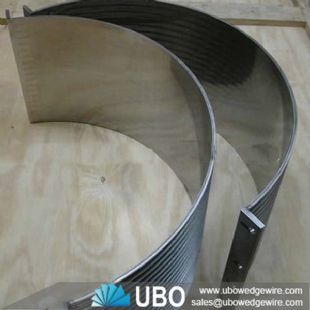

Coal wedge wire sieve bend screen for mining

Specifications of Wedge Wire Sieve Bend Screen for Coal Mining:


Width (mm)


50-4000


Slot (mm)


0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ...


Length (mm)


50-6000


Material


stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc, steel treated with plastic spraying

Radian (º)

13º 15º 30º or as your request


Note


Non-standard offer, can be produced as per request

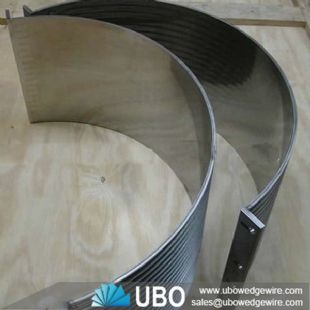

Coal wedge wire sieve bend screen for mining

Packaging and Transportation of Wedge Wire Sieve Bend Screen for Coal Mining:

Packaging

1) All the products are packed in seaworthy wooden cases.

2) Any special requirement for package, please feel free to tell us.
