Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Screen pipe for Paper and Pulp

More Views

Wedge Wire Screen pipe for Paper and PulpWedge Wire Screen pipe for Paper and PulpWedge Wire Screen pipe for Paper and Pulp

Wedge Wire Screen pipe for Paper and Pulp

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge wire screen cylinders
Application:

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen pipe for Paper and Pulp

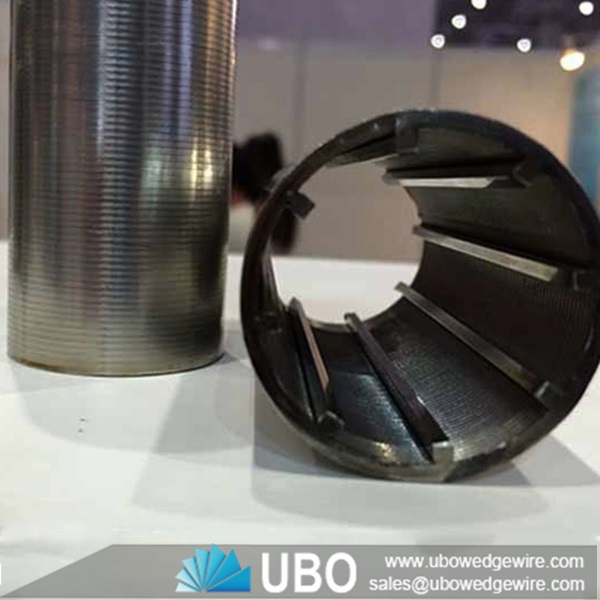

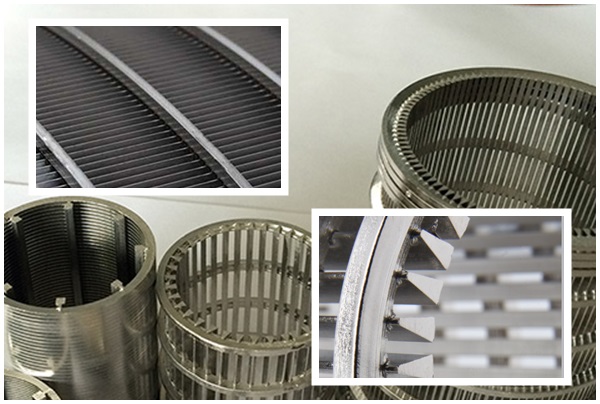

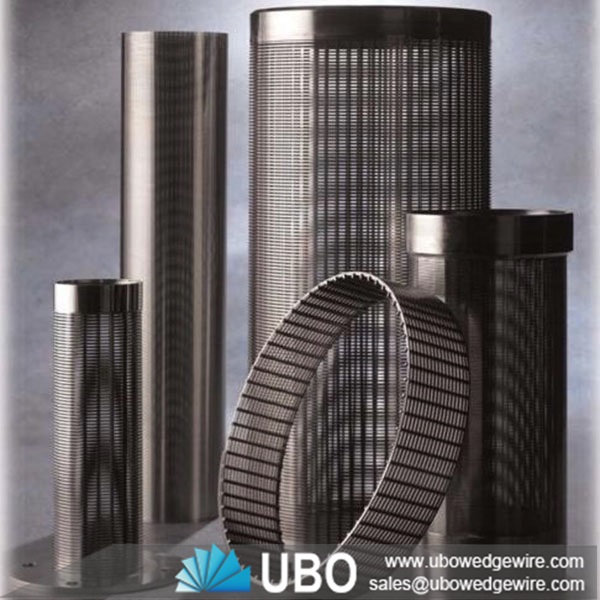

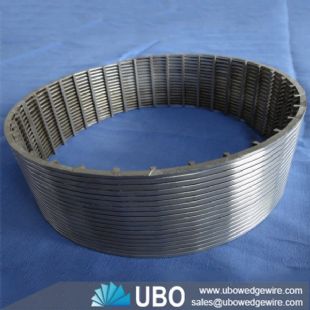

     The welded stainless steel screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resistant, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Wedge Wire Screen pipe for Paper and Pulp

Application for Wedge Wire Screen pipe for Paper and Pulp:

The Johnson screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

Characteristics for Wedge Wire Screen pipe for Paper and Pulp:

1)continuous gaps provide larger aperture ratio
2)Precision gaps dimensions
3)difficult to clog,wear-resistance

Features for Wedge Wire Screen pipe for Paper and Pulp:

1.Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2.Low cost operation Screens with high open area shall favor groundwater infiltration.Abundant water shall reduce the water level down,thus to save energy consumption.
3.Reduce the abrasion of the pump
Under the same condition,high open area can make the speed of groundwater entering into the screen much more slower than any other filtration apparatus,which will avoid sand entering into screen because of high pressure,thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively,groundwater entering into screen with higher open area is much easier than the entering into lower open area screen.The slow water flow shall extend the life span of wells.

Wedge Wire Screen pipe for Paper and Pulp

Specifications of Wedge Wire Screen pipe for Paper and Pulp:

Wedge Wire Screen pipe for Paper and Pulp



1.Materials: stainless steel and low carbon steel, such as 304 302 304L 316 316L Q235, and they can be made according to the customers requirement.
2.Diameter:33-600mm (1-20inch)
3.Slot:0.05,0.1,0.2,0.5,0.75,1,1.5,2mm
4.Length:1-10m(5.8m for the 20ft container)
5.Standard: ISO, API
6.Connection: Welding, Thread (STC,LTC,BTC),Flange
7.Supply capacity:6800m/month contact: xxhdzg16 at live dot cn
8. First class technology, High quality, Competitive price, Fast delivery
Meanwhile, the specification of products can change according to the real condition of the earth.
If you are interested in our product, please contact us for more information.

Packaging and Transportation of Wedge Wire Screen pipe for Paper and Pulp:

Wedge Wire Screen pipe for Paper and Pulp

Wedge Wire Screen pipe for Paper and Pulp
