Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Screen Pipe Pump Guard Screen

More Views

Wedge Wire Screen Pipe Pump Guard ScreenWedge Wire Screen Pipe Pump Guard ScreenWedge Wire Screen Pipe Pump Guard Screen

Wedge Wire Screen Pipe Pump Guard Screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Stainless Steel Pipe
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Pipe Pump Guard Screen

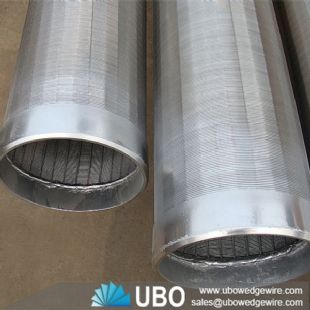

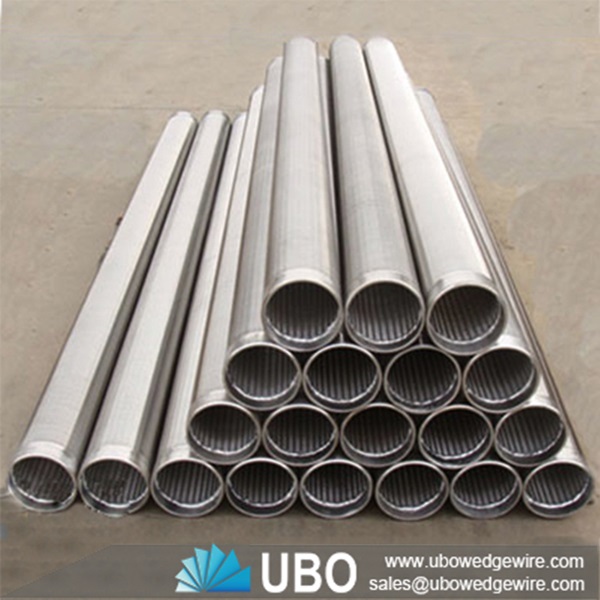

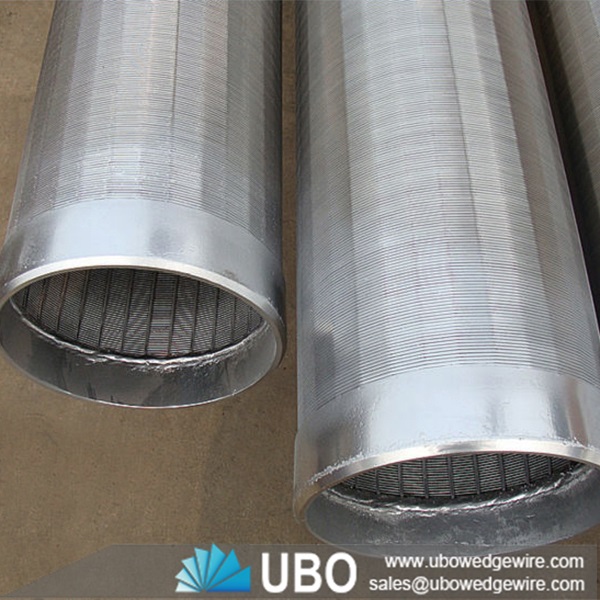

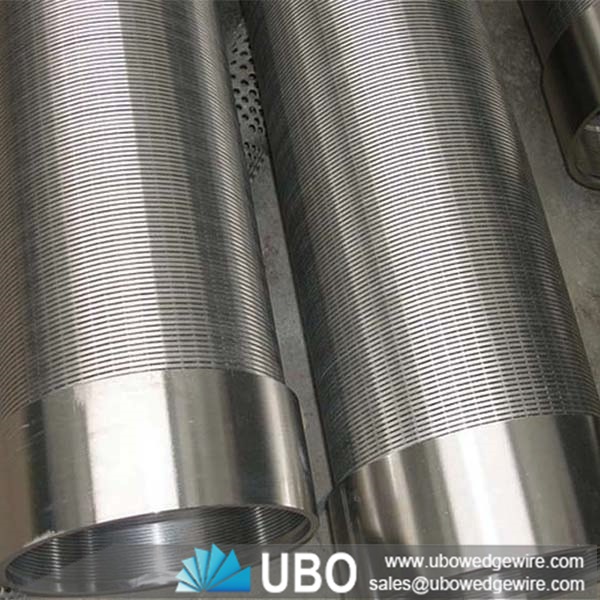

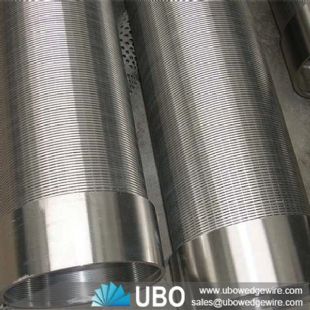

wedge wire Screen Pipe Pump Guard Screen factory is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. The V or wedge shaped profile wire wraps around support rods over the full length of the screen creating a continuous slot opening, So the screen allows the liquid to enter well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.

Application for Wedge Wire Screen Pipe Pump Guard Screen Factory:

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

Advantages for Wedge Wire Screen Pipe Pump Guard Screen Factory:

Reduced consumption of treated water for backwashin
Savings in filter height and volume
No maintenance, repair or shutdown
No need for suspended filter floor

Features for Wedge Wire Screen Pipe Pump Guard Screen Factory:

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
4) Extend the life span of well.

 wedge wire Screen Pipe Pump Guard Screen factory

Specifications of Wedge Wire Screen Pipe Pump Guard Screen:

 wedge wire Screen Pipe Pump Guard Screen factory

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Screen Pipe Pump Guard Screen:

Package: in wood case

Delivery Time: 5-25 days
