Wedge Wire Basket Slotted Pressure Screen Basket

More Views

Wedge Wire Basket Slotted Pressure Screen BasketWedge Wire Basket Slotted Pressure Screen BasketWedge Wire Basket Slotted Pressure Screen Basket

Wedge Wire Basket Slotted Pressure Screen Basket

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:filter cartridge
Application:water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

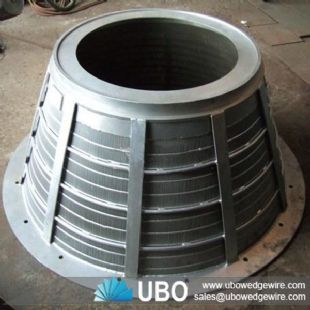

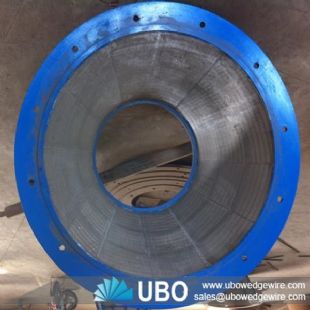

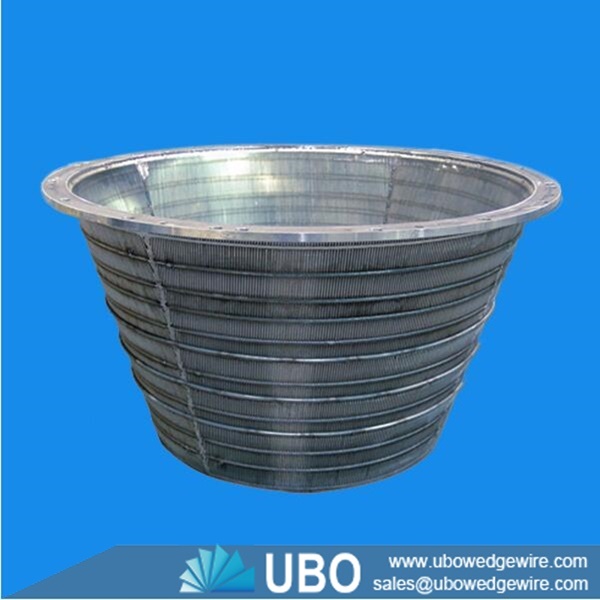

Details of Wedge Wire Basket Slotted Pressure Screen Basket

    Wedge wire screen basket is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket.
    Similar to the wedge wire screen cylinder and wedge wire screen tube, the wedge wire screen basket is also manufactured from V-shaped profile wires and various support rod. The support rod are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines.

Application for Wedge Wire Basket Slotted Pressure Screen Basket:

Screen basket is mainly used in centrifuge dewatering, widely used in coal, chemical, and metallurgical industries. Screen basket is a key part of centrifuge .It is high-speed rotating parts. When work, the basket should not only bear the vibration load, but also bear the impact of coal and water. So it requires relatively high strength and precision.

Features for Wedge Wire Basket Slotted Pressure Screen Basket:

Firm structure.
Good mechanical property.
High strength.
High load capacity.
Outstanding filtering performance.
Corrosion and rust resistance.
Wear resistance.
Temperature resistance.
Low maintenance.
Durable and long service life.



Wedge Wire Basket Slotted Pressure Screen Basket

Specifications of Wedge Wire Basket Slotted Pressure Screen Basket:

Wedge Wire Basket Slotted Pressure Screen Basket



  Triangle wire size:

Triangle wire Width 1.5mm 2.2mm 2.8mm 3.1mm 3.4mm 5.0mm
height 4.0mm 4.5mm 5.0mm 6.0mm 7.5mm 10.0mm
Slot 0.10mm-10mm

Support rod size:



Support rod Width 1.0mm 1.5mm 1.8mm 2.7mm 3.2mm 3.6mm
height 2.0mm 2.5mm 3.0mm 4.2mm 5.3mm 5.7mm
Slot 0.2mm-5mm

Packaging and Transportation of Wedge Wire Basket Slotted Pressure Screen Basket:

Wedge Wire Basket Slotted Pressure Screen Basket

Wedge Wire Basket Slotted Pressure Screen Basket
