Water Treatment Wedge Wire Drum Screen

More Views

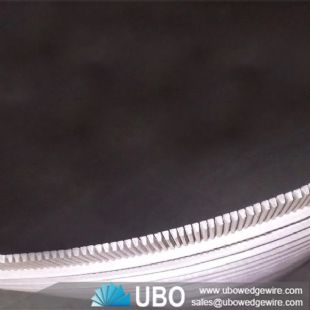

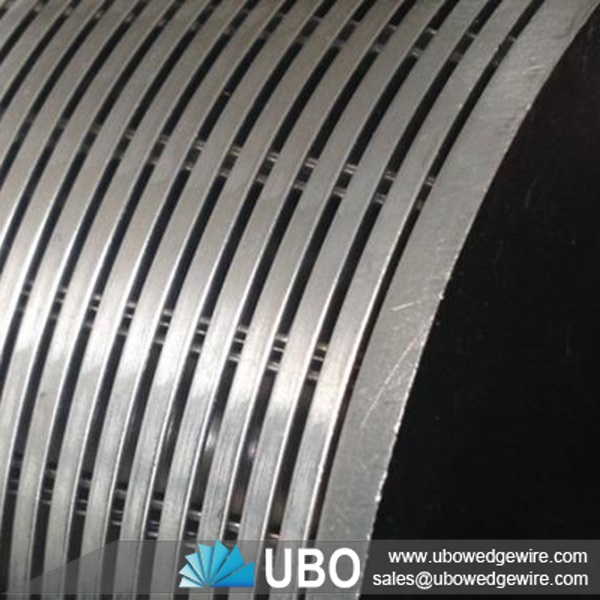

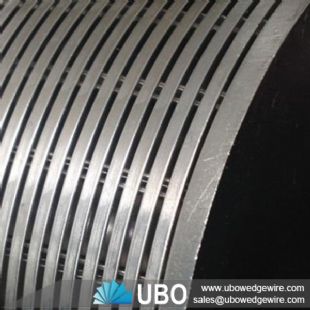

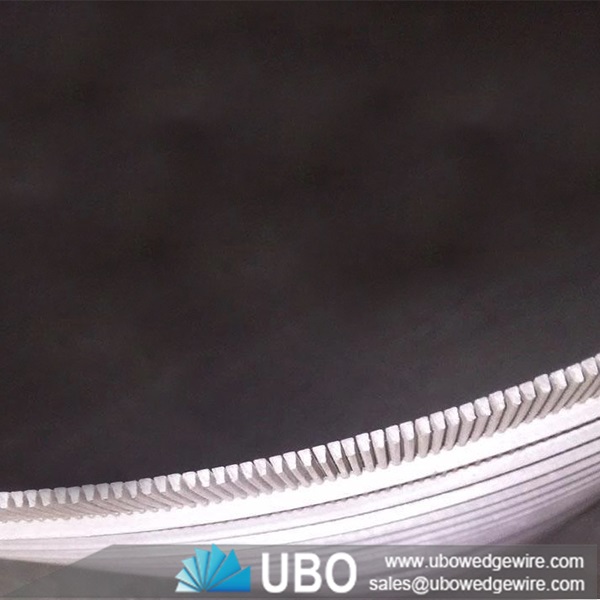

Water Treatment Wedge Wire Drum ScreenWater Treatment Wedge Wire Drum ScreenWater Treatment Wedge Wire Drum Screen

Water Treatment Wedge Wire Drum Screen

Category:Wedge Wire Application
Material:Stainless steel 302,304,304L,316,316L
Properties:Wedge Wire Drum Screen
Application:the water-treating equipment, the environmental protection, the sea water transforms into the industrial water

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water Treatment Wedge Wire Drum Screen

    The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Water Treatment Wedge Wire Drum Screen

Application of Water Treatment Wedge Wire Drum Screen :

1.can be parts of deep well pumps or submersible pumps
2. can be used for water treatment, environment protection, the seawater desalination, water softening treatment,oil and chemical processing, terminal filtration for petrolic products,filtration for chemical acid and soda liquid, for alcohol and other organic

Features for Water Treatment Wedge Wire Drum Screen:

1. Water Treatment Wedge Wire Drum Screen are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods.
2.The world advanced all-weld technology is used with each intersecting point of these wire fusion welded, which creates the robust construction and excellent mechanical performance.
3.The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
The slots can be changed and manufactured according to different strata.

Advantages for Water Treatment Wedge Wire Drum Screen:

1. Non-clogging construction.
2. Large Filtering Area.
3.Increase the water yield and prolong service time of the well.
4.Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.
5.Excellent construction strength.
6.Specifications and end connections of wedge wire screens can me fabricated according to customers’ requirements.

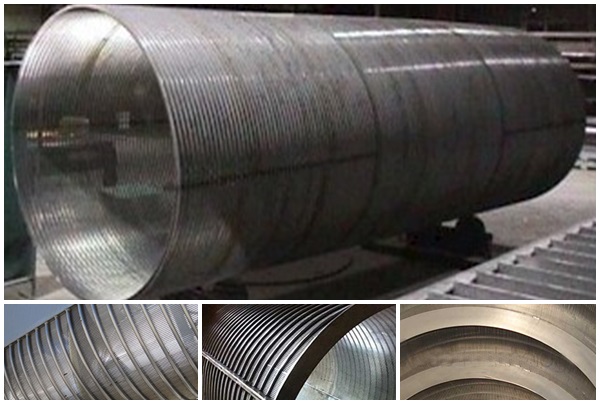

Water Treatment Wedge Wire Drum Screen

Specifications of Water Treatment Wedge Wire Drum Screen:

Water Treatment Wedge Wire Drum Screen



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Water Treatment Wedge Wire Drum Screen:

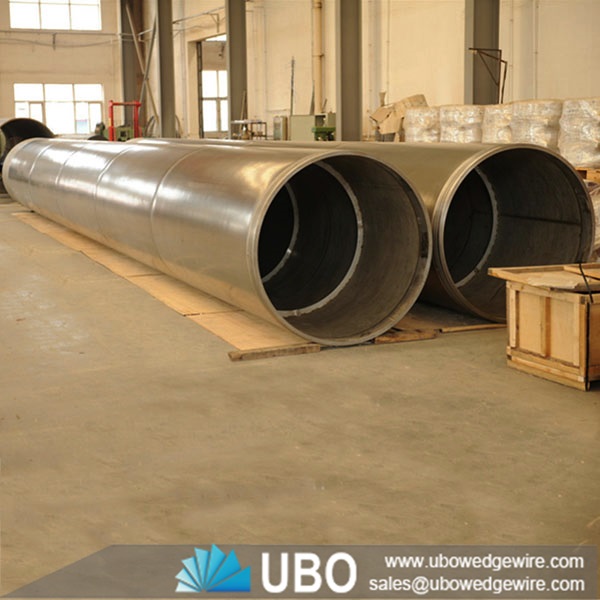

Water Treatment Wedge Wire Drum Screen
