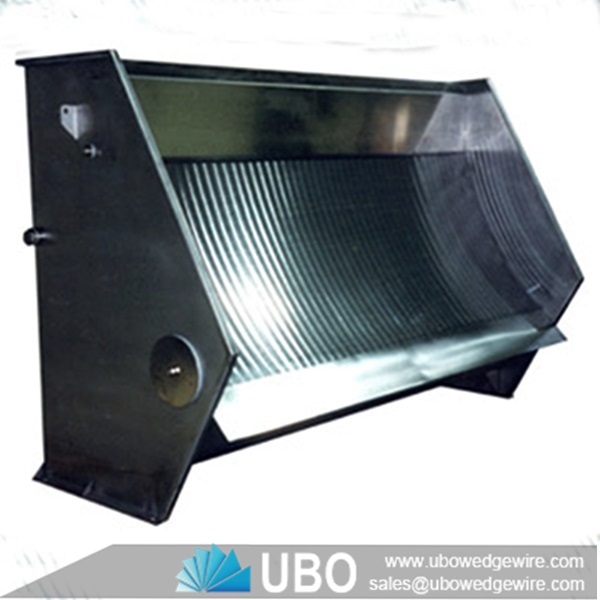

Stainless steel low carbon wedge wire sieve bend screen panel

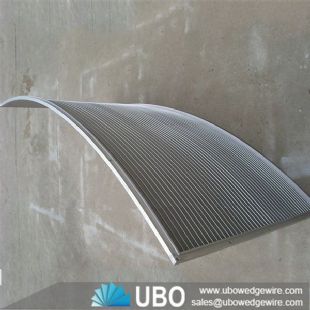

More Views

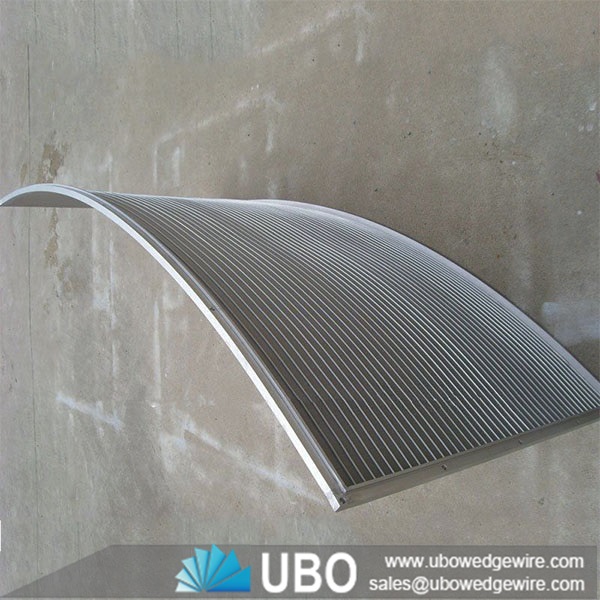

Stainless steel low carbon wedge wire sieve bend screen panelStainless steel low carbon wedge wire sieve bend screen panelStainless steel low carbon wedge wire sieve bend screen panel

Stainless steel low carbon wedge wire sieve bend screen panel

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Screen
Application:wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel low carbon wedge wire sieve bend screen panel

Welded wire sieve bend screen panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Applications for Stainless steel low carbon wedge wire sieve bend screen panel:

Stainless steel wire mesh wedge wire screen is widely used for wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarete, sugar, foodstuff, noise-sliencer, environmetal protection, agriculral machine, chemical industry and pharmacy industry.

Features for Stainless steel low carbon wedge wire sieve bend screen panel:

Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Features for Stainless steel low carbon wedge wire sieve bend screen panel:

1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

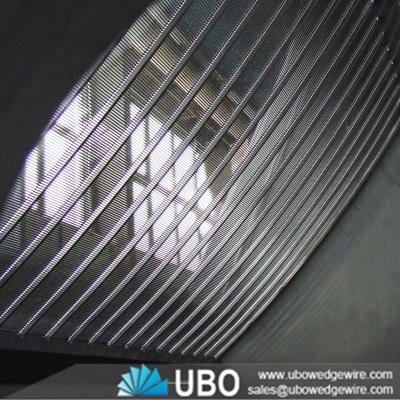

Stainless steel low carbon wedge wire sieve bend screen panel

Specifications of Stainless steel low carbon wedge wire sieve bend screen panel:

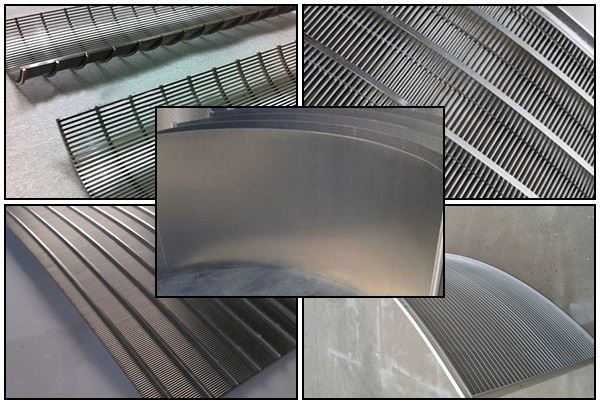

Stainless steel low carbon wedge wire sieve bend screen panel


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

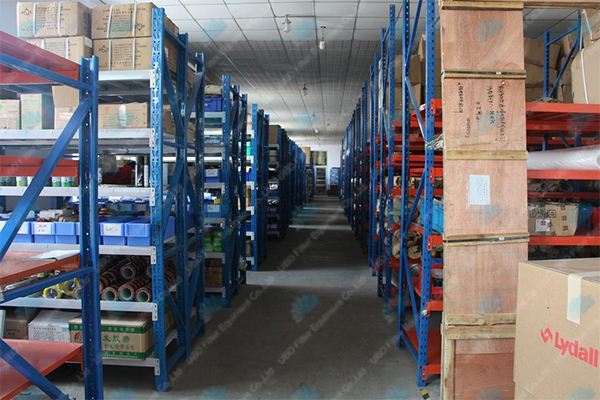

Packaging and Transportation of Stainless steel low carbon wedge wire sieve bend screen panel:

Stainless steel low carbon wedge wire sieve bend screen panel



Stainless steel low carbon wedge wire sieve bend screen panel
