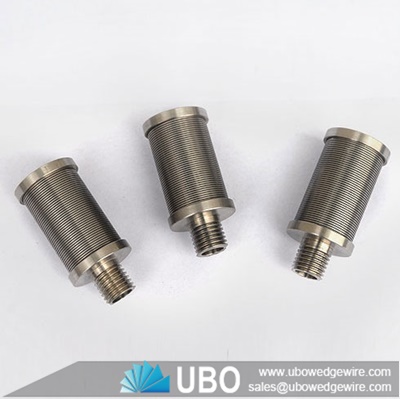

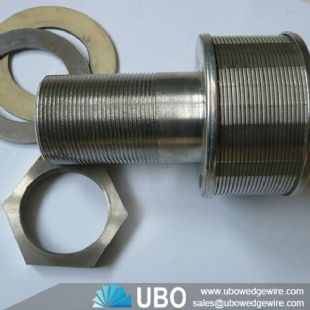

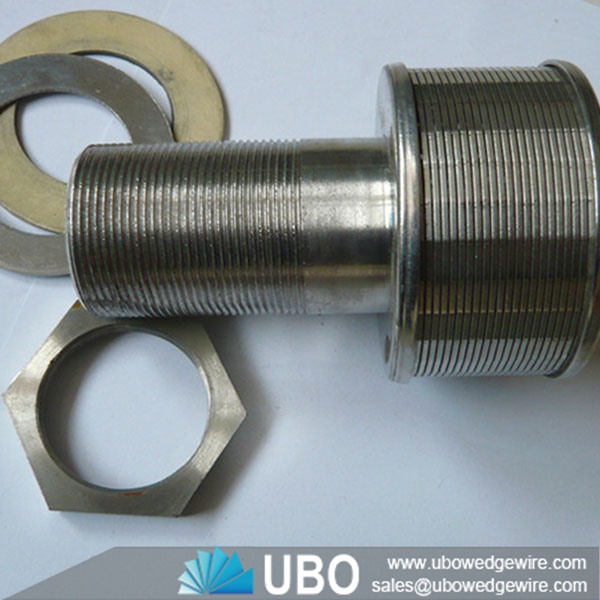

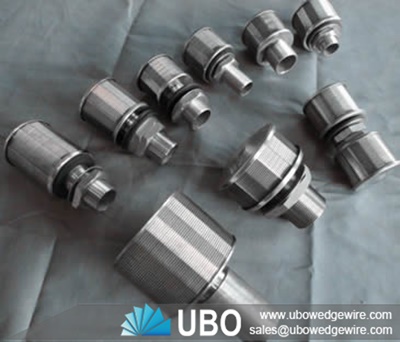

Stainless steel Wedge Wire wedge wire cap screen

More Views

Stainless steel Wedge Wire wedge wire cap screenStainless steel Wedge Wire wedge wire cap screenStainless steel Wedge Wire wedge wire cap screen

Stainless steel Wedge Wire wedge wire cap screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter Nozzle
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel Wedge Wire wedge wire cap screen

Wedge Wire Screen Wedge Wire Metal Mesh Strainer Nozzle around the plate water cap for chemical industry is made up of stainles steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.

Wedge Wire Screen Wedge Wire Metal Mesh Strainer Nozzle is a slot tube. Nozzles are closed on one side and have a threaded fitting on the other. The flow is always out to in. Standard nozzles are 50 mm in diameter, all having a flow-out-to-in (FOTI) filtration.

Usages for Stainless Steel Wedge Wire Wedge Wire Screen Nozzle:

Stainless Steel wedge wire water treatment filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Features for Stainless Steel Wedge Wire Wedge Wire Screen Nozzle:

-- Reduced costs, since wedge wire screens have a very long life.

-- Greater resistance to stresses of different pressure and temperature.

-- Maximum effective flow area & operating efficiency is maintained

-- Costly downtime for cleaning plugged screens is minimize.

Advantages for Stainless Steel Wedge Wire Wedge Wire Screen Nozzle:

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Technology for Stainless steel Wedge Wire wedge wire cap screen:

Manfre introduce advanced korea technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.

Stainless steel Wedge Wire wedge wire cap screen

Specifications of Stainless steel Wedge Wire wedge wire cap screen:

Stainless steel Wedge Wire wedge wire cap screen



Catalogue Item

Slots  mm

Thread

ΦAmm

Thread length  L1mm
Shaft  L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5...
