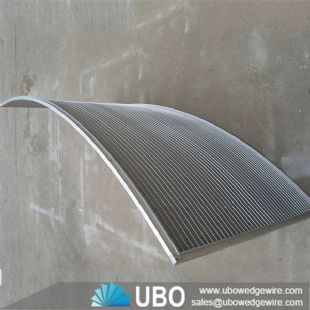

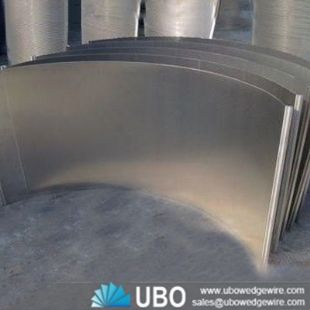

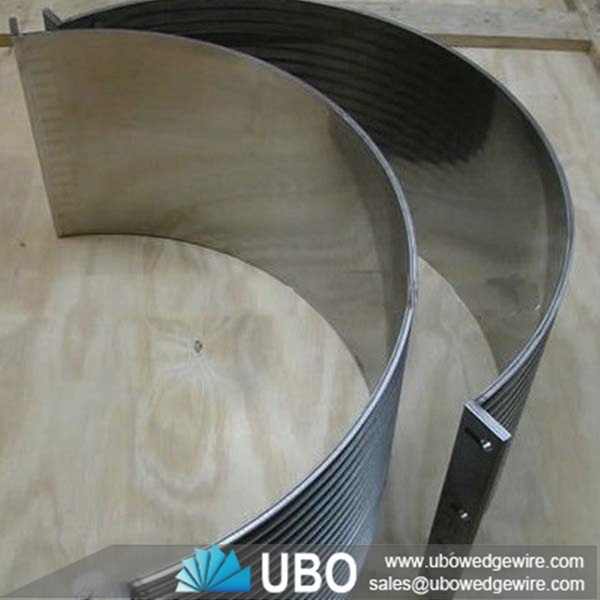

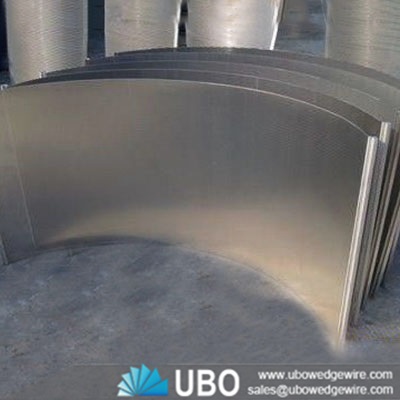

Stainless steel 304 Water Wedge Wire screen Sieve bend screen

More Views

Stainless steel 304 Water Wedge Wire screen Sieve bend screenStainless steel 304 Water Wedge Wire screen Sieve bend screenStainless steel 304 Water Wedge Wire screen Sieve bend screen

Stainless steel 304 Water Wedge Wire screen Sieve bend screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen
Application:water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel 304 Water Wedge Wire screen Sieve bend screen

Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.


A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Applications for Stainless Steel 304 Water Wedge Wire Screen Sieve Bend Screen:

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

Features for Stainless Steel 304 Water Wedge Wire Screen Sieve Bend Screen:

Energy Efficient: operates with no moving parts and with no input energy.

Space Efficient: treats up to 122 litres per second per square metre.

Quiet Operation: no mechanical or electrical vibrations.

Accurate Sizing: can be used for sizing solid particles down to 0.2mm (0.008").

Low Maintenance: resists clogging by near-size particles, and the all stainless steel construction ensures a long, corrosion-free installation.

Easy Screen Replacementa typical screen can be replaced in 10 minutes with no tools.

Stainless steel 304 Water Wedge Wire screen Sieve bend screen

Stainless steel 304 Water Wedge Wire screen Sieve bend screen

Specifications of Stainless steel 304 Water Wedge Wire screen Sieve bend screen:

Stainless steel 304 Water Wedge Wire screen Sieve bend screen


Surface Profile

W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5


Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0


Packaging and Transportation of Stainless steel 304 Water Wedge Wire screen Sieve bend screen:

Stainless steel 304 Water Wedge Wire screen Sieve bend screen

Stainless steel 304 Water Wedge Wire screen Sieve bend screen

Stainless steel 304 Water Wedge Wire screen Sieve bend screen
