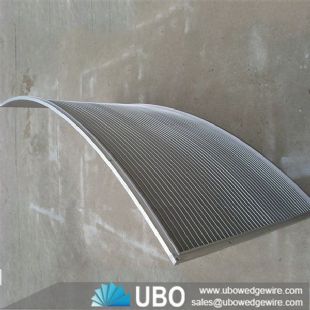

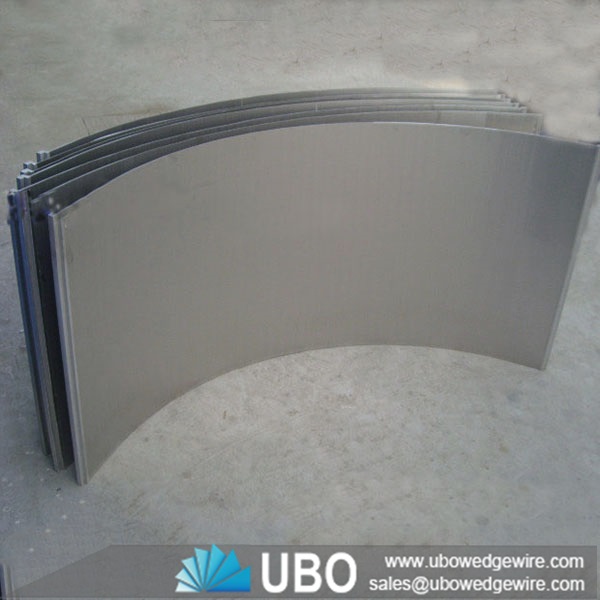

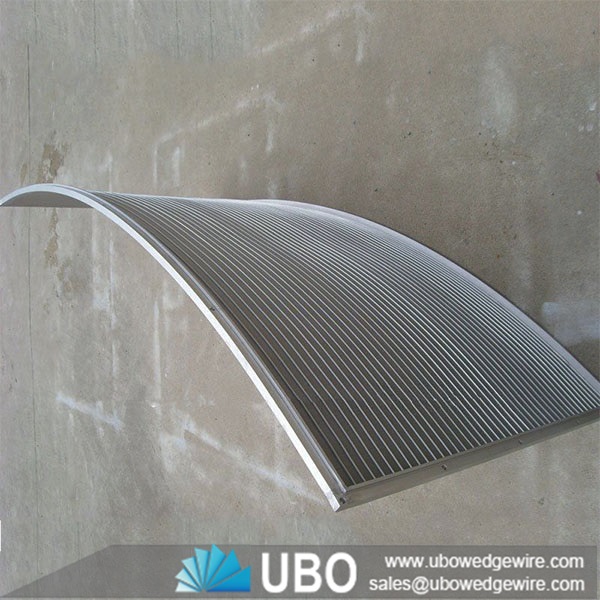

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screen

More Views

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screenStainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screenStainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screen

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screen

Category:Wedge Wire Application
Material:stainless steel
Properties:Wedge Wire Sieve bend screen
Application:mining, coal separation, drilling, fertilizer, food, environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screen

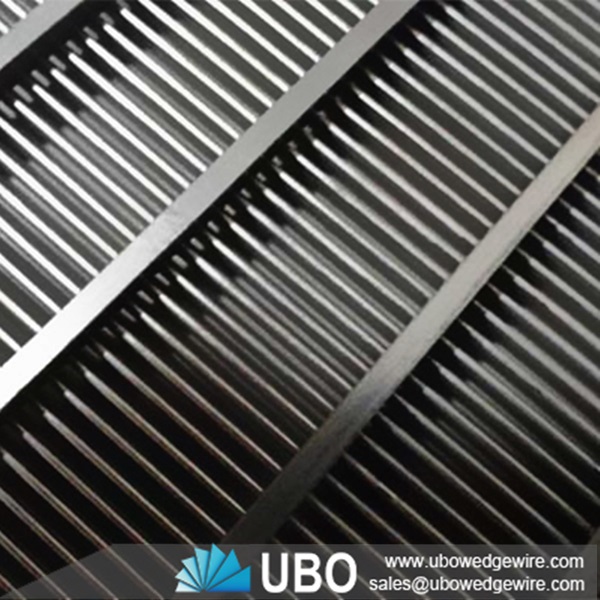

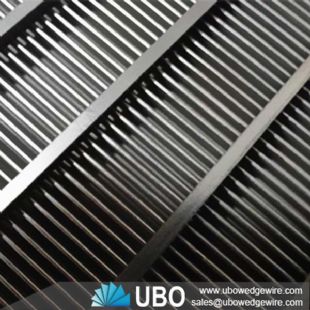

Pressure bend sieve is a kind of high efficient sieve, relying on pressure screening the wet, which is composed of screen surface, sieve box, feeding device and outlet. The screen surface is the key component. It is made of stainless steel shape screen.

Application for Stainless Steel 304 Wastewater Treatment Wedge Wire Sieve Bend Screen:

mining, coal separation, drilling, fertilizer, food, environmental protection, metallurgy, medicine and other industries

Advantages for Stainless Steel 304 Wastewater Treatment Wedge Wire Sieve Bend Screen:

1) High opening rate, big filter area, fast filtering speed.

2) Good corrosion resistance and wear resistance.

3) Low using cost and long life span

4) Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.

Features for Stainless Steel 304 Wastewater Treatment Wedge Wire Sieve Bend Screen:

Energy efficient--operate with no moving parts and with no energy input

Space effficient-- treats up to 122 liters per second per square meter of floor space

Quite operation--no moving parts mean no mechanical or electrial vibrations

Accurate size-- can be used for sizing solid particles down to 0.2mm

Working principle for Stainless Steel 304 Wastewater Treatment Wedge Wire Sieve Bend Screen:

When operating the wet material ejected from the nozzle under pressure from 0.2 to 0.4 Mpa, high ejection speed produces tangential force, triangular mesh wedge forms blade to scrap the material into a thin layer, then the water and fine material evenly dispersed,and the entire screen surface get essential self-cleaning. The material on the sieve discharged from the taphole,The material under the sieve get into the stock inlet. As it adopted the multistage countercurrent washing process, it can effectively improve powder extraction rate and starch quality, having an obvious economic benefits. It becomes an replacement of the screening process in starch industry.



Specifications of Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screen:

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screenStainless steel 304 Wastewater Treatment Wedge Wire Sieve bend screen



Surface profiles
Support profiles
Min.diam. in mm
Min. slot width in mm
10S
Q25
21
0.10
11S
22S or Q35
23
0.03
12S
22S
30
0.05
12S
Q25
23
0.03
12S
Q35
30
0.05
18S
22S or Q35
30
0.05
18S
Q25
25
0.03
18S
D45
300
0.20
18S
10x3
300
0.20
22S
22S or Q35
45
0.10
22S
D45 or 10x3 or 25x3
300
0.20
28S
Q35
215
0.20
28S
D45 or 10x3 or 25x3
300
0.20
34S
Q35
300
0.20
34S
D45
300
0.20
34S
10x3 or 25x3
300
0.20
42S
Q35 or D45
300
0.20
42S
10x3 or 25x3
300
0.20



Diameters:

Outside diameter in mm
Number of support profiles
30
8
45
10
57
12
70
18
85
18
97
20
110
24
137
30
164
36
215
48
268
48
305
40
380
48
