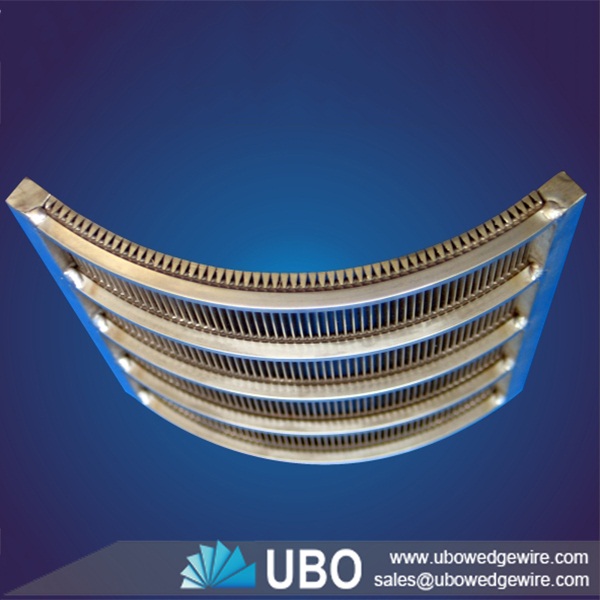

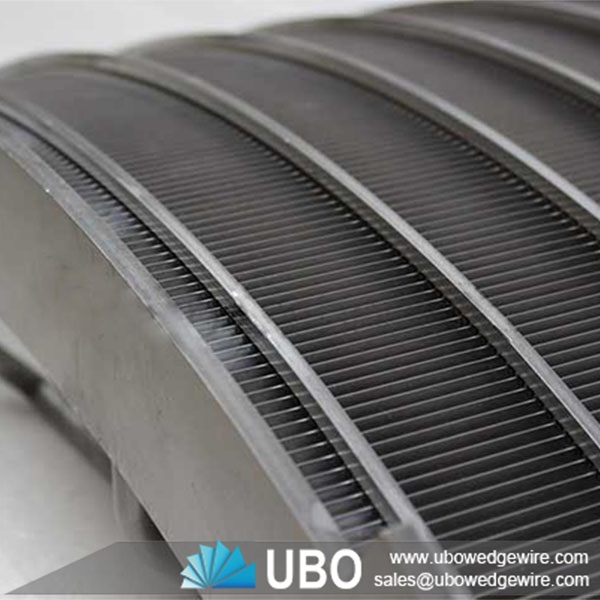

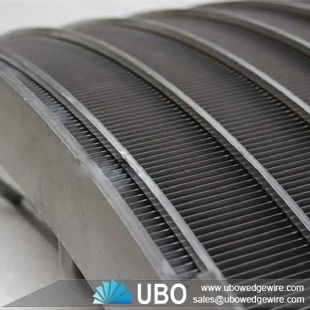

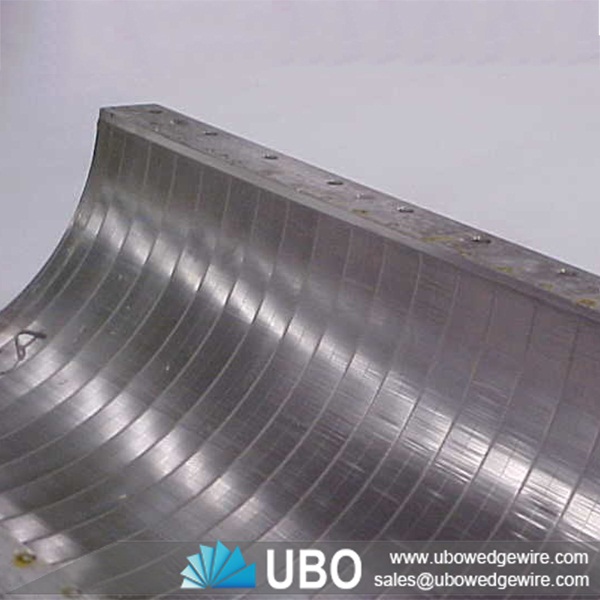

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend

More Views

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bendStainless steel 304 Wastewater Treatment Wedge Wire Sieve bendStainless steel 304 Wastewater Treatment Wedge Wire Sieve bend

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend

Category:Wedge Wire Application
Material:stainless steel
Properties:sieve bend screen
Application:Cement, and Industrial & Urban Effluent Treatment,pre-filter in urban & industrial waste treatment plants

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend

     Sieve plate is easy to penetrate, having good wear-resistant and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Features for Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend

Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Application for Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend:

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load. Widely used for fiber removal in Starch industry.

Advantages for Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend:

1. High opening rate, big filter area, fast filtering speed.
2. Good corrosion resistance and wear resistance.
3. Low using cost and long life span
4. Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend

Specifications of Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend:

Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-



Profile Wire








Width(mm)
1.5
1.5
2.3
2.3
1.8
3.0
3.7
3.3
Height(mm)
2.2
2.5
2.7
3.6
4.3
4.7
5.6
6.3



Support Rod





Round
Width(mm)
2.3
2.3
3.0
3.7
3.3
Ø2.5~Ø5mm
Height(mm)
2.7
3.6
4.7
5.6
6.3

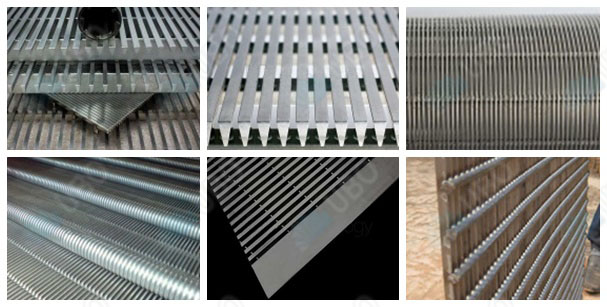

Drawing Styles for Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend:

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend

Packaging and Transportation of Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend:

Stainless steel 304 Wastewater Treatment Wedge Wire Sieve bend
