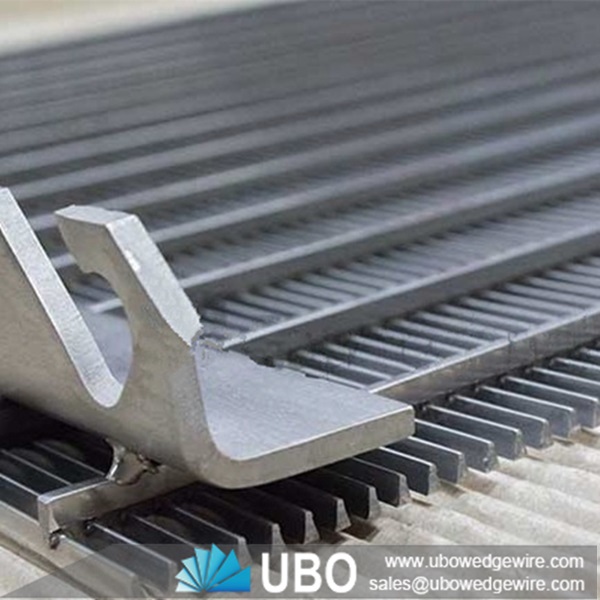

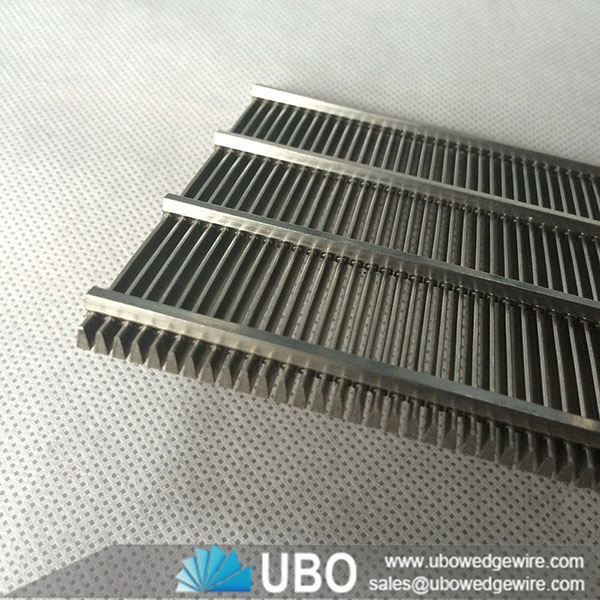

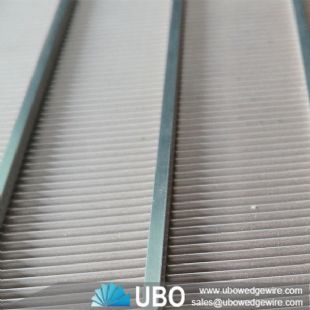

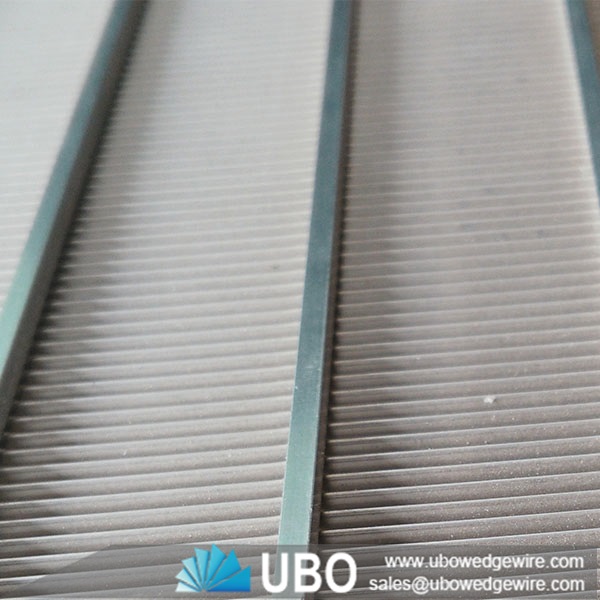

Stainless Steel Wedge Wire Square Sieve Screen

More Views

Stainless Steel Wedge Wire Square Sieve ScreenStainless Steel Wedge Wire Square Sieve ScreenStainless Steel Wedge Wire Square Sieve Screen

Stainless Steel Wedge Wire Square Sieve Screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Square Sieve Screen

Stainless Steel Wedge Wire Screen is a screening filter for the structural elements of the metal mesh. More widely used in industry screening, filtration, dehydration, and other operating Desliming. It has high strength, stiffness and load-bearing capacity, can make various shapes of the rigid screening filter.

Application for Stainless Steel Wedge Wire Square Sieve Screen:

The screen widely used in beverage/ beer filtration, papermaking industry, industrial waste water treatment, oil, water desalination, etc. This slot tube is the most widely used in all kinds of filter screens

Construction for Stainless Steel Wedge Wire Square Sieve Screen:

1) We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.

2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.

3) After work for a period of time, the filter can be back flush.It can use for many times.

Advantage for Stainless Steel Wedge Wire Square Sieve Screen:

-- A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

-- A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

-- Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

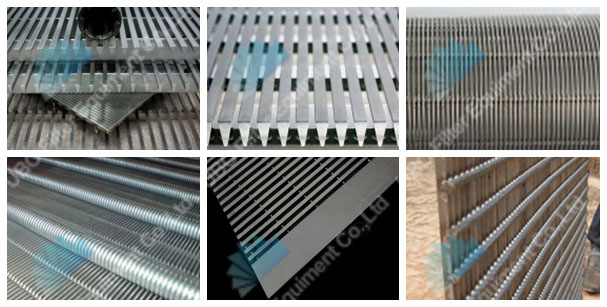

Stainless Steel Wedge Wire Square Sieve Screen

Specifications of Stainless Steel Wedge Wire Square Sieve Screen:

Stainless Steel Wedge Wire Square Sieve Screen



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End Connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel Wedge Wire Square Sieve Screen:

Package: in wood case

Delivery Time: 5-25 days
