Stainless Steel V Wire Screen Deck

More Views

Stainless Steel V Wire Screen DeckStainless Steel V Wire Screen DeckStainless Steel V Wire Screen Deck

Stainless Steel V Wire Screen Deck

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel V Wire Screen Deck

Stainless Steel Wedge Wire Screen is widely used in industry screening, filtration, dehydration, and other operating Desliming. It has high strength, stiffness and load-bearing capacity, can make various shapes of the rigid screening filte.



Application for Stainless Steel V Wire Screen Deck:



Flat wedge wire screens are used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centers or malls. It can also solve the problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.



Advantage for Stainless Steel V Wire Screen Deck:



A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.



Features for Stainless Steel V Wire Screen Deck:



Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.

Energy Efficient - operates with no moving parts and with no energy input.

Space Efficient - treats up to 122 litres per second per square metre of floor space.

Quiet Operation - no moving parts means no mechanical or electrical vibrations.

Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").

Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.

Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

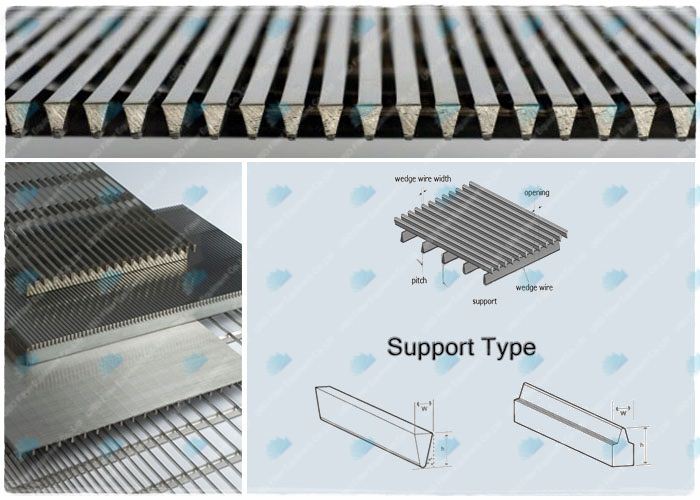

Stainless Steel V wire screen deck

Specifications of Stainless Steel V Wire Screen Deck:

.Stainless Steel V wire screen deck


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End Connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel V Wire Screen Deck:

Stainless Steel V wire screen deck
