Stainless Steel V Slot Well Wedge Wire Screen Basket

More Views

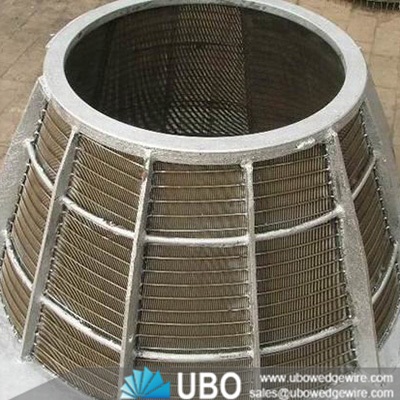

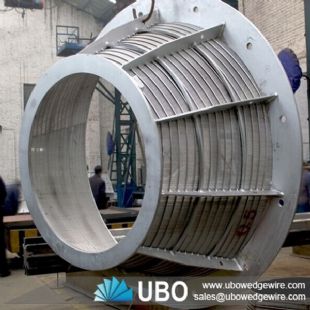

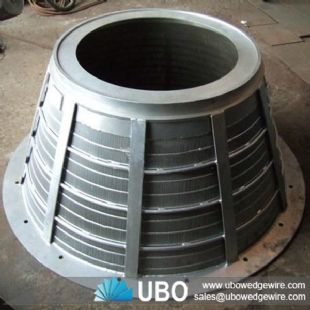

Stainless Steel V Slot Well Wedge Wire Screen BasketStainless Steel V Slot Well Wedge Wire Screen BasketStainless Steel V Slot Well Wedge Wire Screen Basket

Stainless Steel V Slot Well Wedge Wire Screen Basket

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen
Application:water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel V Slot Well Wedge Wire Screen Basket

Similar to the wedge wire screen cylinder and wedge wire screen tube, the wedge wire screen basket is also manufactured from V shaped profile wires and various support rod. The support rod are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines.

Wedge wire screen basket is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket.

Stainless Steel V Slot Well Wedge Wire Screen Basket

Applications for Stainless Steel V Slot Well Wedge Wire Screen Basket:

Stainless steel screen basket is mainly used in centrifuge dewatering, widely used in coal, chemical, and metallurgical industries. Screen basket is a key part of centrifuge. It is high-speed rotating parts. When work, the basket should not only bear the vibration load, but also bear the impact of coal and water. So it requires relatively high strength and precision.

Features for Stainless Steel V Slot Well Wedge Wire Screen Basket:

-- Firm structure.

-- Good mechanical property.

-- High strength.

-- High load capacity.

-- Outstanding filtering performance.

-- Corrosion and rust resistance.

Features for Stainless Steel V Slot Well Wedge Wire Screen Basket:

1) very precise slots for fine screening

2) high strength, all welded structure

3) non clogging slots

4) low maintenance

5) custom made

6) Wear resistance.

7) Temperature resistance.

8) Low maintenance.

9) Durable and long service life.

Specifications of Stainless Steel V Slot Well Wedge Wire Screen Basket:

Stainless Steel V Slot Well Wedge Wire Screen Basket


Model
diameter (mm)
angle (°)
slot (mm)
WZ-1200
1300
20
0.3,0.4,0.5
H-900
900
15
0.3,0.4,0.5
H-1000
1000
15
0.3,0.4,0.5
HSG-1100
1100
13
0.35,0.4
HSG-1200
1200
13
0.3,0.4,0.5
HSG-1300 HES1300
1300
13
0.3,0.4,0.5

HSG-1400  HSG-1500

1500
13
0.45,0.5

Packaging and Transportation of Stainless Steel V Slot Well Wedge Wire Screen Basket:

Stainless Steel V Slot Well Wedge Wire Screen Basket
