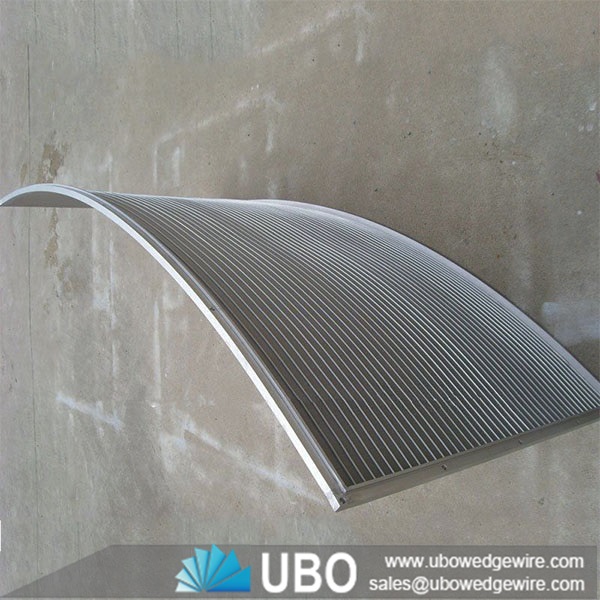

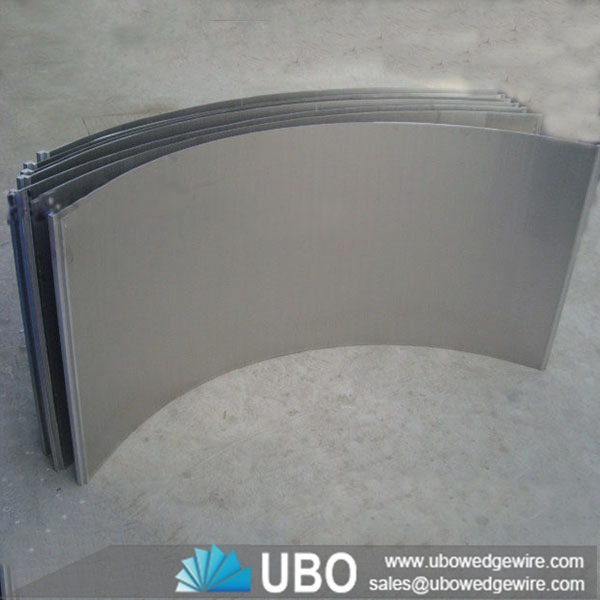

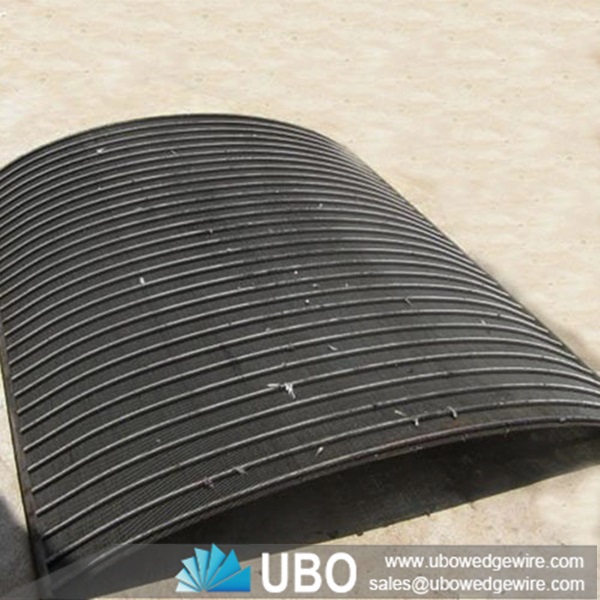

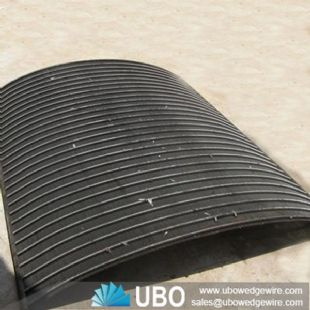

Stainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend Screen

More Views

Stainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend ScreenStainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend ScreenStainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend Screen

Stainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:stainless steel wedge wire
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend Screen

Continuous-Slot Vee Wire Screen is manufactured with V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods.

Each intersecting point of these wires if fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.

Application for Wastewater Treatment Wedge Wire screen Sieve Bend Screen:

Used for water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Advantage for Wastewater Treatment Wedge Wire screen Sieve Bend Screen:

Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells, avoids clogging and ensures an uninterrupted flow.Abundant water shall reduce the water level’s down, thus to save energy consumption


Screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Reduce the abrasion of the pump.Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.


Extend the life span of wells.Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

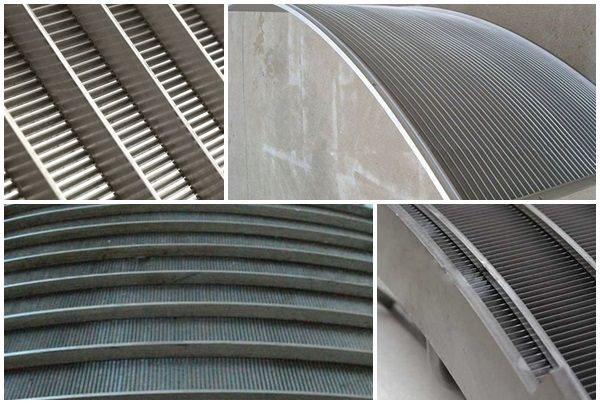

Features for Wastewater Treatment Wedge Wire Screen Sieve Bend Screen:

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

 Stainless steel 304 Wastewater Treatment Wedge Wire screen Sieve bend screen

Specifications of Stainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend Screen:

 Stainless steel 304 Wastewater Treatment Wedge Wire screen Sieve bend screen

Basepipe OD (in)
Perforations per foot
Basepipe Hole Size (in)
Open Area of Basepipe Holes (in2/ft)
Wrap Wire Size Keystone (in)
Rib Wire Size Round (in)
Maximum OD (in)
1.05
54
0.312
4.14
0.09*0.09
0.125
1.489
1.315
66
0.312
5.06
0.09*0.09
0.125
1.726
1.66
78
0.312
5.98
0.09*0.09
0.125
2.126
1.90
42
0.375
4.63
0.09*0.09
0.125
2.387
2.063
42
0.375
4.63
0.09*0.09
0.125
2.55
2.375
54
0.375
5.96
0.09*0.09
0.125
2.86
2.875
66
0.375
7.28
0.09*0.09
0.125
3.362
3.25
78
0.375
8.61
0.09*0.09
0.125
3.737
3.50
78
0.375
8.61
0.09*0.09
0.125
3.987
4.00
90
0.375
9.94
0.09*0.09
0.125
4.487
4.50
102
0.375
11.26
0.09*0.09
0.125
5.001
5.00
114
0.375
12.59
0.09*0.09
0.125
5.506

Packaging and Transportation of Stainless Steel 304 Wastewater Treatment Wedge Wire Screen Sieve Bend Screen:

Package: in wood case
Delivery Time: 5-25 days
