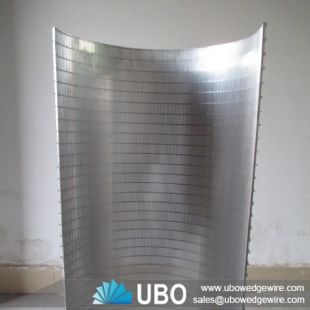

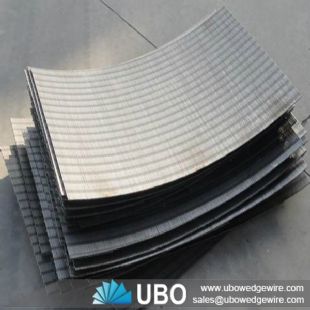

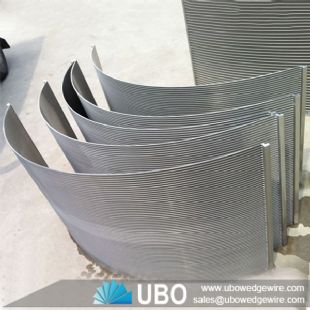

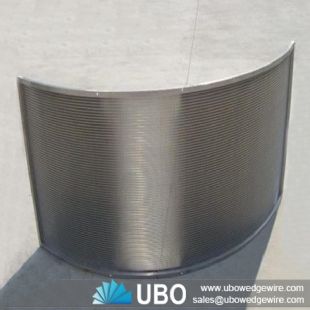

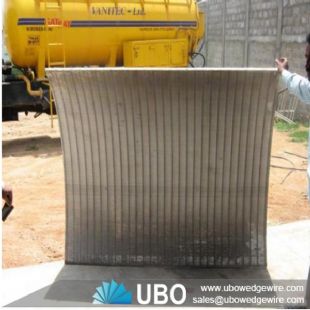

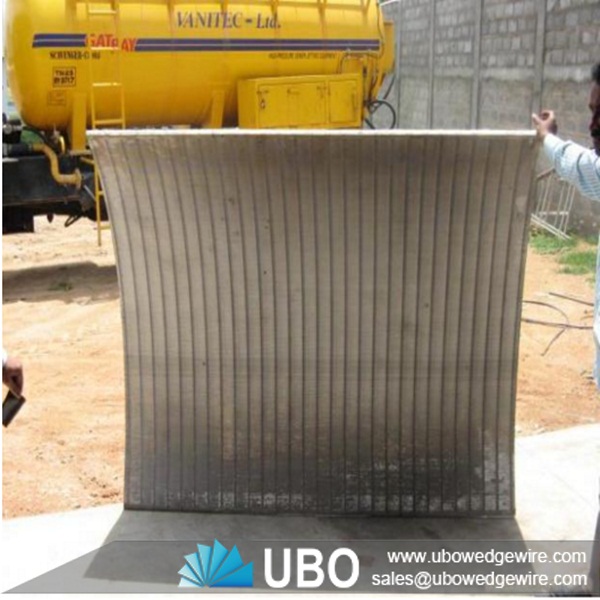

Slot well sieve bend screen panel for food processing

More Views

Slot well sieve bend screen panel for food processingSlot well sieve bend screen panel for food processingSlot well sieve bend screen panel for food processing

Slot well sieve bend screen panel for food processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Slot well sieve bend screen panel for food processing

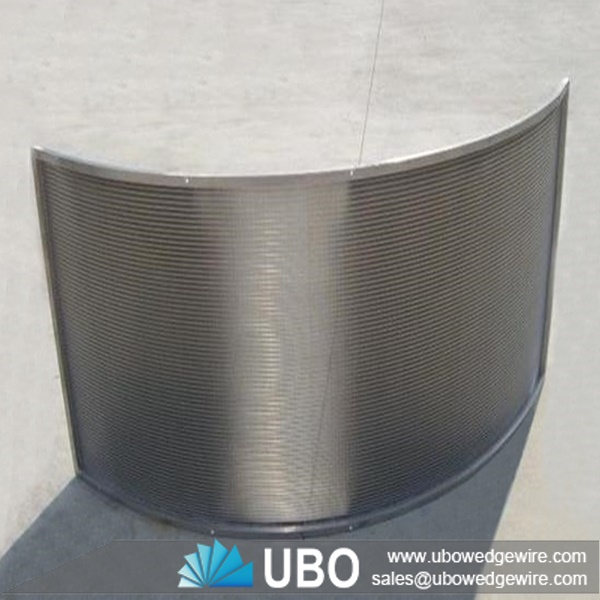

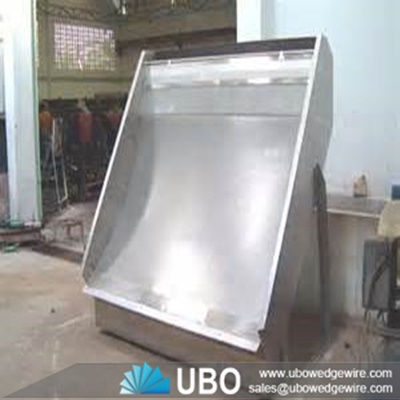

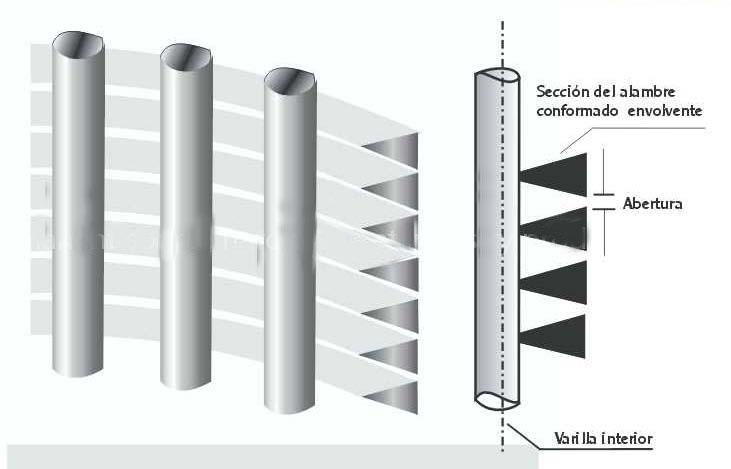

Slot well sieve bend screen panel also known as side hill screens, parabolic screens,rundown screens, gravityscreens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery. Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity. A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. Slot well sieve bend screen panel has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Features of slot well sieve bend screen panel for food processing

1) Accurate filtering performance.

2) High efficiency.

3) Narrow slot openings.

4) Normal or high grade type for choice.

5) Various edge types.

6) Wide range of diameters for choice.

7) Special sizes can be customized.

8) Economical but high grade.

9) Corrosion resistance.

10) Rust resistance.

11) Long service life and durable.

Applications of slot well sieve bend screen panel for food processing

stainless steel plat panel wedge wire screens is used for water filtering and sifting in the following industry:

-- Petroleum

-- Chemical industry

-- Pharmacy

-- Food and beverage

-- Metallurgy

-- Coal mining

-- Environmental protection

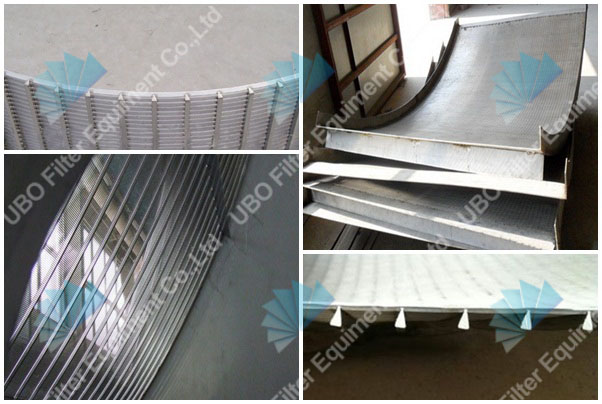

Slot well sieve bend screen panel for food processing

Specifications of Slot well sieve bend screen panel for food processing:

Outside Diameter
Profile
wire
Rod
wire
Rod
quantity
Slot
size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05

Slot well sieve bend screen panel for food processing

Packaging and Transportation of Slot well sieve bend screen panel for food processing:

transportation
