Screen Pipe continuous slot wedge rod base wire wrapped screen
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Wedge Wire Cylinder |
Application: | deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the ind |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Screen Pipe continuous slot wedge rod base wire wrapped screen

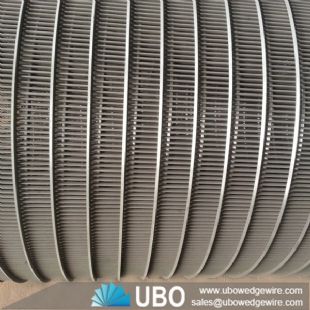

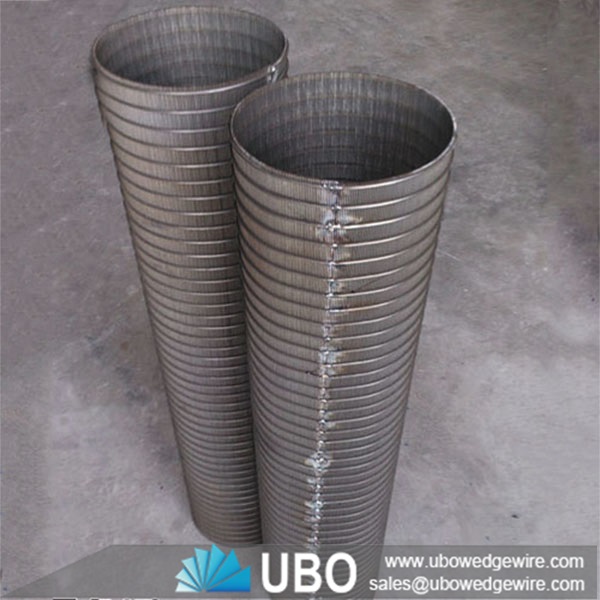

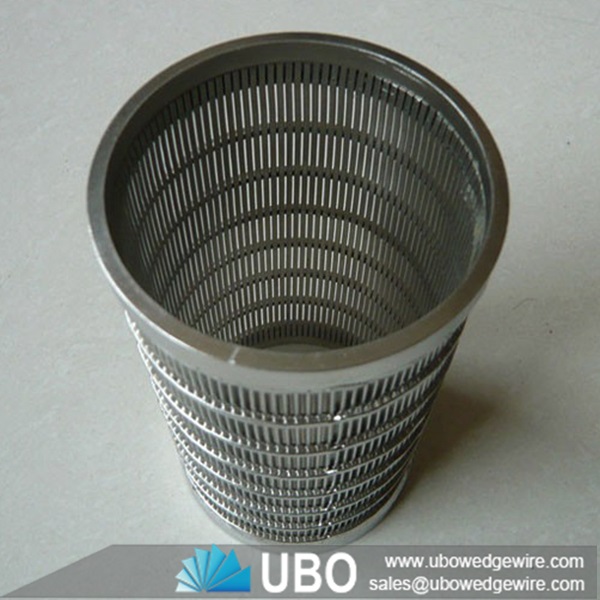

The welded wire wrapped continuous slot water well screens are made up of rods and wire.The rod can be round wire, triangular wire or trapezoid wire.
The wire is triangular wire (V-shaped wire).Water well screens have a structure and high open area, as well as accurate slot dimension.
The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.
Applications for continuous slot wedge wire wrapped screen pipe:
The strainer is a kind of filtered water tubing with the perforation. It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
Features for continuous slot wedge wire wrapped screen pipe:
The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Specifications of Screen Pipe continuous slot wedge rod base wire wrapped screen:
size |
inner diameter |
outer diameter |
|||
in
|
mm
|
in
|
mm
|
in
|
mm
|
2
|
51
|
2
|
51
|
25/8 |
67 |
3
|
76
|
3
|
76
|
35/8 |
92
|
4
|
102
|
4
|
102
|
45/8 |
117
|
5
|
127
|
5
|
127
|
55/8 |
143
|
6
|
152
|
6
|
152
|
65/8 |
168
|
8
|
203
|
8
|
203
|
85/8 |
219
|
10
|
254
|
10
|
254
|
103/4 |
273
|
12
|
305
|
10
|
305
|
123/4 |
324
|
Packaging and Transportation of Screen Pipe continuous slot wedge rod base wire wrapped screen:
