SUS316 Water treatment nozzle for water processing

More Views

SUS316 Water treatment nozzle for water processingSUS316 Water treatment nozzle for water processingSUS316 Water treatment nozzle for water processing

SUS316 Water treatment nozzle for water processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SUS316 Water treatment nozzle for water processing

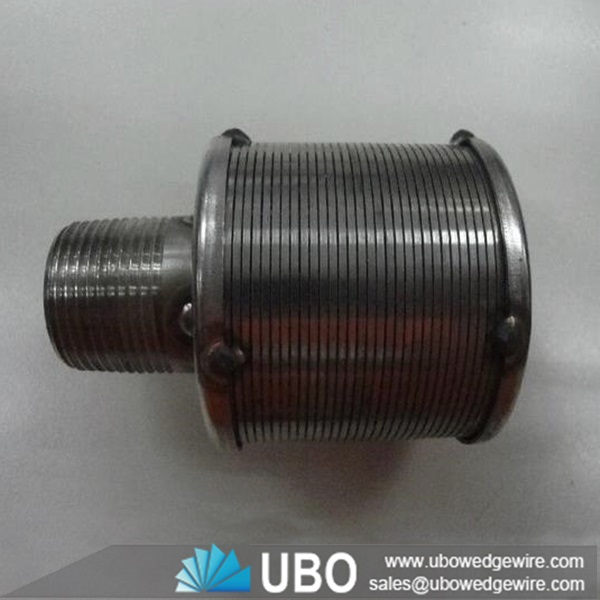

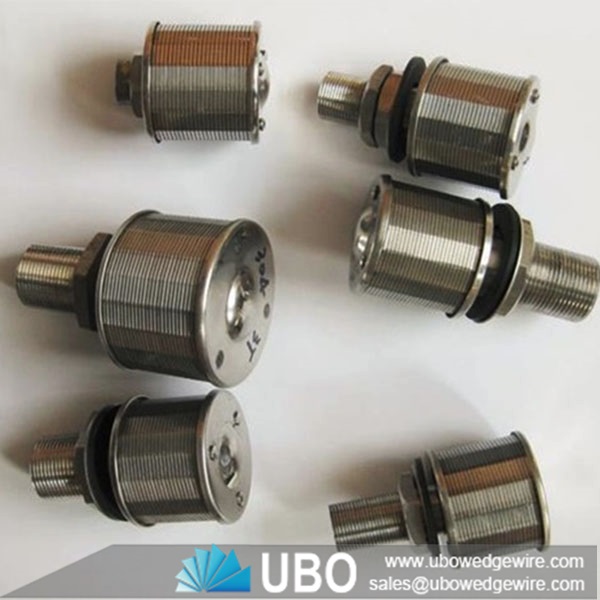

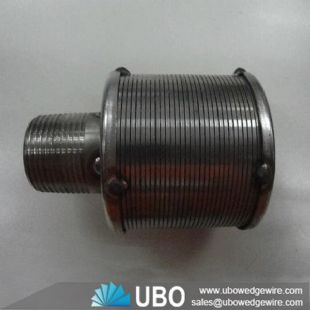

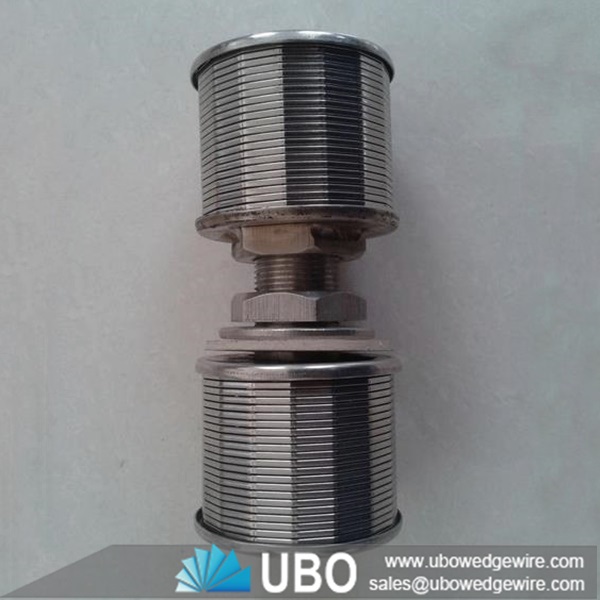

Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot.

To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.

Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate. Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Applications for SUS316 Water Treatment Nozzle Filter for Water Processing:

Johnson Screen Nozzle filters can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin, ....). The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Advantages for SUS316 Water Treatment Nozzle Filter for Water Processing:

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Features for SUS316 Water Treatment Nozzle Filter for Water Processing:

-- Great mechanical strength

-- Highly resistant to abrasivity and vibration.

-- It can hold more pressure and temperature compared to the perforated sheet screen.

-- Longer screen life.

-- Larger useful area than that of the standard perforated sheet screen.

-- The wedge wire screen can be used in any of INOXPA filters.

-- The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.

-- It is possible to clean the wedge wire screen with a reversed flow (back flushing).

SUS316 Water treatment nozzle for water processing

Specifications of SUS316 Water treatment nozzle for water processing:

SUS316 Water treatment nozzle for water processing


Type in catalogue

Slots (mm)

Thread

ΦA (mm)

Thread length L1(mm)

Shaft L2(mm)

A

0.05

0.1

0.2

0.3

0.5

1

1 ¼ "WW

32

25,30,45,+5+5...

80,110,140,200,

250,300,350...

M30*3.5

30

30

G 3/4"

26.5

25,30,45,+5+5...

80,110,140,200,

250,300,350...

1"WW

25.4

20,45,+5+5...

M24

24

25,45,+5+5...

M22*1.5

22

45,+5+5...

G 1/2"

21

20

80,110,140,200..

M20

20

45,+5+5...

G 3/8"

16.7

20


Packaging and Transportation of SUS316 Water treatment nozzle for water processing:

SUS316 Water treatment nozzle for water processing
