SS304L Rotary drum screen cylinders used in food processing

More Views

SS304L Rotary drum screen cylinders used in food processingSS304L Rotary drum screen cylinders used in food processingSS304L Rotary drum screen cylinders used in food processing

SS304L Rotary drum screen cylinders used in food processing

Category:Wedge Wire Application
Material:stainless steel
Properties:drum screen
Application:screening,filtering,dehydration,desliming in construction, water treatment,food,petroleum,environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS304L Rotary drum screen cylinders used in food processing

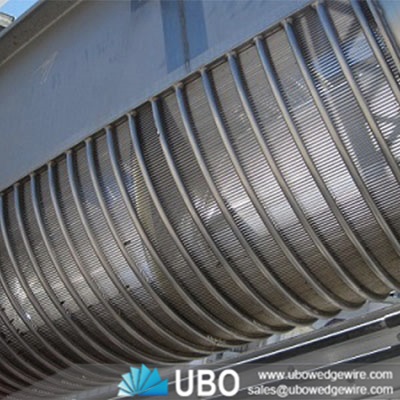

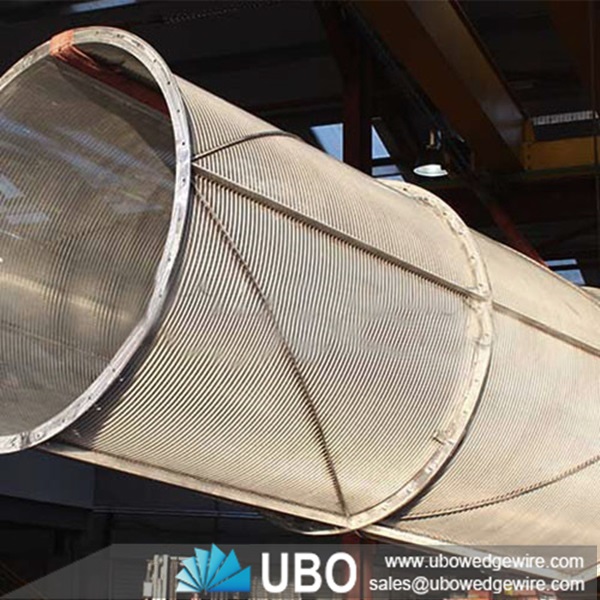

The material of wedge wire rotary drum screen is stainless steel.The profile wire wraps around internal array of longitudinal support rods. Each intersection point of these wires is fusion welded.

The profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. So the screen can allow water and oil to enter the well freely. And at the same time,it keeps the majority of the sand and gravel out of the well. The length and the thickness are according to the customers' requirements.

Applications for SS304L Rotary drum screen cylinders used in food processing:

Slotted Wire Screen drum is widely used for screening, filtering, dehydration, desliming in construction, water treatment, food, petroleum, environmental protection and other industries.

Advantages for SS304L Rotary drum screen cylinders used in food processing:

1) Easily for installation and replacement

2) Different material according to environmental conditions

3) Strong adsorption

4) Lower Water Price

5) Custom Designed and Engineered

6) Longer Lasting

7) Lower Maintenance

8) Less Costly

SS304L Rotary drum screen cylinders used in food processing

Specifications of SS304L Rotary drum screen cylinders used in food processing:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of SS304L Rotary drum screen cylinders used in food processing:

SS304L Rotary drum screen cylinders used in food processing
