SS Wedge Wire Screen Nozzle Filter for Water Treatment

More Views

SS Wedge Wire Screen Nozzle Filter for Water TreatmentSS Wedge Wire Screen Nozzle Filter for Water TreatmentSS Wedge Wire Screen Nozzle Filter for Water Treatment

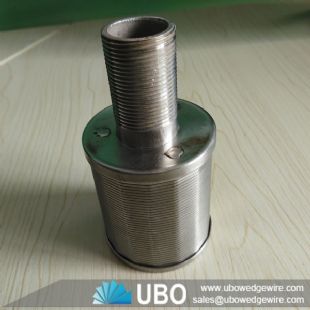

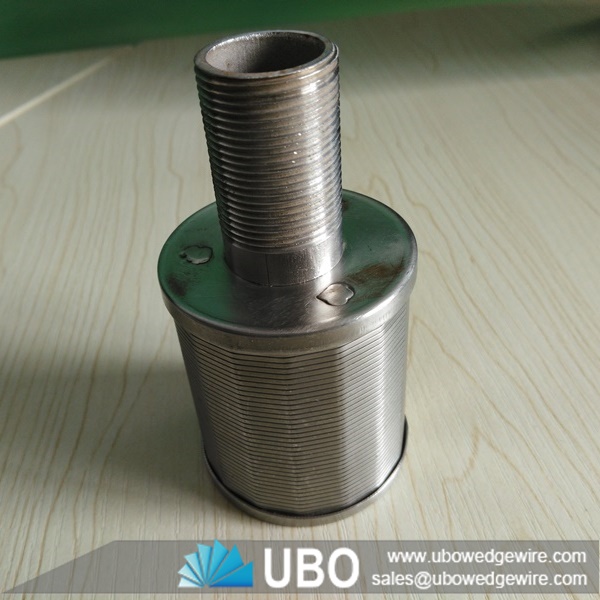

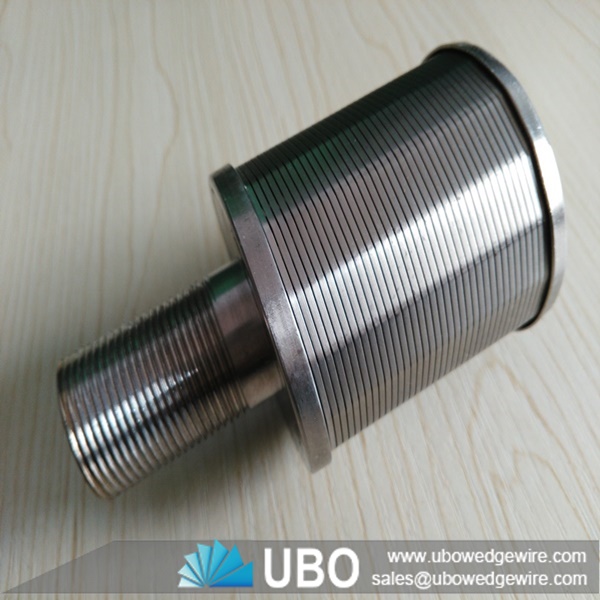

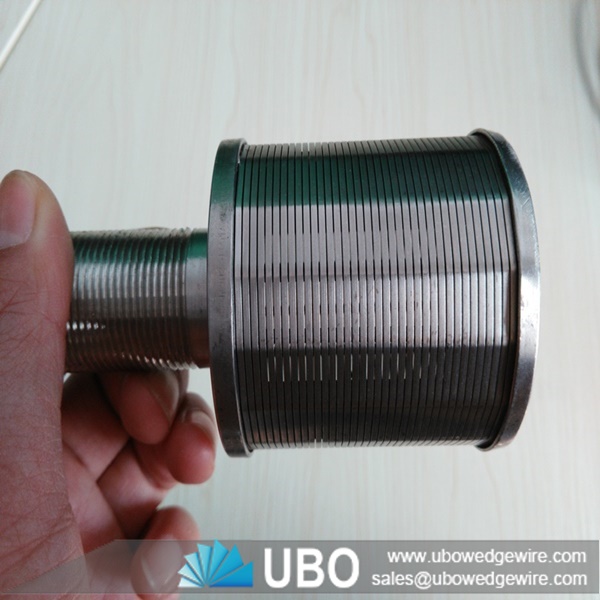

SS Wedge Wire Screen Nozzle Filter for Water Treatment

Category:Wedge Wire Application
Material:stainless steel 302, 304, 316, 316L etc
Properties:wedge wire screen
Application:water,oil, gas, liquid filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Wedge Wire Screen Nozzle Filter for Water Treatment

UBO filter nozzles, manufactured uniquely in stainless steel or alloy, are successfully used in mixed beds, ion exchangers and regenerators of condensate polishing system.

The wedge wire element in a nozzle is a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. One rubber shim , one steel shim and two thin nuts of the same material for a nozzle. Material: SUS304, 1Cr18Ni9Ti, AISI316L, 316 etc.

Features of Wedge Wire Screen Nozzle Filter for Water Treatment

Reduced costs, since wedge wire screens have a very long life.
Greater resistance to stresses of different pressure and temperature.
Maximum effective flow area & operating efficiency is maintained
Costly downtime for cleaning plugged screens is minimize.

Advantage of Wedge Wire Screen Nozzle Filter for Water Treatment


• high strength compared to plastic nozzles

• flexibility in design

• strong construction (self supporting)

• large open area

• plug-resistant slot design

Usages of Wedge Wire Screen Nozzle Filter for Water Treatment

\Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

water treatment SS filter nozzle

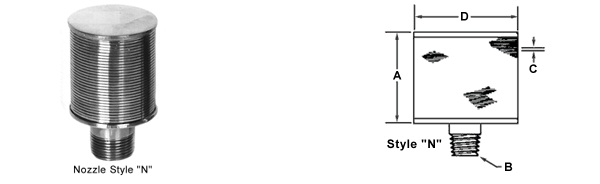

Specifications of SS Wedge Wire Screen Nozzle Filter for Water Treatment:

water treatment SS filter nozzle



A                                          1 11/16"
B 3/4" NPT
C .007"
D 2''
O.A. 0.98 sq. in.
Benefits Easily installed
Economical
Efficient
Non-clogging
Suited as collectors and distributors
Options Coupling connections
Custom connections
Standard "T" bolt connections

Packaging and Transportation of SS Wedge Wire Screen Nozzle Filter for Water Treatment:

Package: in wood case

Delivery Time: 5-25 days
