Rod Based Continuous Slot Welded Wedge Wire Screen
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Pipe |
Application: | food processing, waste water filtration, pulp and paper as well as mineral processing applications |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Rod Based Continuous Slot Welded Wedge Wire Screen

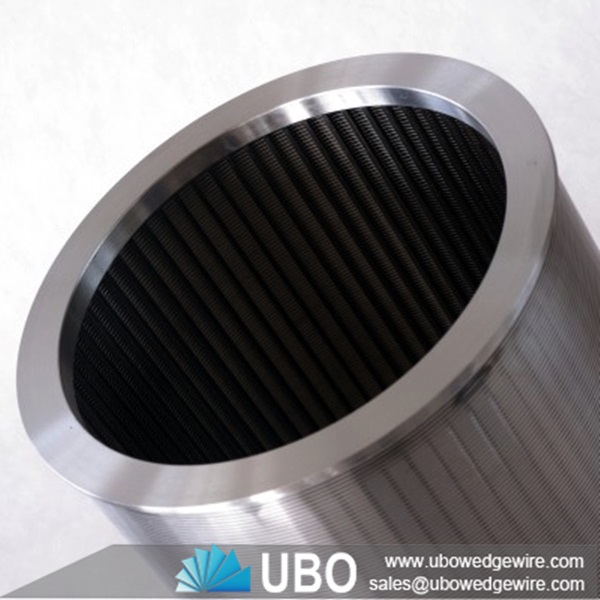

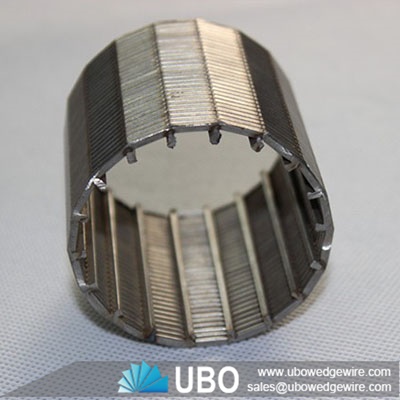

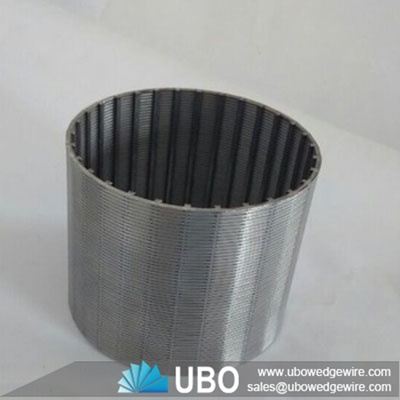

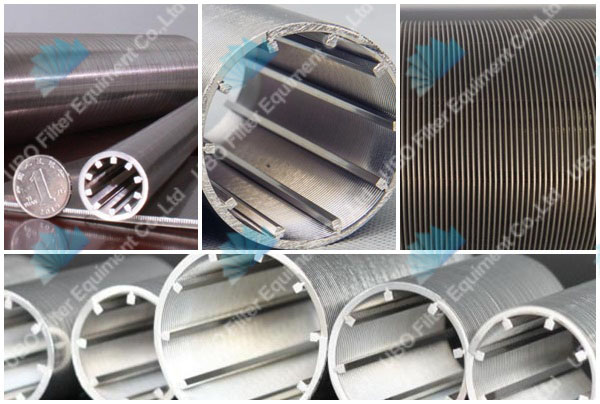

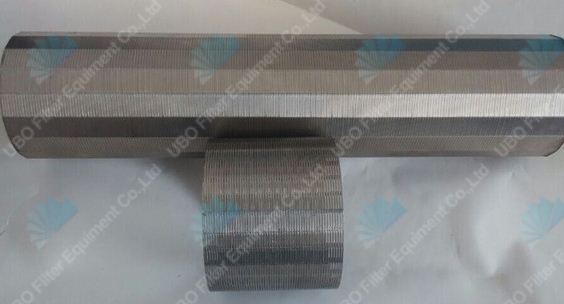

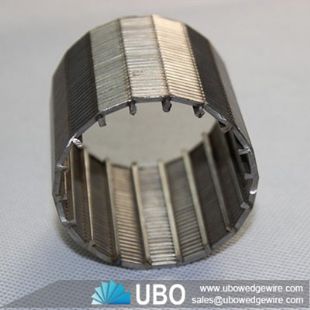

wire wrapped strainer screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.
Application for Rod Based Continuous Slot Welded Wedge Wire Screen:
widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.
Characteristics for Rod Based Continuous Slot Welded Wedge Wire Screen:
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
Advantage for Rod Based Continuous Slot Welded Wedge Wire Screen:
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration.
Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’sentering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells
Specifications of Rod Based Continuous Slot Welded Wedge Wire Screen:
Outside Diameter
|
Profile wire
|
Rod wire
|
Rod quantity
|
Slot size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000 |
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000 |
32
|
1-1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
40
|
1-1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000 |
65
|
2-1/23
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000 |
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
1000~6000 |
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000 |
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000 |
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000 |
200
|
8
|
219.1
|
3.3*3.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000 |
250
|
10
|
273
|
3.3*3.5
|
4*6
|
66
|
0.5~2
|
1000~6000 |
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000 |
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000 |
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1*2
|
1000~6000 |
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1*2
|
500~400 |
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1*2
|
500~400 |
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1*2
|
500~400 |
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1*2
|
500~400 |
Siot:0.1mm~2mm Tolerance:0.05 |

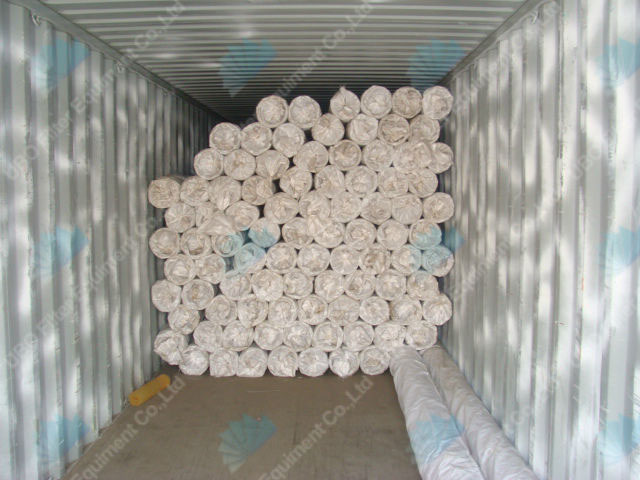

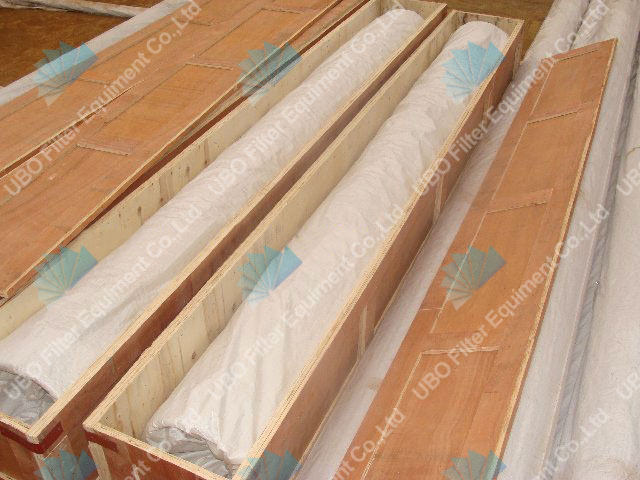

Packaging and Transportation of Rod Based Continuous Slot Welded Wedge Wire Screen:
