Quality Wedge Wire Screen Manufacturer in China

Petro chemical stainless steel wedge wire screens for filtration

More Views

Petro chemical stainless steel wedge wire screens for filtrationPetro chemical stainless steel wedge wire screens for filtrationPetro chemical stainless steel wedge wire screens for filtration

Petro chemical stainless steel wedge wire screens for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Petro chemical stainless steel wedge wire screens for filtration

Petro chemical stainless steel wedge wire screens are designed to self clean, with wedge wire tubes supporting and reinforcing the structure. Our petro chemical stainless steel wedge wire screens are produced to work uninterruptedly. This maintains higher efficiency and productivity whilst at the same time minimising energy consumption. Making the benefits of installing petro chemical stainless steel wedge wire screens for your waste water screening needs from Gap Technology a definite must.

Applications of petro chemical stainless steel wedge wire screens for filtration

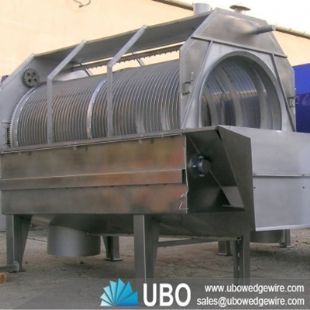

Rotary Drum Screens are used to mechanically separate liquids from solid particles. Gap Technology offer a wide range of Rotary Drum screens and Rotary Wedge Wire Screens / Trommel Screens for industrial waste water screening applications to our large and varied customer base throughout the United Kingdom and across Europe.

Features of petro chemical stainless steel wedge wire screens for filtration

1) Drum screen mesh is not easy to jam.

2) Smooth operation, low noise.

3) Simple structure, convenient maintenance.

4) Sieve tube can be closed, airtight dust easily.

5) The whole machine has high reliability, one-time investment is less.

6) Adopts special mesh, high screening efficiency, long service life.

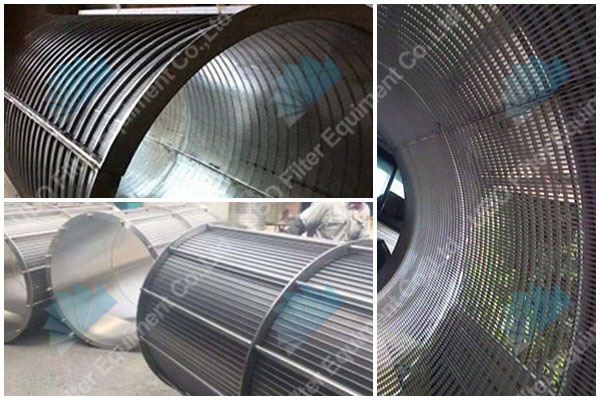

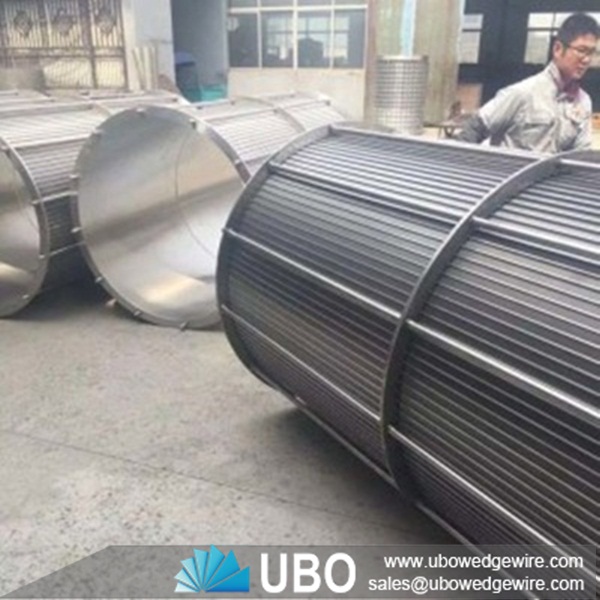

Petro chemical stainless steel wedge wire screens for filtration


Specifications of Petro chemical stainless steel wedge wire screens for filtration:

Petro chemical stainless steel wedge wire screens for filtration

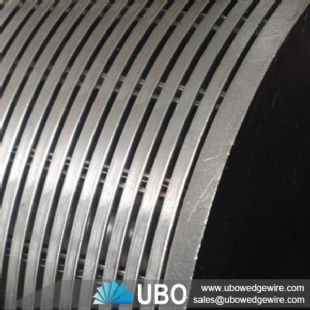

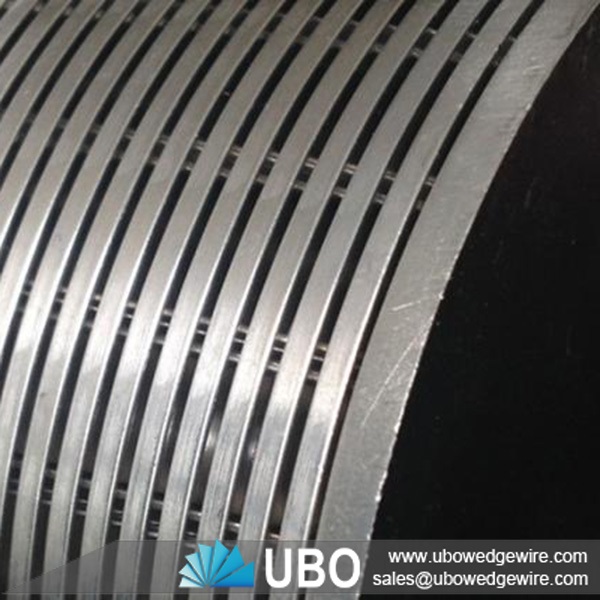

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot Size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End Connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Petro chemical stainless steel wedge wire screens for filtration:

transportation
