Quality Wedge Wire Screen Manufacturer in China

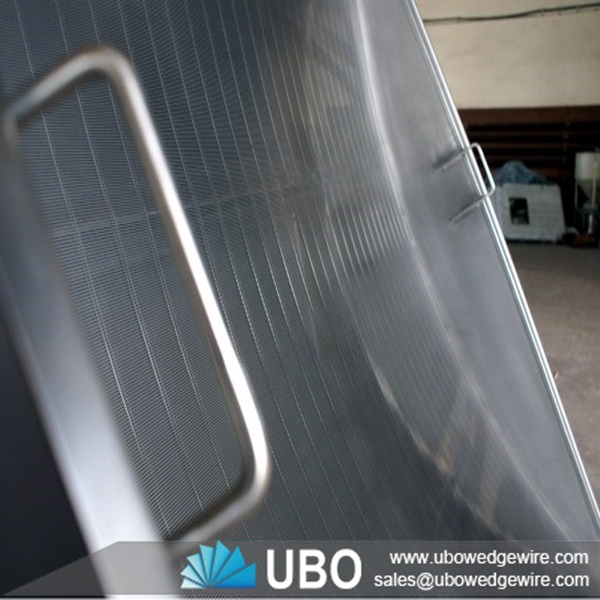

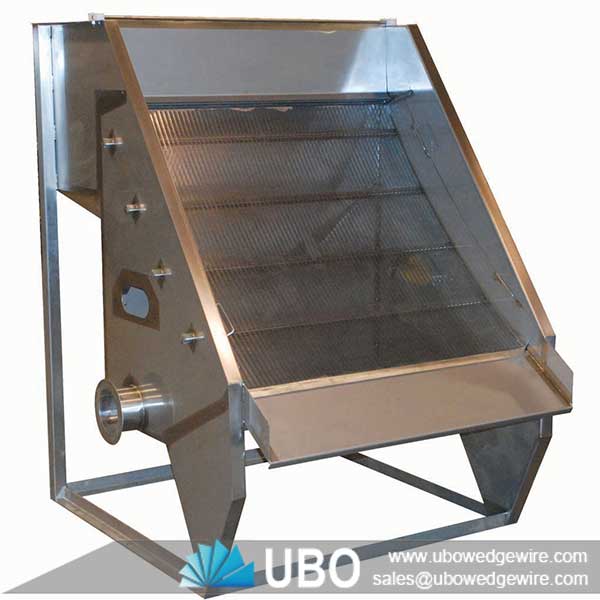

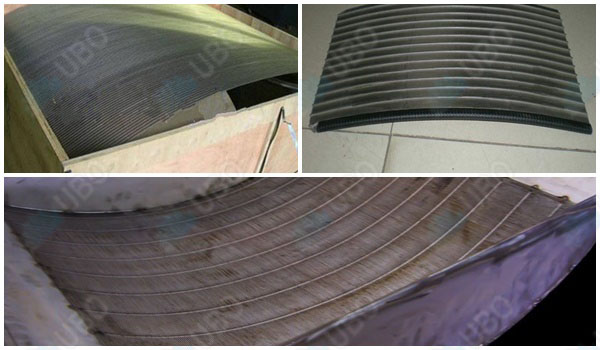

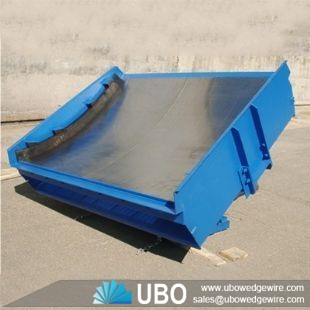

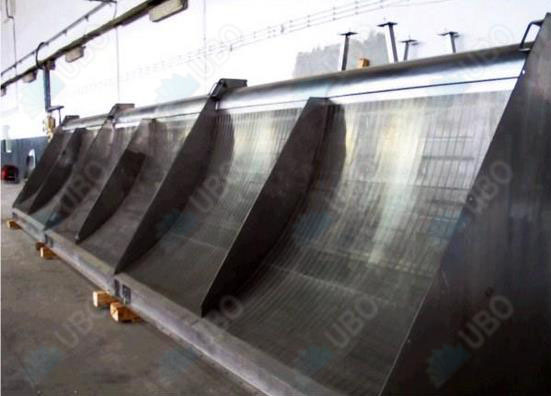

Mineral processing wedge wire welded sieve bend screen

More Views

Mineral processing wedge wire welded sieve bend screenMineral processing wedge wire welded sieve bend screenMineral processing wedge wire welded sieve bend screen

Mineral processing wedge wire welded sieve bend screen

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:minging filtration,solid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Mineral processing wedge wire welded sieve bend screen

Mineral processing wedge wire welded sieve bend screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

Features of mineral processing wedge wire welded sieve bend screen


The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Applications of Mineral processing wedge wire welded sieve bend screen


wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens, many other liquids, solids separation applications.

Mineral processing wedge wire welded sieve bend screen

Specifications of Mineral processing wedge wire welded sieve bend screen:

wedge wire sieve bend screen



Wire Width

Wire Height

Relief Angle

Typical Support Rods

30V

.030"

.06"

10

.125" round

45V

.045"

.09"

10

.125" round

63V

.063"

.11"

13

.156" round

69U

.069"

.17"

8

.075" x 1" bar

93V

.093"

.15"

13

.25" round or .075" bar

93U

.093"

.17"

5

.25" or .38" round

125V

.125"

.20"

13

.38" round

Packaging and Transportation of Mineral processing wedge wire welded sieve bend screen:

transport
