Johnson wedge wire screen pipe
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

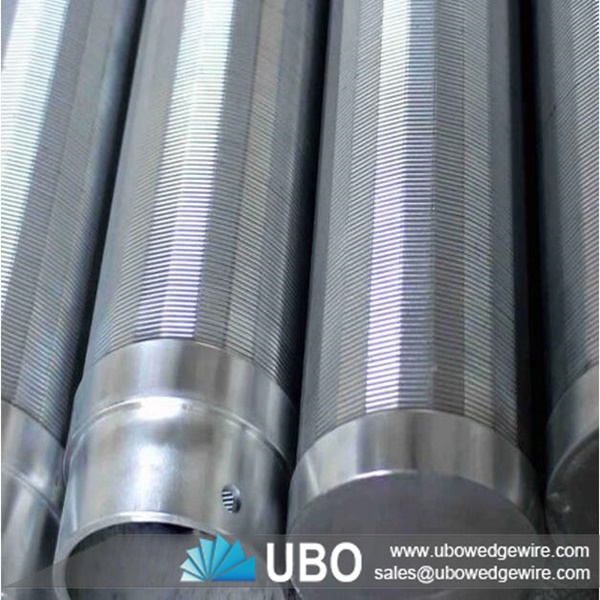

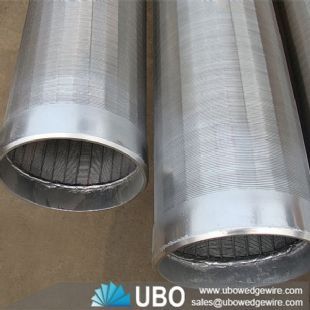

Details of Johnson wedge wire screen pipe
Johnson wedge wire screen pipe performance is dependent on several factors, including wire and rod shape, construction, steel grade and microstructure, as well as slot accuracy over the full length of the screen. To meet the most demanding requests, continues to engineer and manufacture stainless steel screens from 0.7 m (2 ft.) to 12.2 m (40 ft.). In recent years, we have more than doubled our manufacturing capacity by adding new equipment and expanding our factories.
Our Johnson wedge wire screen pipe can be constructed out of 304, 304L, 316L and 904L stainless steel. Other corrosion-resistant alloys are available upon request.
Features of Johnson Wedge Wire Screen Pipe

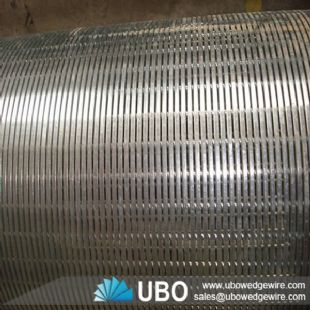

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.
High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.
High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.
Applications of Johnson Wedge Wire Screen Pipe
This wedge wire screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chem ical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.
Specifications of Johnson wedge wire screen pipe:
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings
|
Packaging and Transportation of Johnson wedge wire screen pipe:
