Hub Lateral for Water Treatment

Category:Wedge Wire Application
Material:SS 304, 316, 316L, 321, 904L
Properties:wedge wire screen
Application:filteration/industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Hub Lateral for Water Treatment

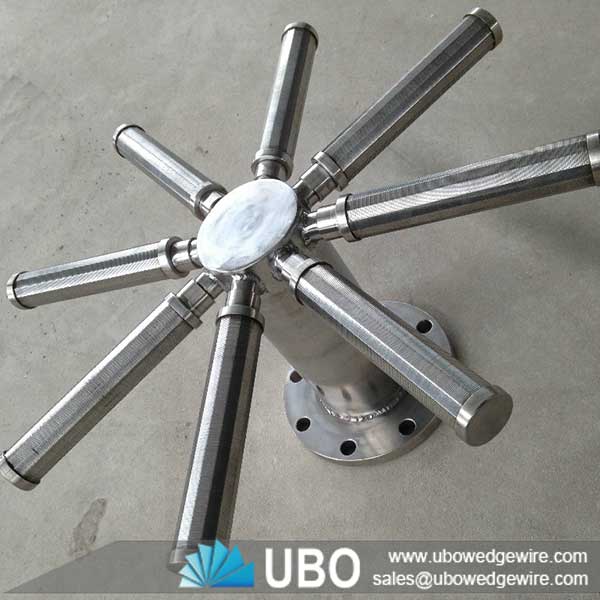

These hub lateral assemblies consist of a series of screen laterals connected to either a central header pipe or a hub. They are designed for effective media retention in a wide range of applications, including ion exchangers, clay and sand filtration applications and carbon towers.

Futures of Hub Lateral for Water Treatment

1) Water distributor used for water treatment,such as RO plant,Softener system or water filter;

2) High chemical resistance and pressure operation;

3) Made of ABS synthetic resin;

4) Max diameter of the matched tank: 400mm;

5) Tank working pressure : 100/150PSI;

6) Working temperature : 45C

Usages of Hub Lateral for Water Treatment

Widely used in water treatment field,mainly installed in filter tanks(FRP tanks ,Stainless steel tanks)

       hub lateral for water treatment

Specifications of Hub Lateral for Water Treatment:

Material:stainless steel

Type:hub lateral

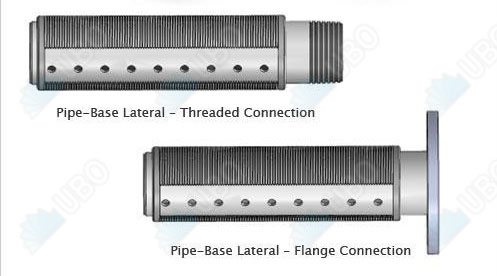

Connection:flange of thread

hub laterial

lateral pipe

Top mount 6 laterals:



Item no.
Dimensions (mm)
Diameter (inches/mm          )
Top opening
A
B
C
D
HU6260
260
82
35
50/42
12"~16"/300~400
4"~8"THREAD
HU6370
370
136
35
50/42
18"~21"/450~550
4"~8"THREAD
HU6450
460
182
35
50/42
24"/600
4"~8"THREAD
HU6600
620
260
35
50/42
30"/750
4"~8"THREAD
HU6700
710
305
35
50/42
36"/900
4"~8"THREAD


Packaging and Transportation of Hub Lateral for Water Treatment:

Package: in wood case

Delivery Time: 5-25 days
