Quality Wedge Wire Screen Manufacturer in China

Filter Nozzles for Ion Exchange Resin Container

More Views

Filter Nozzles for Ion Exchange Resin ContainerFilter Nozzles for Ion Exchange Resin ContainerFilter Nozzles for Ion Exchange Resin Container

Filter Nozzles for Ion Exchange Resin Container

Category:Wedge Wire Application
Material:stainless steel302,321,304,316
Properties:Filter Nozzle
Application:water,oil,liquid filtration,solid filtration, papermaking,industry etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Filter Nozzles for Ion Exchange Resin Container

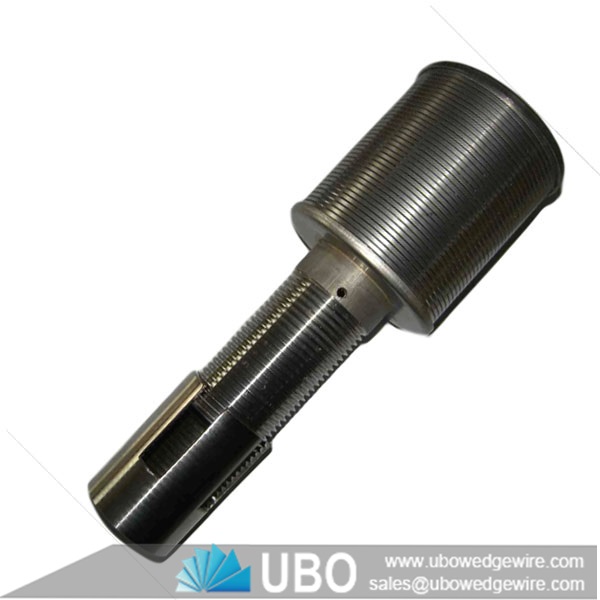

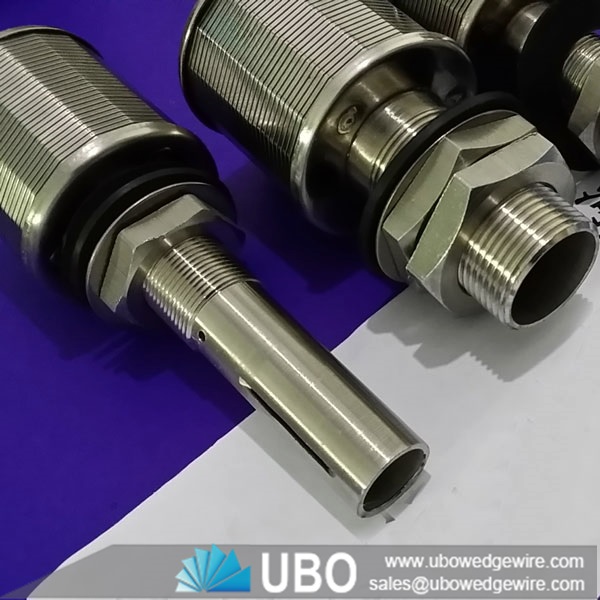

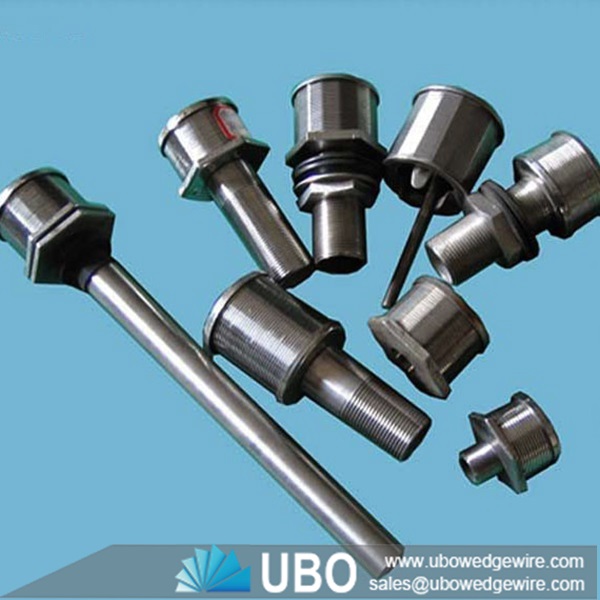

water filter nozzles manufacture for Process circulating water is made up of stainless steel or Hastelloy C wedge wire screen. It has a structure and high open area, as well as accurate slot dimension.


The wedge wire element in a nozzle is a slot tube. Nozzles are closed on one side and have a threaded fitting on the other. The flow is always out to in. Standard nozzles are 50 mm in diameter, all having a flow-out-to-in (FOTI) filtration.

Usages of Filter Nozzles for Ion Exchange Resin Container:

Stainless Steel wedge wire water treatment filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Features of Filter Nozzles for Ion Exchange Resin Container:

-- No Deformation and damage by pressure of filtration layer.

-- Improvement of Filtering efficieny by maximizing Filtrating area.

-- Fomation of equal and find slot.

-- Maintenance of semi-permanent life.

Technology for Filter Nozzles in Ion Exchange Resin Container:

Manfre introduce advanced korea technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.

filter nozzles in Ion exchange resin container

Specifications of Filter Nozzles for Ion Exchange Resin Container:

filter nozzles in Ion exchange resin container

Type

Slot





Dimension



Flow area











mm2

D

H

L

M

L1





















A

0.2mm

Φ45

35

150

M24



330

















A1

0.2mm

Φ45

40

160

M24



400

















B

0.2mm

Φ53

45

160

M24

Decided by

500





























B1

0.2mm

Φ53

45

160

M32

the

600













perforated



B2

0.2mm

Φ53

50

170

M32

650

plate

C

0.2mm

Φ57

45

160

M32

thickness

630



















C1

0.2mm

Φ57

50

170

M32



780

















C2

0.2mm

Φ57

55

180

M32



850




Packaging and Transportation of Filter Nozzles for Ion Exchange Resin Container:

filter nozzles in Ion exchange resin container
