Factory Supply Sieve Bend Screen For Food Processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wire mesh
Application:sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Factory Supply Sieve Bend Screen For Food Processing

     Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens.

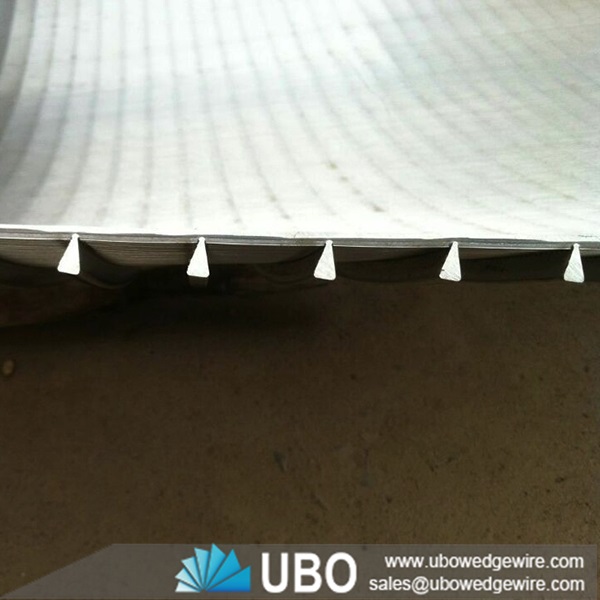

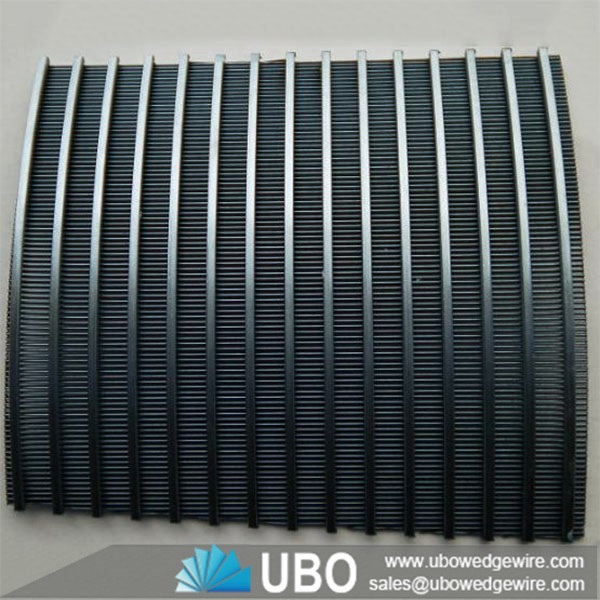

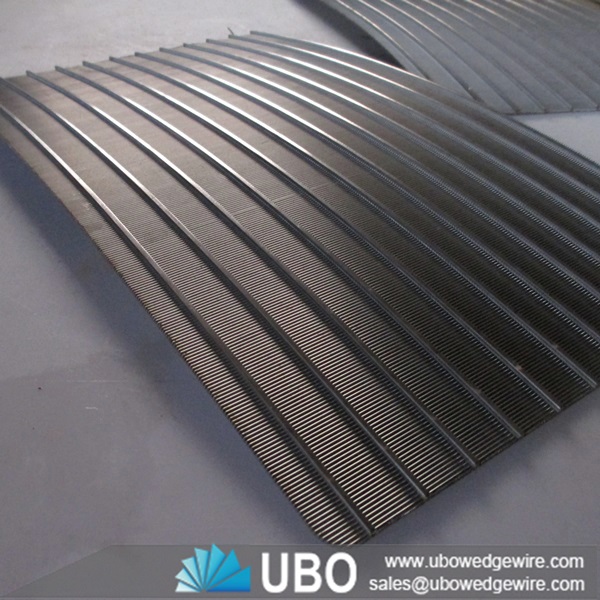

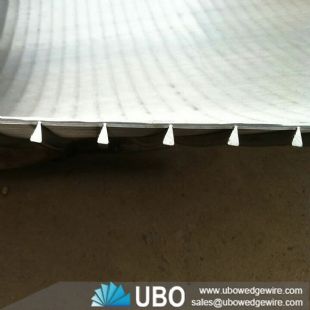

      A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.
      Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

Factory Supply Sieve Bend Screen For Food Processing

Factory Supply Sieve Bend Screen For Food Processing

Application for Factory Supply Sieve Bend Screen For Food Processing:

Applications in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid/liquid and solid/gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Features for Factory Supply Sieve Bend Screen For Food Processing:

Wire wrapped screen with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
Low cost operation screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level's down, thus to save energy consumption.
Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater's entering into the screen much slower than any other filtration apparatus, which will avoid sand's entering into screen because of high pressure, thus reduce the abrasion of the pump.
Extend the life span of wells
Comparatively, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Advantage for Factory Supply Sieve Bend Screen For Food Processing:

1 Excellent roundness
2 Very good slot width precision
3 High mechanical load capacity
4 No form closure connection that would allow vibration of the profiled bars
5 Automated welding process for high-precision manufacturing
6 Perfectly adjusted screen basket profiles
7 Available for all screens
8 Surface finishing as required

Specifications of Factory Supply Sieve Bend Screen For Food Processing:

Factory Supply Sieve Bend Screen For Food Processing



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Factory Supply Sieve Bend Screen For Food Processing:

1.Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2.We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
