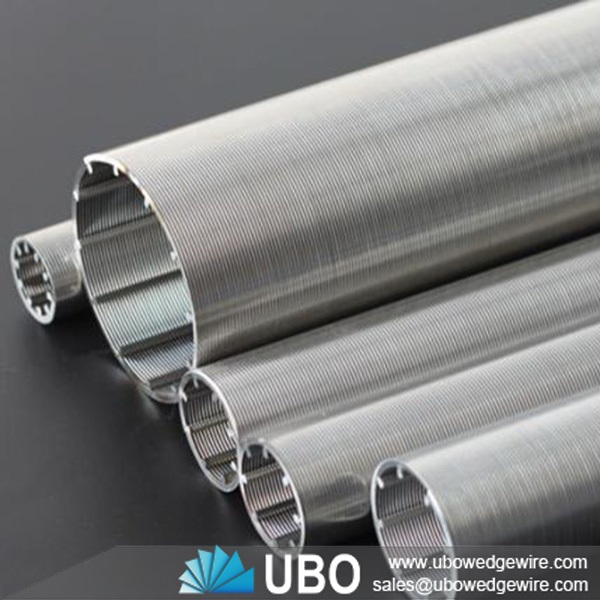

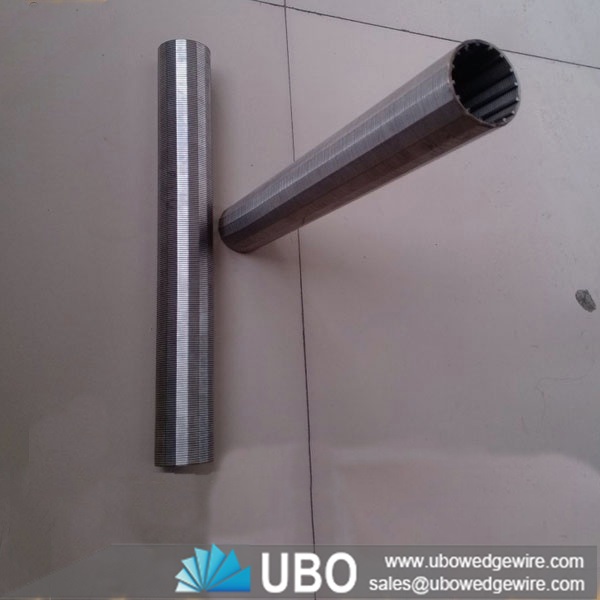

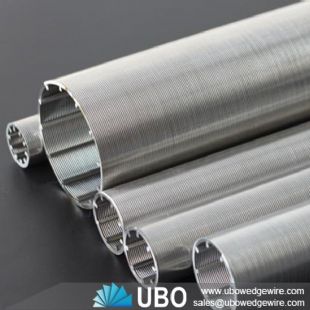

Continuous slot wire wrapped water well screen supplier

More Views

Continuous slot wire wrapped water well screen supplierContinuous slot wire wrapped water well screen supplierContinuous slot wire wrapped water well screen supplier

Continuous slot wire wrapped water well screen supplier

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application: engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Continuous slot wire wrapped water well screen supplier

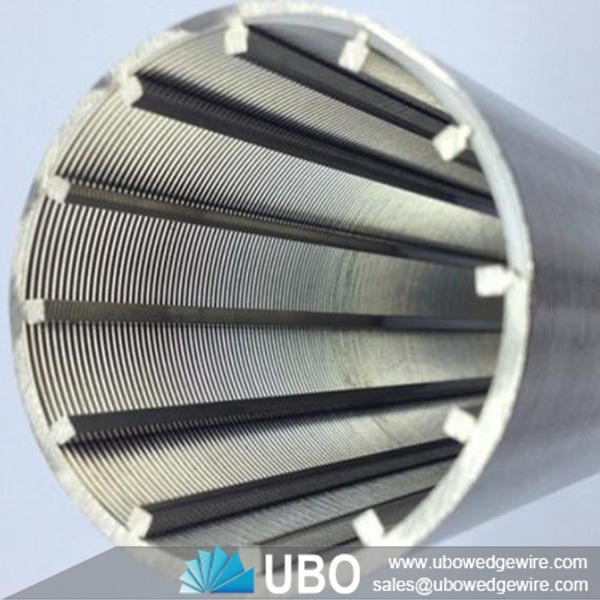

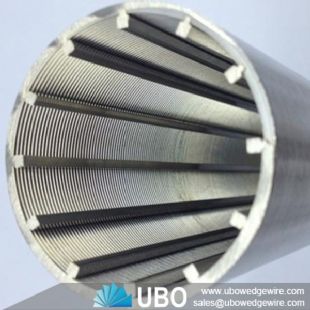

    The screen consists of an outer jacket that is fabricated on special wrapping machines that resemble a lathe. The shaped wire is simultaneously wrapped and welded to longitudinal rods to form a single helical slot with any desired width. The jacket is subsequently placed over and welded at each end to a supporting pipe base (containing drilled holes) to provide structural support.

Continuous slot wire wrapped water well screen supplier

Application for Continuous slot wire wrapped water well screen supplier:

Wedge wire screen has a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid , liquid , solid and gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Advantages for Continuous slot wire wrapped water well screen supplier:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Feature for Continuous slot wire wrapped water well screen supplier:

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

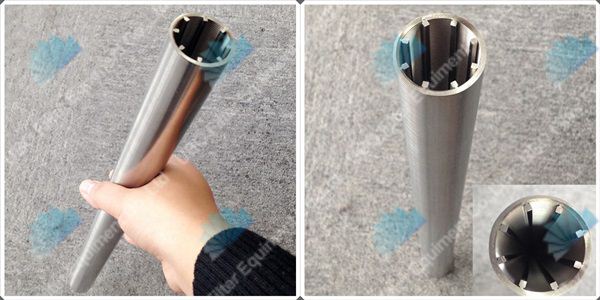

Continuous slot wire wrapped water well screen supplier



Continuous slot wire wrapped water well screen supplier

Specifications of Continuous slot wire wrapped water well screen supplier:

Continuous slot wire wrapped water well screen supplier



SIZE
(INCH)

O.D
(MM)

SLOT
(INCH)

LENGTH
(M)

COLLAPSE
STRENGTH
(PSI)

TENSILE
WEIGHT
(TON)

WRAPthick*deep
(MM)

RODS
(MM)

4

117

0.040

3

395

6

2.2*3.0

3.8MM/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8MM/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8MM/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8MM/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8MM/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8MM/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8MM/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8MM/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8MM/50

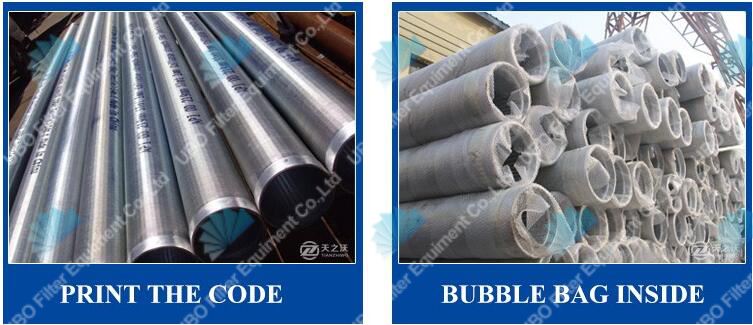

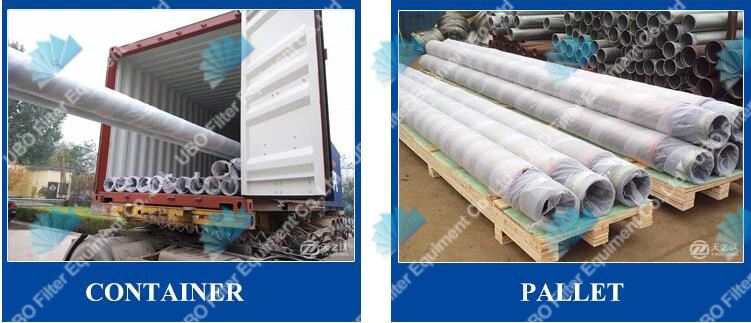

Packaging and Transportation of Continuous slot wire wrapped water well screen supplier:

Continuous slot wire wrapped water well screen supplier



Continuous slot wire wrapped water well screen supplier



Continuous slot wire wrapped water well screen supplier
