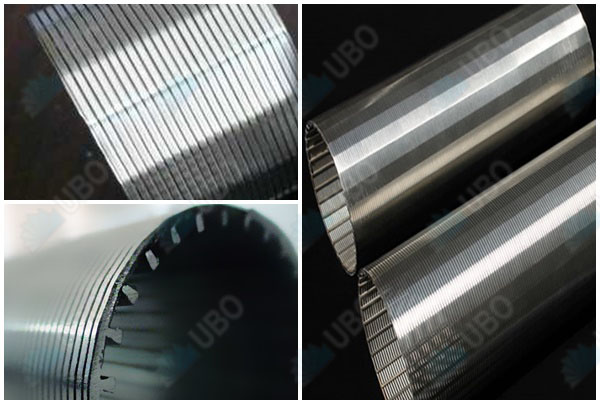

Continuous slot Wedge Wire screen for water process

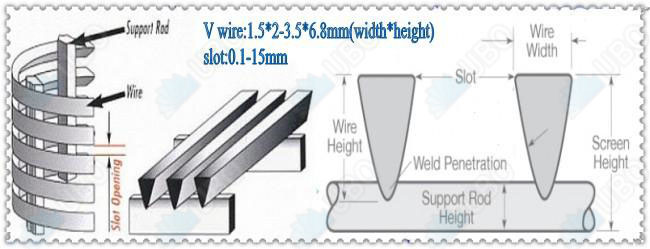

Continuous slot  Wedge Wire screen consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded. So Wedge Wire screen pipe has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage, and bmake sure of the unimpeded water. The continuous slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better. Meanwhile ,the slot size can be changed according tothe real condition of the earth .

No form closure connection that would allow vibration of the profiled bars
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Characteristic of Continuous slot  Wedge Wire screen for water process

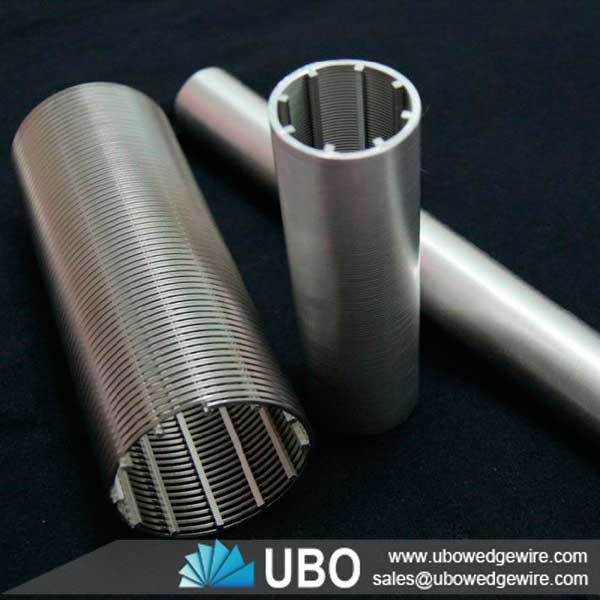

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Uses of Continuous slot  Wedge Wire screen for water process

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry.

Usage: Liquid Filter

Type: Filter Cylinder

Material: stainless steel

Hole Shape: Square

Filter Rating: more than 90%

Thickness: 0.3mm-30mm

Length: 0.5m-6m

Width: as per your request

Wire Gauge: 2-3mm

Technique: welded

corrosivity: Excellent anti-corrosion

Materials: ss304,ss304L,ss316,ss316L etc

Coating: Galvanized/Polishing

Structure: Cartridge Filter
