316 wedge wire screen panel for water filtration

More Views

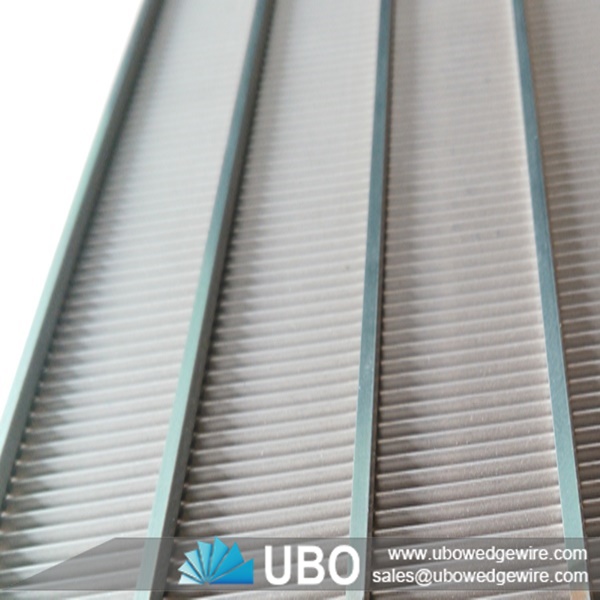

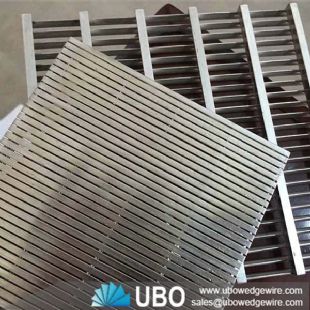

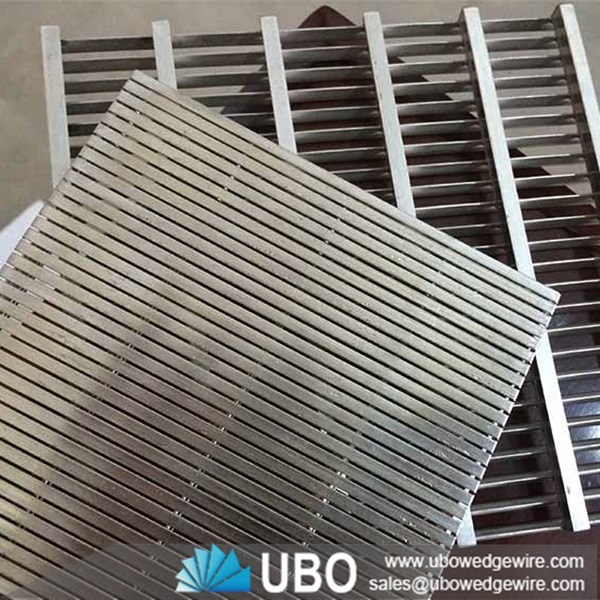

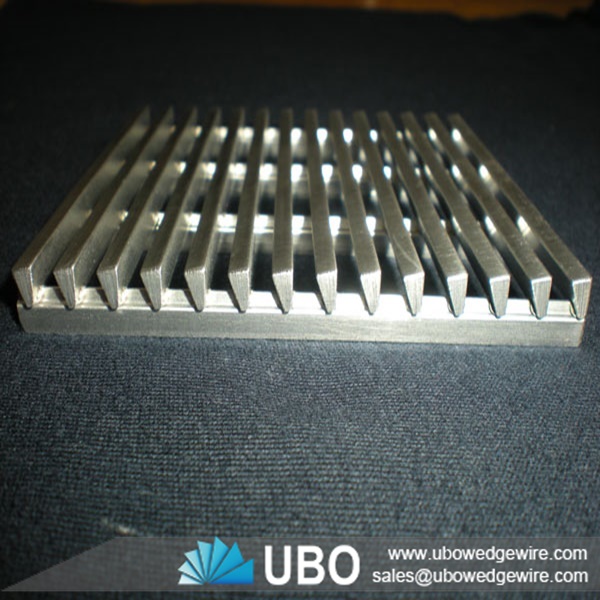

316 wedge wire screen panel for water filtration316 wedge wire screen panel for water filtration316 wedge wire screen panel for water filtration

316 wedge wire screen panel for water filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 316 wedge wire screen panel for water filtration

All screen panels are used for wide range of applications such as sizing, classification and de-watering.These are used for coal & iron ore beneficiations when fitted on the vibratory machine.

There are three basic reasons why screen panels are so widely used in mineral processing vibrators :
They're extremely dependable. Effective sizing or classifying requires uniform slots in the screen. Our screen panels are manufactured with a slot tolerance of + 0.05 mm in increments of 0.05 mm to assure dependable process results.

Flat Panel Screen 're very strong:The screen panels in flat deck applications are made with rectangular support bars which enables the panel to span longer distances without intermediate support bars.

They are effective: Welding each surface wire at every junction with support rods creates a rigid structure that transmits vibratory forces more effectively with less energy loss.

Operators from coal preparation plants, iron ore mines, food processing and other industries reports high success rates with Ubo vibratory panels/screens.

Flat Panel Screen are manufactured with an edge finish and variety of framing methods to suit your various needs.

Characteristics of 316 wedge wire screen panel for water filtration

The benefit of wedge wire screen panel is more open area, have very precise openings, maximum design flexibility, stronger and more durable, economical, easier installation and long-term operating etc.

Application of 316 wedge wire screen panel for water filtration

The flat panel screens are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

316 wedge wire screen panel for water filtration

Specifications of 316 wedge wire screen panel for water filtration:

 Material:stainless steel

Type:wedge wire flat screen

Slot:0.02, 0.25, 0.1, 0.5, 0.6......etc or as your request

Length: max 6 meters

Width: 2 meter

316 wedge wire screen panel for water filtration

Type of profile wire and Support rod

Strong Welding Wedge Wire Screen Panels Non - Clogging High Flow Rates

Profile Wire

W

 H



10SR

0.75

1.425



12SR

1

2

18SR

1.52

2.54





Strong Welding Wedge Wire Screen Panels Non - Clogging High Flow Rates

Support Rod

 W

 H



Q22

2

2.3



Q25

2

3













Packaging and Transportation of 316 wedge wire screen panel for water filtration:
