stainless welded wedge wire Oil filter screen pipe

More Views

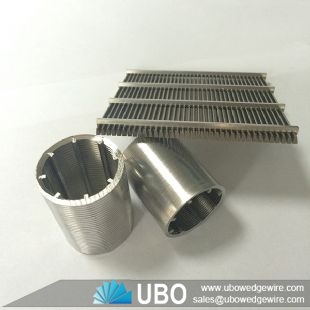

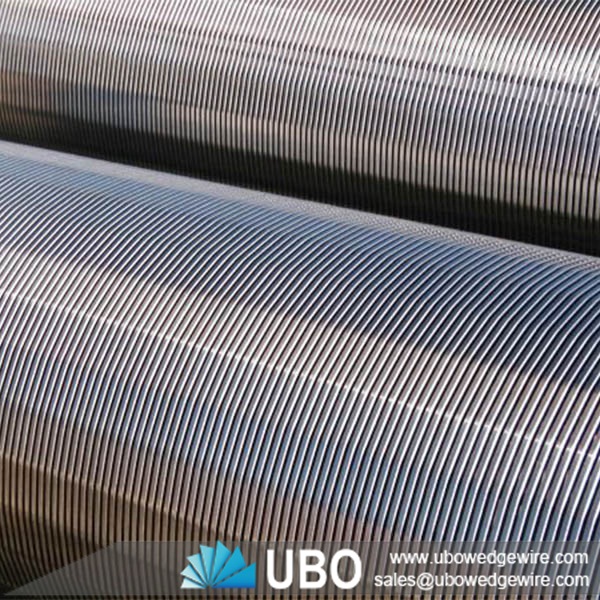

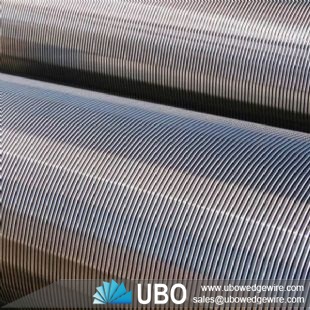

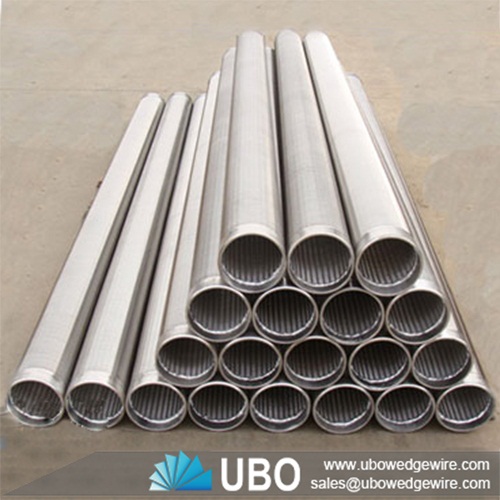

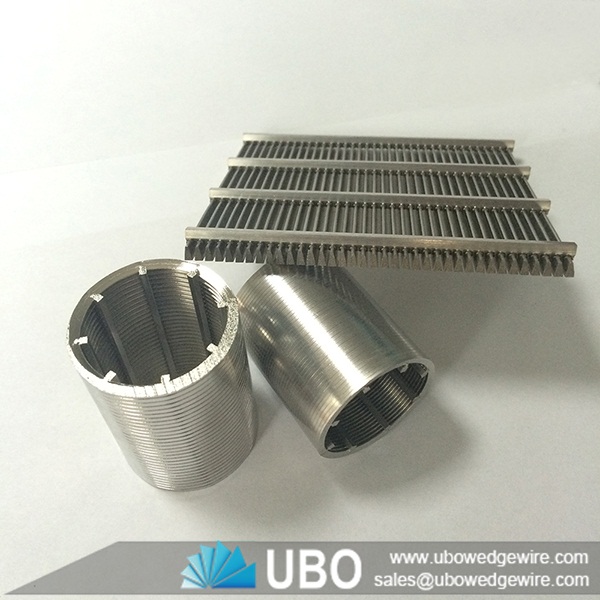

stainless welded wedge wire Oil filter screen pipestainless welded wedge wire Oil filter screen pipestainless welded wedge wire Oil filter screen pipe

stainless welded wedge wire Oil filter screen pipe

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen
Application:water intake screens, fish diversion screen panels, hatchery screens, food processing

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless welded wedge wire Oil filter screen pipe

     They consist of V shape profile wire and the longitudinal support rods. Each intersecting point the V shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to these wires is fushion welded, so it has studry construction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better. Meanwhile, the slot can change according to the real condition of the earth. if you are interested in our products, please contact us for accurate information.

Appliction for stainless welded wedge wire Oil filter screen pipe:

Applications for wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, food processing, and flooring for malt kiln, germination, and grain drying.

Advantages for stainless welded wedge wire Oil filter screen pipe:

1. The application of wedged wire made the V shaped profile slots. Compared with other patterns, this design operate more sffeciently and assure the smoothness of passing water.
2. The Wedged wire are continuously wraped onto the rods which are arranged a circle. This makes high-density uniformed slots which guarantees the open area, avoid clogging improve the productive efficiency and prolong the life performance of the well.
3. Wires and the longitude rods are connected by electric welding, durable in use
4. Arrangement of the longitudinal support rods and the successive slots provide higher compressive property
5. Outstanding performance of this product improve the efficiency of operations and service cycle, also make it the best in the water filtering equipment.

Characteristic for stainless welded wedge wire Oil filter screen pipe:

1.Maxixizing flow rates
When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing
2.Non-clogging slot
Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.
3.Reductions in operating costs
By using a Continous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized.

Technical requirements for stainless welded wedge wire Oil filter screen pipe:

The color is generally black. Also can be decided according to customer negotiation.
The inner and outer surface of the tube should be glossy and smooth. Tiny pits and bumps are allowable. Air bubble, breach, decomposition color line and obvious wound are not allowable. The both ends of the tube should be cut flat.

Specifications of stainless welded wedge wire Oil filter screen pipe:

stainless welded wedge wire Oil filter screen pipe

Basepipe OD (in)
Perforations per foot
Basepipe Hole Size (in)
Open Area of Basepipe Holes (in2/ft)
Wrap Wire Size Keystone (in)
Rib Wire Size Round (in)
Maximum OD (in)
1.05
54
0.312
4.14
0.09*0.09
0.125
1.489
1.315
66
0.312
5.06
0.09*0.09
0.125
1.726
1.66
78
0.312
5.98
0.09*0.09
0.125
2.126
1.90
42
0.375
4.63
0.09*0.09
0.125
2.387
2.063
42
0.375
4.63
0.09*0.09
0.125
2.55
2.375
54
0.375
5.96
0.09*0.09
0.125
2.86
2.875
66
0.375
7.28
0.09*0.09
0.125
3.362
3.25
78
0.375
8.61
0.09*0.09
0.125
3.737
3.50
78
0.375
8.61
0.09*0.09
0.125
3.987
4.00
90
0.375
9.94
0.09*0.09
0.125
4.487
4.50
102
0.375
11.26
0.09*0.09
0.125
5.001
5.00
114
0.375
12.59
0.09*0.09
0.125
5.506

Packaging and Transportation of stainless welded wedge wire Oil filter screen pipe:

Our pipes could be packed by plastic firm and the fittings would be packed by carton box. Both of them could be loaded in 20',40' and 40' high container. For large diameter pipes, we could load them on the bulk vessel to save the shipping cost. Small diameter pipes should be put inside of the big diameter pipes.

Orders and Returns

If you are interested in receiving more information or have a question regarding any of our products. Please fill out the form below and we will contact you within 24-48 hours.

You may also be interested in the following product(s)

Tel
Skype
Message
