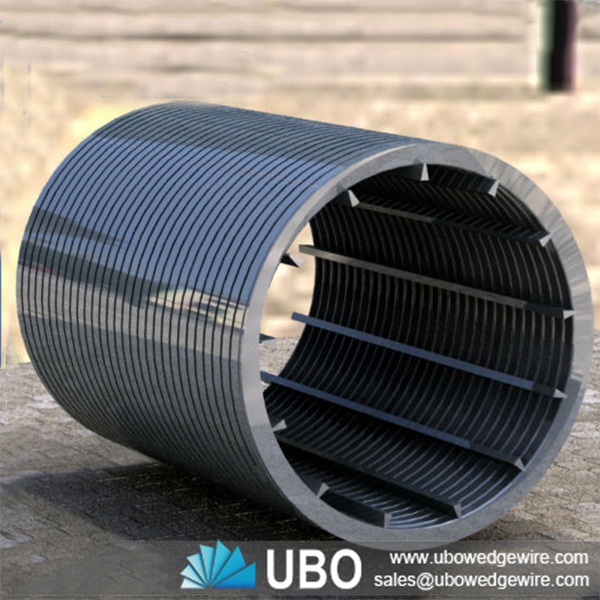

stainless steel Wedge wire screen Cylinder with the best screen

More Views

stainless steel Wedge wire screen Cylinder with the best screenstainless steel Wedge wire screen Cylinder with the best screenstainless steel Wedge wire screen Cylinder with the best screen

stainless steel Wedge wire screen Cylinder with the best screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wire screen Cylinder
Application:water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel Wedge wire screen Cylinder with the best screen

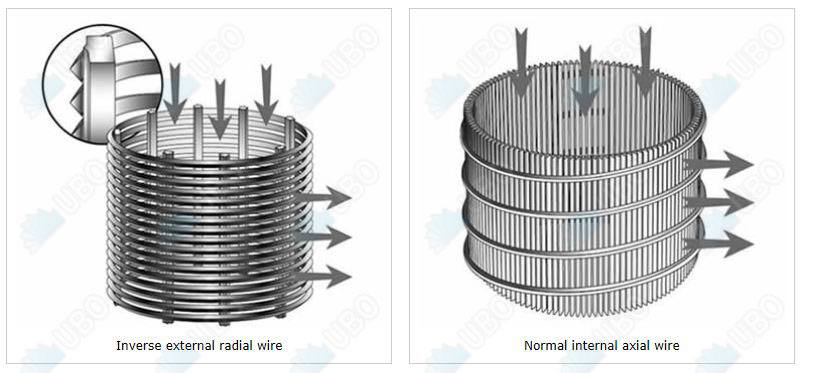

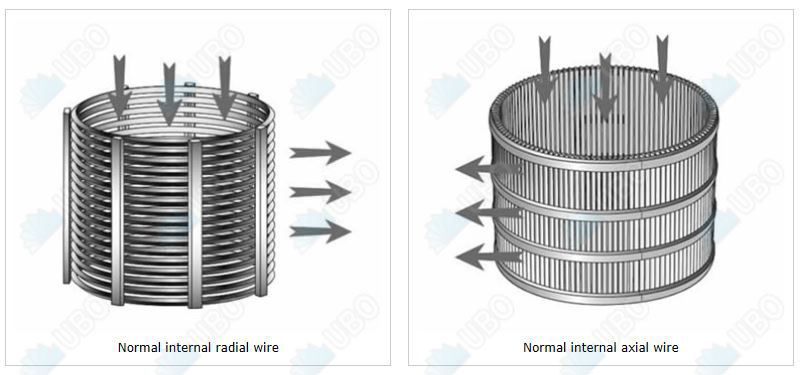

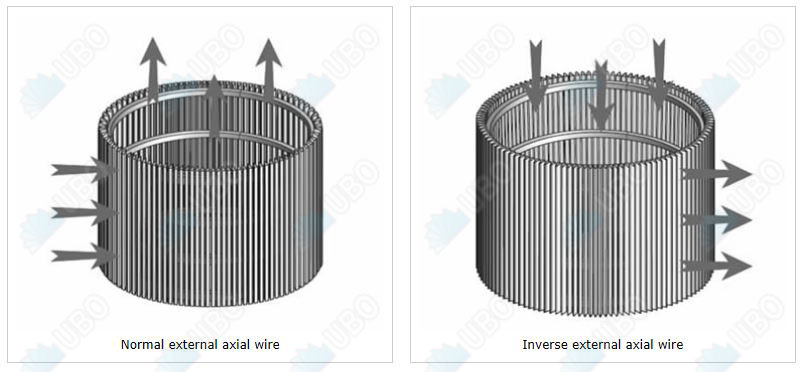

      Wedge wire screen cylinders can be manufactured in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder.
      These stainless steel wedge wire screen cylinders can be manufactured for stationary/static processing or can be driven on trunions for a rotating effect on your materials.

Characteristics for stainless steel Wedge wire screen Cylinder with the best screen:

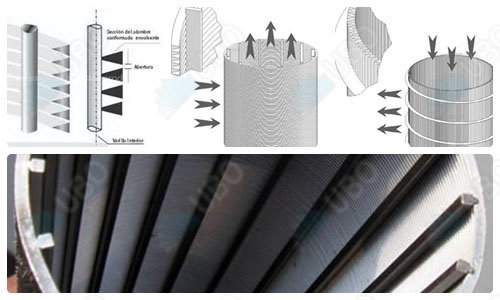

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Uses for stainless steel Wedge wire screen Cylinder with the best screen:

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantages for stainless steel Wedge wire screen Cylinder with the best screen:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Features for stainless steel Wedge wire screen Cylinder with the best screen:

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation
Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

stainless steel Wedge wire screen Cylinder with the best screen

stainless steel Wedge wire screen Cylinder with the best screen

stainless steel Wedge wire screen Cylinder with the best screen

Specifications of stainless steel Wedge wire screen Cylinder with the best screen:

stainless steel Wedge wire screen Cylinder with the best screen

Outside Diameter
Profile
wire
Rod
wire
Rod
quantity
Slot
size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05

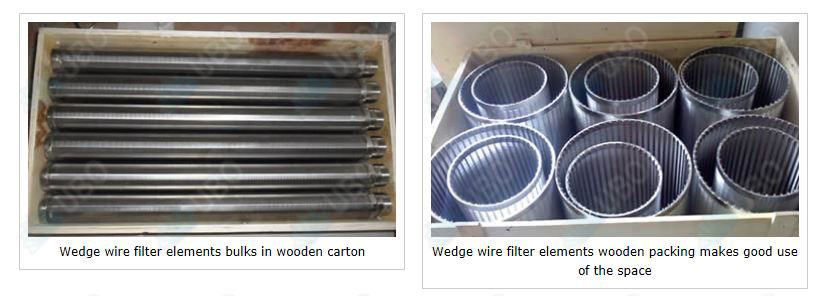

Packaging and Transportation of stainless steel Wedge wire screen Cylinder with the best screen:

stainless steel Wedge wire screen Cylinder with the best screen

stainless steel Wedge wire screen Cylinder with the best screen
