Wedge V Wire Screen Slotted Liner Water Filter Tube
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen pipe |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge V Wire Screen Slotted Liner Water Filter Tube

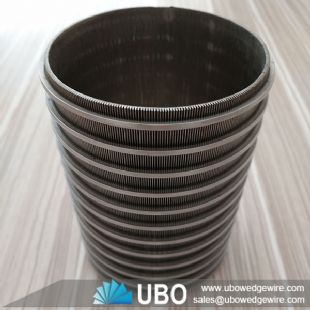

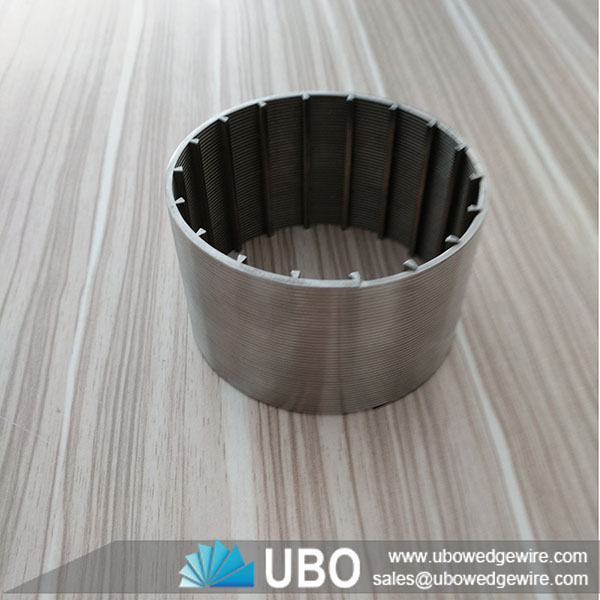

Wedge v wire screen slotted liner water filter tube is made with inverted wrapped V wire (mostly stainless steel ) welded to the supporting ss bar or rod.The welded stainless steel oil well screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire). Well screens have a structure and high opening area, as well as accurate slot dimension. In the same time, oil well screen have heat-resisting, anti-corrosive, good machine capability, long life span, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Features of wedge v wire screen slotted liner water filter tube
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption
3. Reduce the abrasion of the pump Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Application of wedge v wire screen slotted liner water filter tube
The continuous-slot well screen strainer is recommended in the following situations:
Formation comprised of small or fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Small diameter wells
Specifications of Wedge V Wire Screen Slotted Liner Water Filter Tube:
|
|||||||
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
OD Range |
19mm-2000mm |
||||||
ID Range |
13mm-1981mm |
||||||
Length Range |
Up to 6000 mm |
||||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
3*5 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.8*2.5
2x3 |
2x3
2x4
3x5
3x6
3x10
4x7 |
2x4
3x5
3x6
3x10
4x7
5x6 |
3x5
3x6
3x10
4x7
5x6
5x8 |
End Finishing |

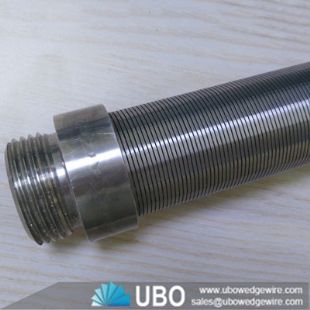

Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
||||||
Note |
Customized According To Requirement |
