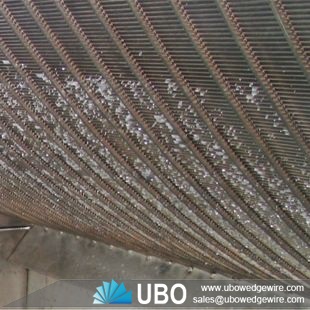

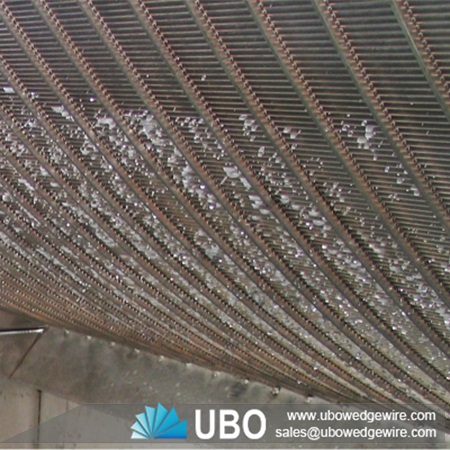

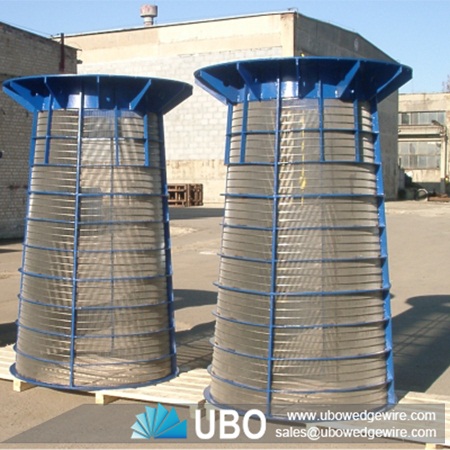

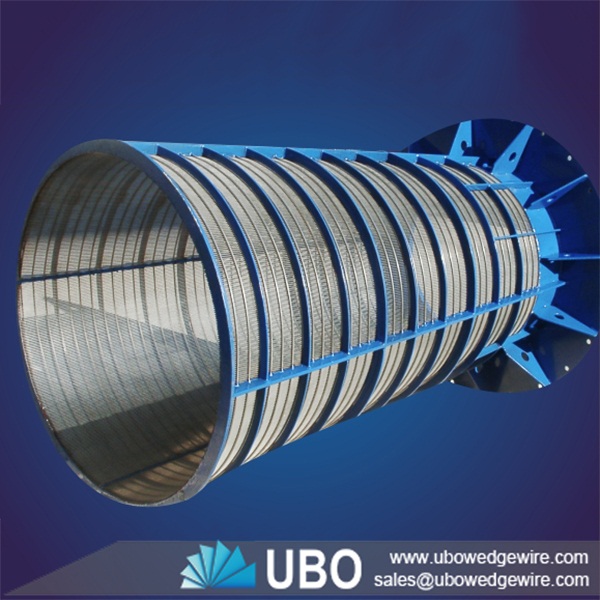

V Wire Screen Rotary Drum Cylinder

More Views

V Wire Screen Rotary Drum CylinderV Wire Screen Rotary Drum CylinderV Wire Screen Rotary Drum Cylinder

V Wire Screen Rotary Drum Cylinder

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen cylinders
Application:Poultry and seafood processing,Industrial waste treatment system,Municipal waste treatment system,Snack and frozen food processing

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V Wire Screen Rotary Drum Cylinder

To mechanically separate liquids and solid particles, rotary wedge wire drum screens are used. Their construction is based on wire tubes with supporting and reinforcing structure. The rotary sieves have been prepared to work uninterruptedly, maintaining high efficiency and at the same time low consumption of energy. The drum screen is also self-cleaning.

Features for V Wire Screen Rotary Drum Cylinder

-- The discharge end of the drum rests on two sets of self-aligning twin rollers

-- Rotary screen sizes range from 1000 mm to 2400 mm ID and from 1000 mm to 5600 mm long Flow rates are dependent on Rotary Screen’s open area and size

-- The rotating screen is a unique metal to metal welded wedge bar screen with aperture size ranging from 0.2 to 0.7mm as also as per customer’s demands

-- Internally-fed Rotary Screen uses a cylindrical drum mounted on trunnion holding plate that is supported on 2 pedestal bearing blocks

Application for V Wire Screen Rotary Drum Cylinder

Poultry and seafood processing
Industrial waste treatment system
Municipal waste treatment system
Snack and frozen food processing
Fruit and vegetables processing
Chemical processing
Brewing processing
Meat processing
Pulp & Paper Industrial processing
Tanning Industrial processing

Characteristic for V Wire Screen Rotary Drum Cylinder

Rotary screen drums are the vital part of the rotary screen used in many industries for filtration. This allows a mixture of liquids and solids fed into the screen drum to be separated, with the liquid passing out through apertures in the screen drum body, while the solids are conveyed to one end of the screen drum for separate discharge.

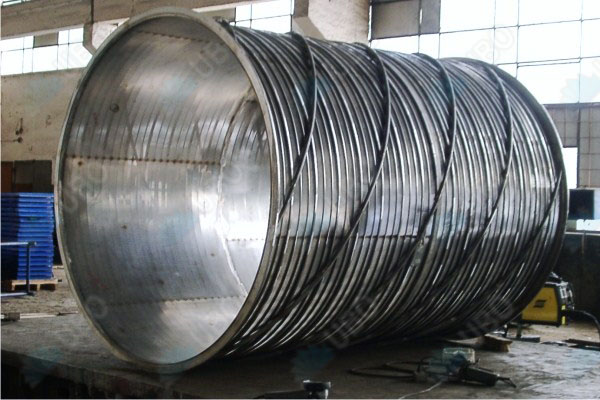

Rotary Drum Cylinder Filter V wire Wedge Wire Screens

Rotary Drum Cylinder Filter V wire Wedge Wire Screens

Specifications of V Wire Screen Rotary Drum Cylinder:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of V Wire Screen Rotary Drum Cylinder:

Rotary Drum Cylinder Filter V wire Wedge Wire Screens
