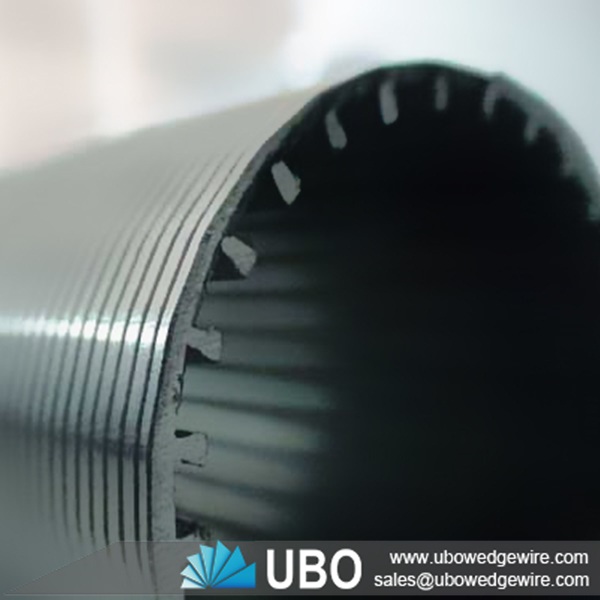

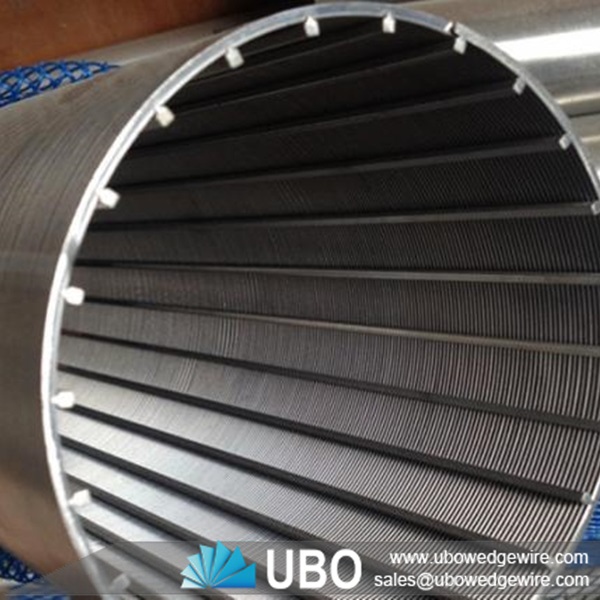

Stainless steel Wedge Wire water well screen cylinders
| Category: | Wedge Wire Pipe&Cylinder |
|---|---|
| Material: | stainless steel |
| Properties: | Wedge wire screen cylinders |
| Application: | waste water filtration, food processing,an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chi |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless steel Wedge Wire water well screen cylinders

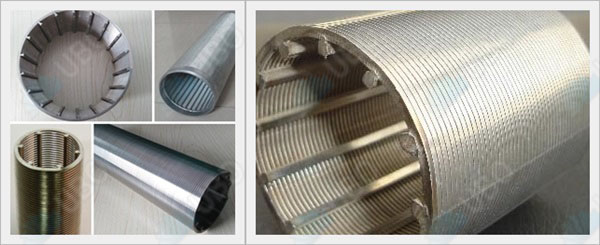

Wedge wire screen cylinders can be produced in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunnions for a rotating effect on your materials.
Application for Stainless steel Wedge Wire water well screen cylinders:
Our stainless steel Wedge wire screen cylinders can be used in waste water filtration, food processing, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.
Advantage for Stainless steel Wedge Wire water well screen cylinders:
1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2.A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Features for Stainless steel Wedge Wire water well screen cylinders:
High mechanical strength, can withstand greater pressure
Uniform aperture, form uniform filter cake, beneficial backwash regeneration
Wedge-shaped filter gap, improve backwash regeneration capacity
High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.
Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.
Specifications of Stainless steel Wedge Wire water well screen cylinders:
|
Size
(inch)
|
O.D
(mm)
|
Slot
(inch)
|
Collapse Strength
(Psi)
|
Tensile Weight
(Ton)
|
Wrap(thick*deep)
(mm)
|
Rods
(mm)
|
|
4
|
117
|
0.04
|
395
|
6
|
2.2*3.0
|
3.8mm/22
|
|
4
|
114.3
|
0.04
|
395
|
6
|
2.3*3.0
|
3.8mm/22
|
|
6
|
168.3
|
0.04
|
252
|
8
|
2.3*3.5
|
3.8mm/32
|
|
8
|
219.1
|
0.01
|
399
|
10.5
|
3.0*5.0
|
3.8mm/48
|
|
8
|
219.1
|
0.02
|
370
|
10.5
|
3.0*5.0
|
3.8mm/48
|
|
8
|
219.1
|
0.04
|
323
|
10.5
|
3.0*5.0
|
3.8mm/48
|
|
10
|
273.1
|
0.01
|
206
|
11
|
3.0*5.0
|
3.8mm/50
|
|
10
|
273.1
|
0.02
|
191
|
11
|
3.0*5.0
|
3.8mm/50
|
|
10
|
273.1
|
0.04
|
167
|
11
|
3.0*5.0
|
3.8mm/50
|
Packaging and Transportation of Stainless steel Wedge Wire water well screen cylinders:
•Packaging: Wooden Cases(To be packed in strong wooden cases, suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks)
•Delivery time:If this kind of product in stock, the product will be send for you 1-7 days after payment.If this kind of product are not in stock in our factory, the product will take about 7-25 days to produce.
•Shipping: Maritime; Railway; Air(DHL/UPS/TNT/FEDEX)
