Stainless Steel Welded Wedge Wire Pipe Filter Screen

More Views

Stainless Steel Welded Wedge Wire Pipe Filter ScreenStainless Steel Welded Wedge Wire Pipe Filter ScreenStainless Steel Welded Wedge Wire Pipe Filter Screen

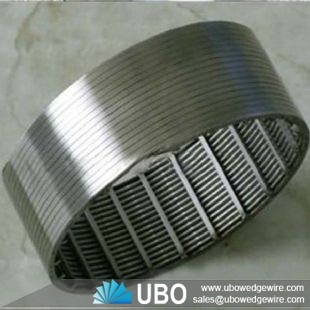

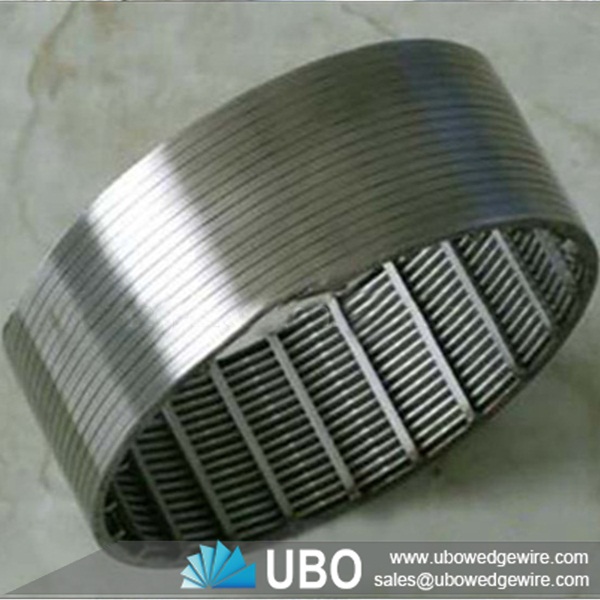

Stainless Steel Welded Wedge Wire Pipe Filter Screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen
Application:the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Welded Wedge Wire Pipe Filter Screen

Welded wedge wires are superior for retaining media, filtering, and sizing. In comparison with wire mesh and perforated metal, wedge wire continuous slot screens have more open area, have very precise openings, are stronger and more durable, are virtually non-clogging and reduce media abrasion.

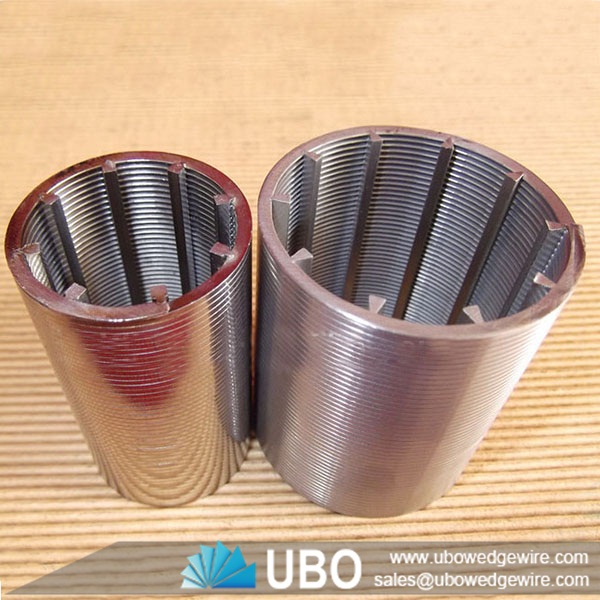

Stainless steel Welded wedge wire pipe filter screen

Application for Stainless Steel Welded Wedge Wire Pipe Filter Screen:



Stainless steel pipe filter screen is a kind of filtered water tubing with the perforation. It can use with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.



Advantages for Stainless Steel Welded Wedge Wire Pipe Filter Screen:



1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5) Long live: Welded at each intersection creating a strong and durable screen.

6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.



Technical Patameter for Stainless Steel Welded Wedge Wire Pipe Filter Screen:

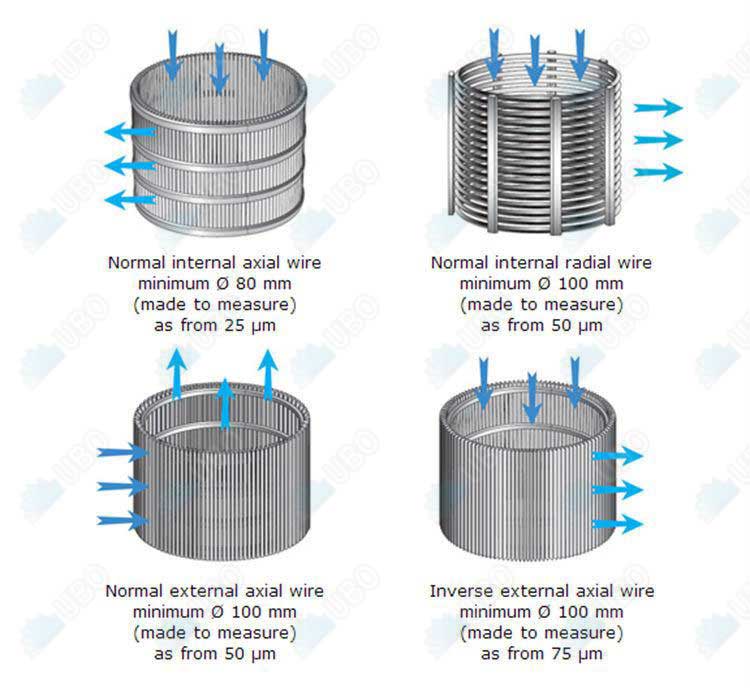

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Stainless steel Welded wedge wire pipe filter screen

Stainless steel Welded wedge wire pipe filter screen

Specifications of Stainless Steel Welded Wedge Wire Pipe Filter Screen:

Stainless steel Welded wedge wire pipe filter screen

Screen Area
(m2)
Sieve Hole Size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~220
4
Φ1.6~Φ3.5
0.1~0.55
500~1000
350~730
1~4
132~280

Packaging and Transportation of Stainless Steel Welded Wedge Wire Pipe Filter Screen:

Stainless steel Welded wedge wire pipe filter screen
