Stainless Steel Wedge Wire screen v wire screen tube screen

More Views

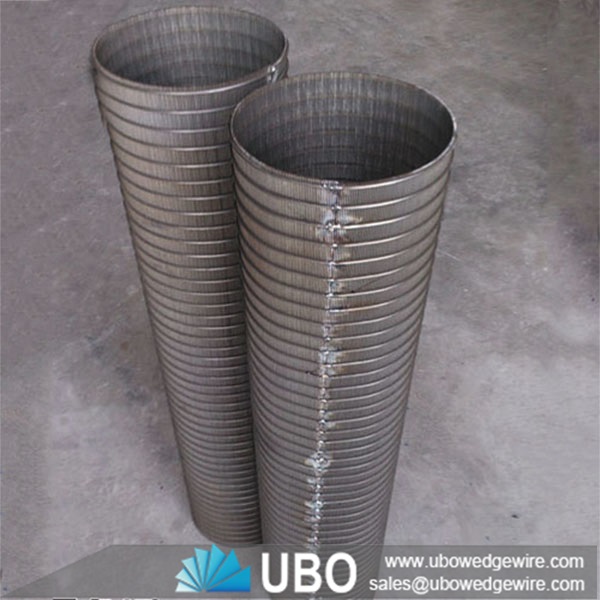

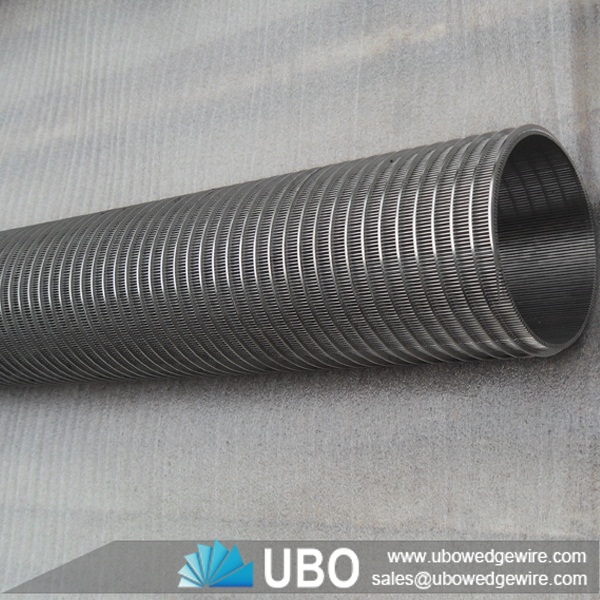

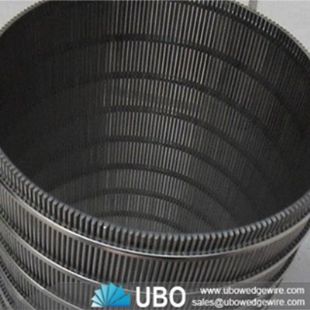

Stainless Steel Wedge Wire screen v wire screen tube screenStainless Steel Wedge Wire screen v wire screen tube screenStainless Steel Wedge Wire screen v wire screen tube screen

Stainless Steel Wedge Wire screen v wire screen tube screen

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire screen v wire screen tube screen

    Stainless steel 316 wire wrap V shaped screen pipe, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.
       As we all know, the wire wrap V shaped screen pipe is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire. The support wire can be triangular wire, round wire and trapezoid wire

Stainless Steel Wedge Wire screen v wire screen tube screen

Application for Stainless Steel Wedge Wire screen v wire screen tube screen:

This screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chemical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.

Feature for Stainless Steel Wedge Wire screen v wire screen tube screen:

1.The stainless steel water well screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.
2.This type of screen made up of rods and warp.the rod can be round wire,triangular wire and trapezoid wire.
3.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
4.The warp is triangular wire(v-shape wire).The water well screens have astructure and high open area;as well as accurate slot dimension.
5.Water well screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.

Advantage for Stainless Steel Wedge Wire screen v wire screen tube screen:

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Stainless Steel Wedge Wire screen v wire screen tube screen

Specifications of Stainless Steel Wedge Wire screen v wire screen tube screen:

Stainless Steel Wedge Wire screen v wire screen tube screen

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel Wedge Wire screen v wire screen tube screen:

Stainless Steel Wedge Wire screen v wire screen tube screen

Stainless Steel Wedge Wire screen v wire screen tube screen
