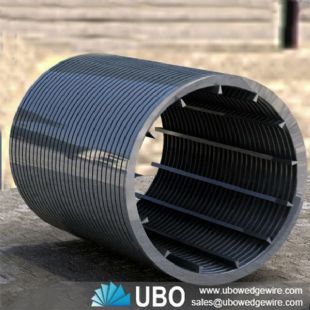

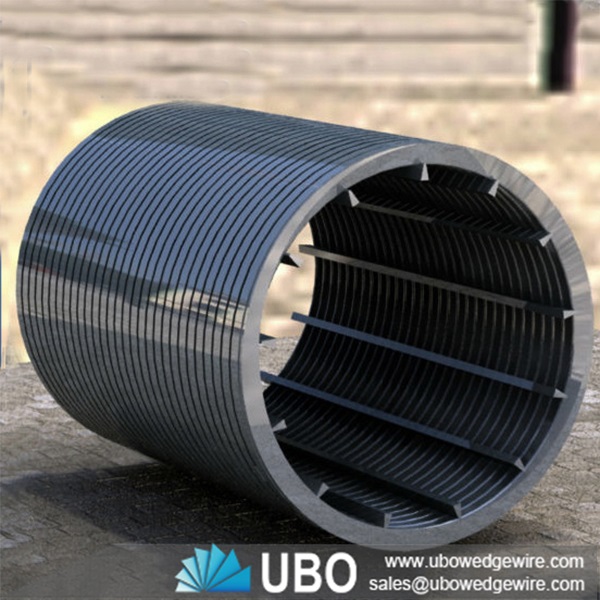

Stainless Steel Wedge Wire Screen pipe used for well drilling

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire pipe
Application:mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Screen pipe used for well drilling

    Stainless steel wedge wire tubes is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

Characteristics for Stainless Steel Wedge Wire Screen pipe used for well drilling:

1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits

Application for Stainless Steel Wedge Wire Screen pipe used for well drilling:

The wedge wire cylinders are widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

Technical parameter for Stainless Steel Wedge Wire Screen pipe used for well drilling:

Wedge wire cylinder diameter is from 25mm to 1500mm.
Wedge wire cylinder length is from 0.3m to 12m.
For wedge wire cylinder, profile wire is generally triangle wire;
support rod includes triangle wire,round rod,flat wire etc

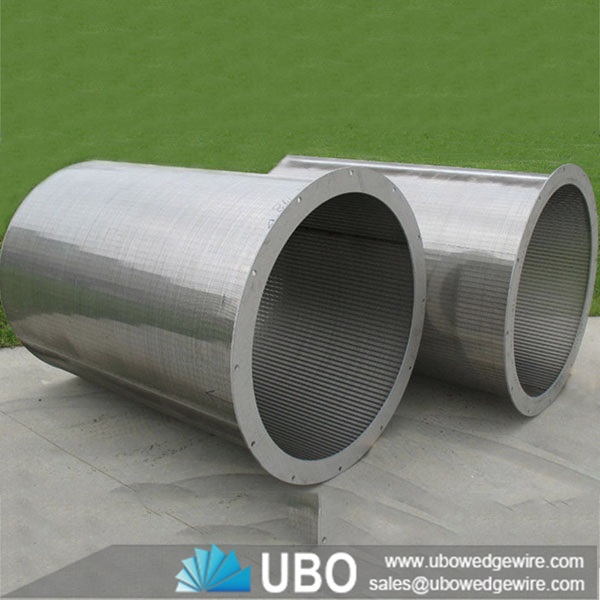

Stainless Steel Wedge Wire Screen pipe used for well drilling

Specifications of Stainless Steel Wedge Wire Screen pipe used for well drilling:

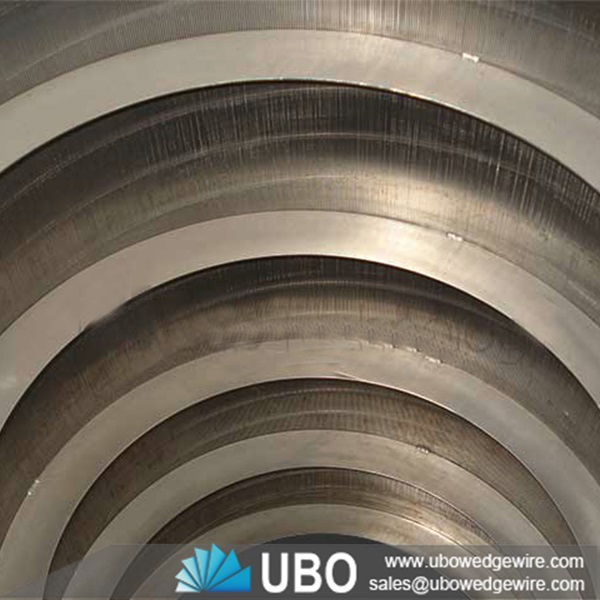

 Stainless Steel Wedge Wire Screen pipe used for well drilling

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel Wedge Wire Screen pipe used for well drilling:

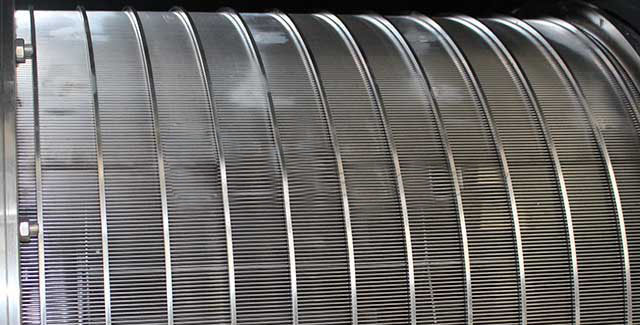

Stainless Steel Wedge Wire Screen pipe used for well drilling
