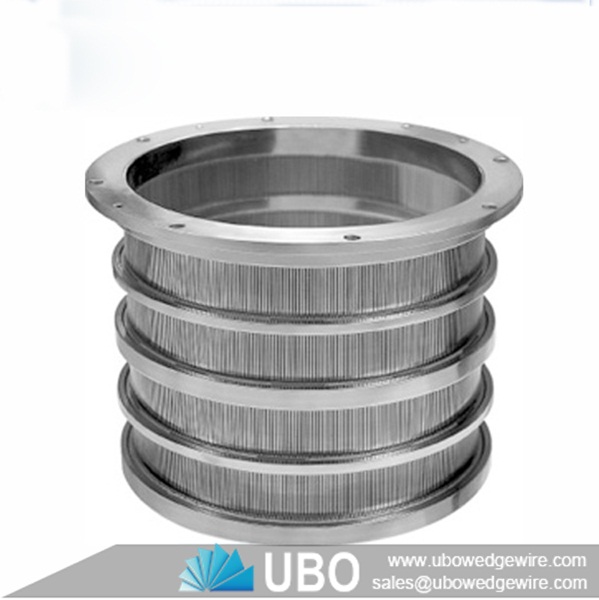

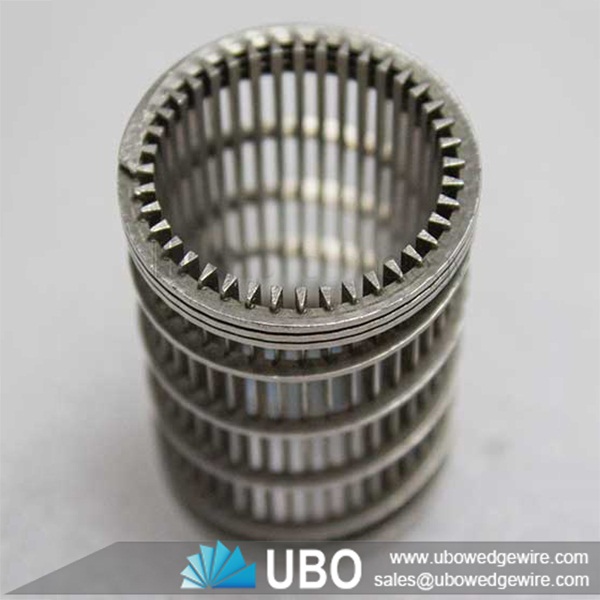

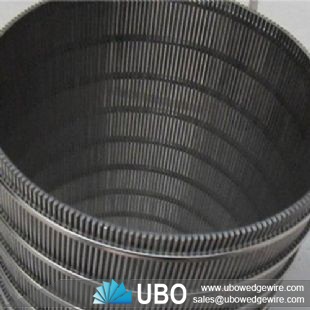

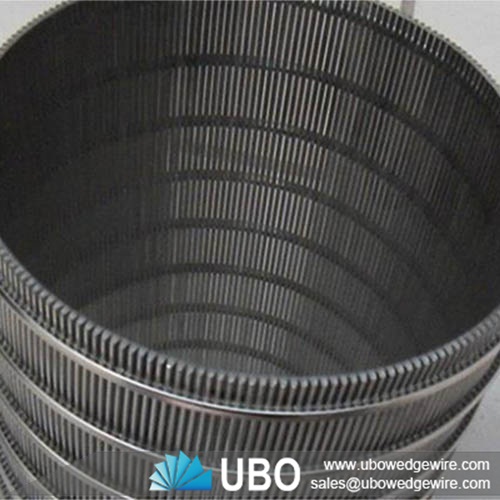

Stainless Steel Wedge Wire Cylindrical Strainers
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | wedge wire cylinder screens |
Application: | wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

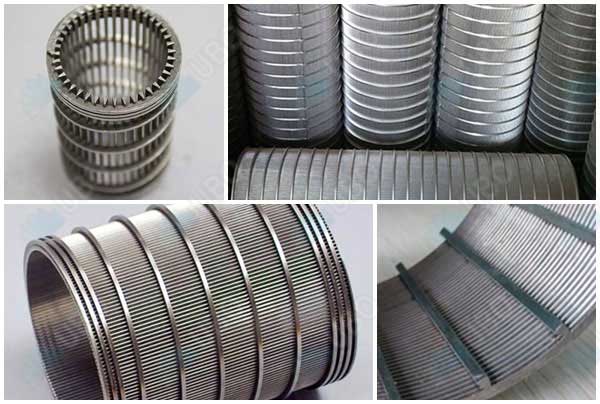

Details of Stainless Steel Wedge Wire Cylindrical Strainers
The Wedge Wire Screen Cylinder is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure
Applictions for Stainless Steel Wedge Wire Cylindrical Strainers:
Applications for wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, food processing, and flooring for malt kiln, germination, and grain drying.
Benefits for Stainless Steel Wedge Wire Cylindrical Strainers:
• Each filter constructed of 316 stainless steel and features a permanent handle for easy installation, removal and cleaning
• Manfre basket filter designed for maximum operating pressures of up to 150 psi (9.0 bar) and high flow rates
• Cleanable permanent media
• Optional ratings available down to 550 mesh (25 micron)
• Five standard ratings available from 20 to 100 mesh
Features for Stainless Steel Wedge Wire Cylindrical Strainers:
1) It has high mechanical strength, can bear large pressure drop.
2) It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3) The wedge type slot can improve back flushing and regeneration performance.
4) It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Specifications of Stainless Steel Wedge Wire Cylindrical Strainers:
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
|
Note: other specifications available as per request
|
|
Slot size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
Length
|
up to 6 meters.
|
Diameter
|
from 25mm to 1200mm.
|
End connection
|
Plain beveled ends, flanged or threaded couplings
|
