Quality Wedge Wire Screen Manufacturer in China

Stainless Steel Wedge Wire Cylindrical Screen

More Views

Stainless Steel Wedge Wire Cylindrical ScreenStainless Steel Wedge Wire Cylindrical ScreenStainless Steel Wedge Wire Cylindrical Screen

Stainless Steel Wedge Wire Cylindrical Screen

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen
Application:water-treating equipment,the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Cylindrical Screen

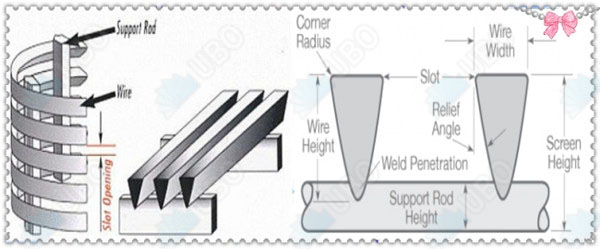

Welded continuous slot wedge wire screens are  made up of rods and wire.The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire).Wedge wire screens have a structure and high open area, as well as accurate slot dimension.At the same time,wedge wire screens have heat-resisting, anti-corrosive, good machine capability, last long,safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.


Advantages for Stainless Steel Wedge Wire Cylindrical Screen:

-- High mechanical strength can bear large pressure drop.

-- Equal slots for filtering can form equally distributed filter cake.

-- The wedge type slot can improve backflushing and regeneration performance.

-- It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.

-- Material 316L, 304, can be made as per your option.


Application for Stainless Steel Wedge Wire Cylindrical Screen:

It can use with the deep well pump, dive the water pump,also may use in the water-treating equipment,the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters,the ethyl alcohol and so on the organic solution recycling filters.


Features for Stainless Steel Wedge Wire Cylindrical Screen:

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.
Stainless Steel Wedge Wire Cylindrical Screen

Specifications of Stainless Steel Wedge Wire Cylindrical Screen:

Stainless Steel Wedge Wire Cylindrical Screen

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel Wedge Wire Cylindrical Screen:

• Packaging: Wooden Cases (To be packed in strong wooden cases, suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks)


• Delivery time: If this kind of product in stock, the product will be send for you 1-7 days after payment.If this kind of product are not in stock in our factory, the product will take about 7-25 days to produce.
