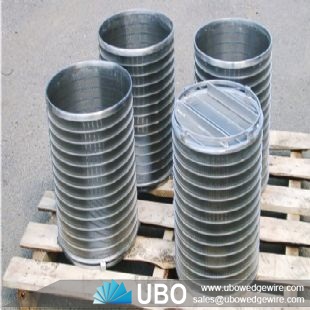

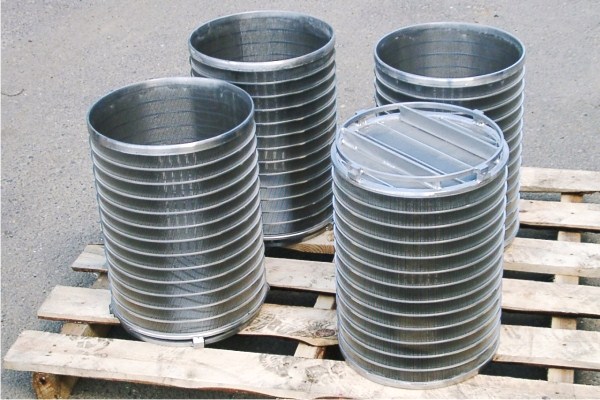

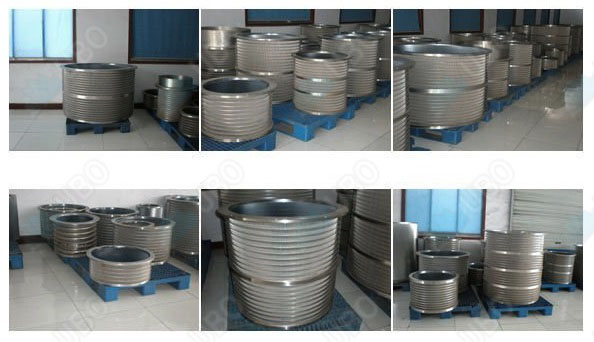

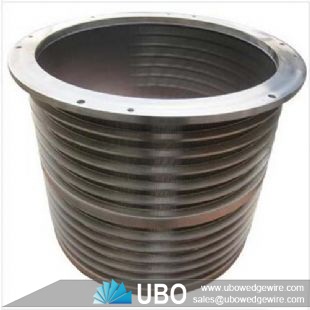

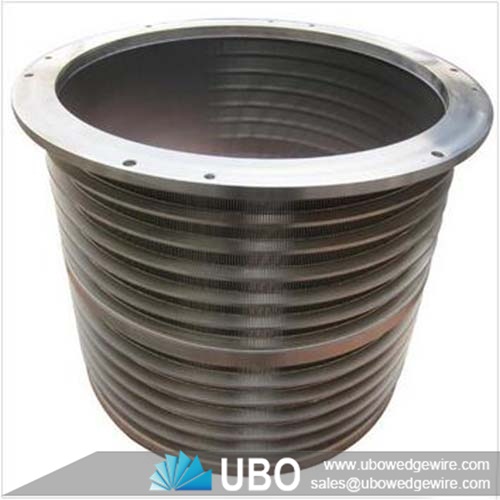

Screw Press Screens
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge wire screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Screw Press Screens
Screw presse screens are used in a wide variety of dewatering applications, often in the same applications as belt presses, centrifuges, and filter presses. The screw press is a simple, slow moving mechanical device. Dewatering is continuous and is accomplished by gravity drainage at the inlet end of the screw and then by reducing the volume as the material being dewatered is conveyed from the inlet to the discharge end of the screw press.
Applications of Screw Press Screens:
Screw press screens are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment..
Screw presses are used in a wide variety of dewatering applications, often in the same applications as belt presses, centrifuges, and filter presses.
Features of Screw Press Screens:
1) Non-clogging surface
2) Large open area
3) Low pressure drop
4) Hydraulic efficiency
5) High flow rates
6) Mechanical strength
7) Abrasion-resistant
8) Easy cleaning
Specifications of Screw Press Screens:
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70....
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00....
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70....
Height(mm): 2.70 3.60 4.70 5.60 6.30....
Round: From 2.50mm to 6.0mm....
|
Note: other specifications available as per request
|
|
Slot size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
Length
|
up to 6 meters.
|
Diameter
|
from 25mm to 1200mm.
|
End connection
|
Plain beveled ends, flanged or threaded couplings
|
