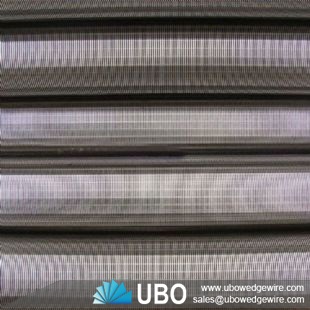

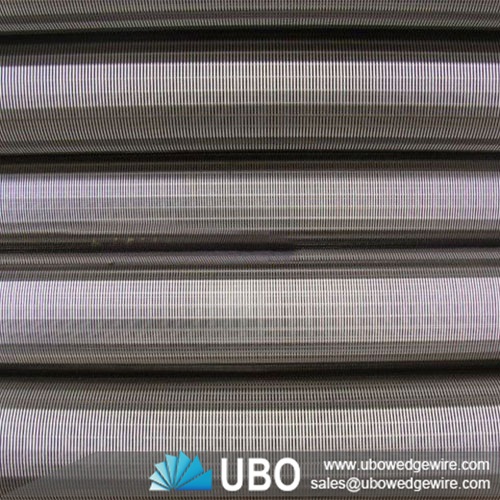

Sand Control Perforated Slotted Filter Wedge Wire Wrapped Pipe

Welded Wedge Wire Screens are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Applications for Sand Control Perforated Slotted Filter Wedge Wire Wrapped Pipe:

Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for Sand Control Perforated Slotted Filter Wedge Wire Wrapped Pipe:

Self Supporting;
High Abrasion resistance;
Low pressure drop;
High resistance to Vibration.

working principle for Sand Control Perforated Slotted Filter Wedge Wire Wrapped Pipe:

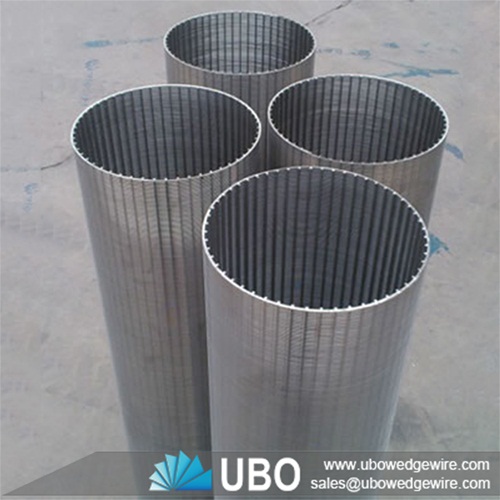

Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.

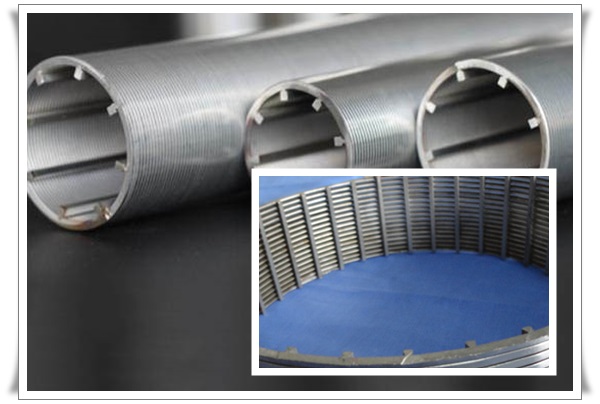

1. End view of external-fed cylinder.
2. Internally-fed fabricated rotary screen cylinder.
3. Internally-fed rotary screen cylinder.
4. Reinforced externally-fed rotary screen.

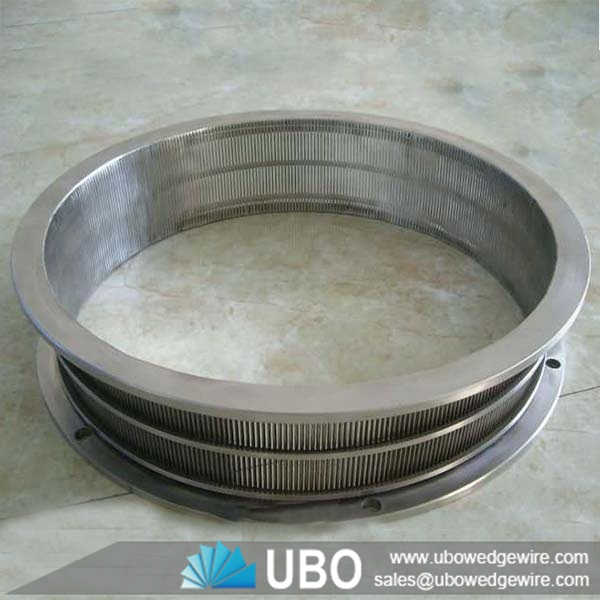

5. Externally-fed rotary screen with flanges.
6. Internally-fed rotary screen with flights.

1.Materials: stainless steel and low carbon steel, such as 304 302 304L 316 316L Q235, and they can be made according to the customers requirement.
2.Diameter:33-600mm (1-20inch)
3.Slot:0.05,0.1,0.2,0.5,0.75,1,1.5,2mm
4.Length:1-10m(5.8m for the 20ft container)
5.Standard: ISO, API
6.Connection: Welding, Thread (STC,LTC,BTC),Flange
7.Supply capacity:6800m/month contact: xxhdzg16 at live dot cn
8. First class technology, High quality, Competitive price, Fast delivery
Meanwhile, the specification of products can change according to the real condition of the earth.
If you are interested in our product, please contact us for more information.
