316L Stainless Steel With High Precision Filtering pipe

More Views

316L Stainless Steel With High Precision Filtering pipe316L Stainless Steel With High Precision Filtering pipe316L Stainless Steel With High Precision Filtering pipe

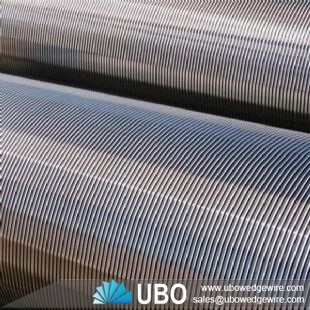

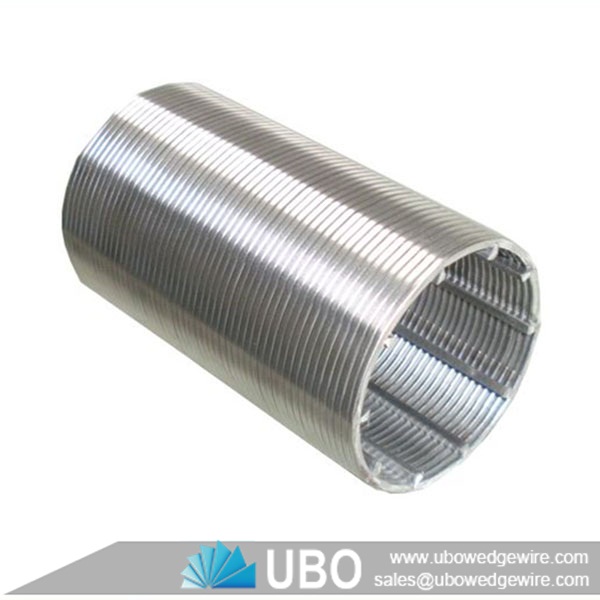

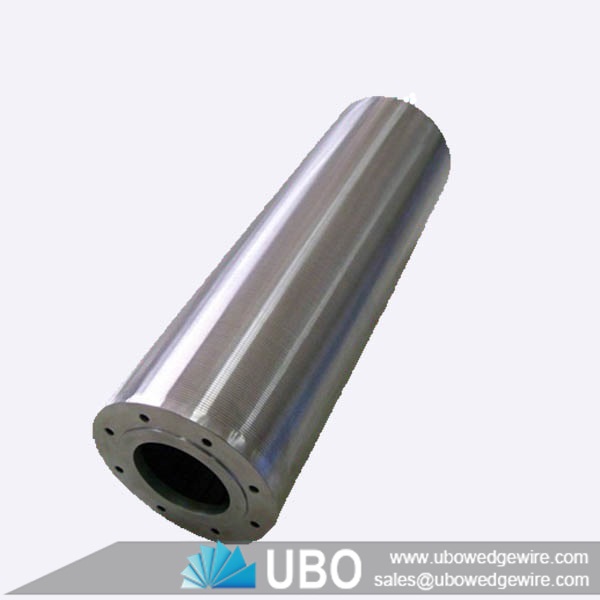

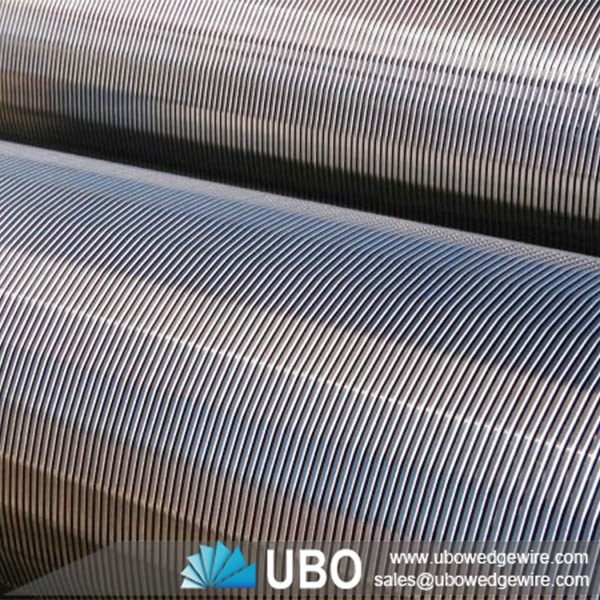

316L Stainless Steel With High Precision Filtering pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel
Properties:stainless steel wedge wire
Application:wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 316L Stainless Steel With High Precision Filtering pipe

    The wedge wire screens have triangular profiles and can be constructed with various slot dimensions. They are used for architectural, industrial and naval purposes. The industries also use wedge wire screens in filtration systems, since they are very easy to clean thanks to their triangular profiles. Stainless steel is the most suitable material for constructions that require resistance to time and environmental conditions. High Top offers the choice between various slot dimensions according to our customers needs. All necessary accessories needed for the installation of this product can be provided as well.

Feature for 316L Stainless Steel With High Precision Filtering pipe:

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

Appliction for 316L Stainless Steel With High Precision Filtering pipe:

Applications for wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, food processing, and flooring for malt kiln, germination, and grain drying.

Advantages for 316L Stainless Steel With High Precision Filtering pipe:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Filtrations Direction for 316L Stainless Steel With High Precision Filtering pipe:

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO)

316L Stainless Steel With High Precision Filtering pipe

Specifications of 316L Stainless Steel With High Precision Filtering pipe:

316L Stainless Steel With High Precision Filtering pipe

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

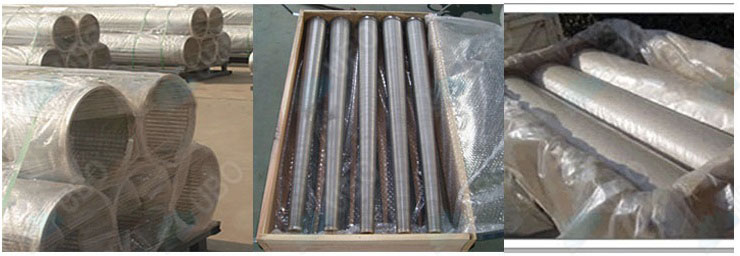

Packaging and Transportation of 316L Stainless Steel With High Precision Filtering pipe:

316L Stainless Steel With High Precision Filtering pipe

316L Stainless Steel With High Precision Filtering pipe
