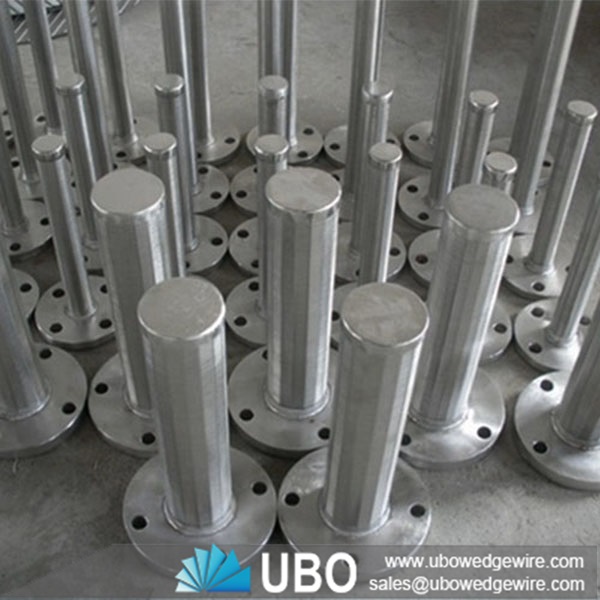

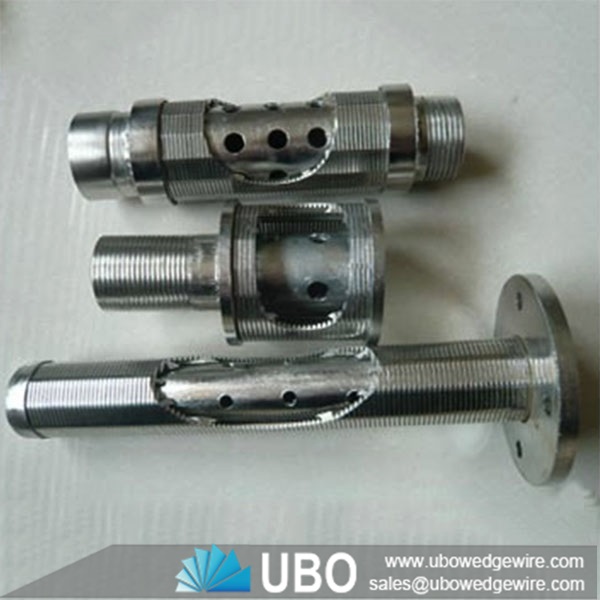

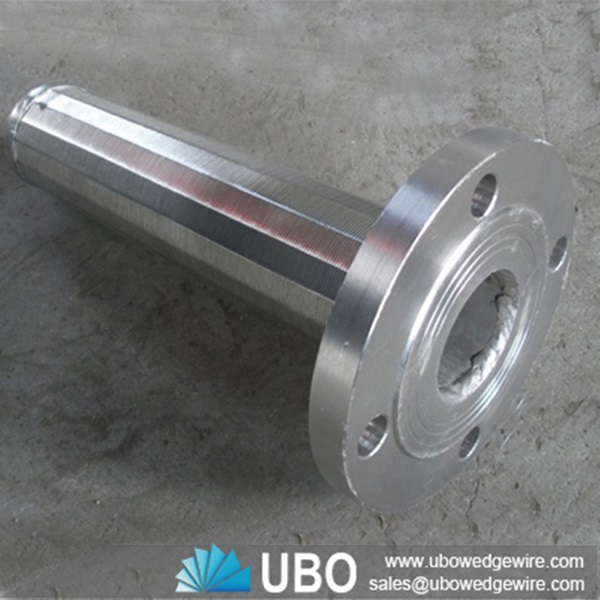

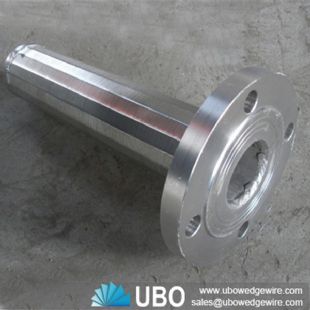

water well Wedge Wire screen resin trap

More Views

water well Wedge Wire screen resin trapwater well Wedge Wire screen resin trapwater well Wedge Wire screen resin trap

water well Wedge Wire screen resin trap

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of water well Wedge Wire screen resin trap

      Wedge wire resin trap strainers are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

Application for water well Wedge Wire screen resin trap:

A resin trap is normally used: to capture expensive resin that escapes from a treatment vessel by accident, to protect equipment further downstream. A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube

Features for water well Wedge Wire screen resin trap:

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

Characteristics for water well Wedge Wire screen resin trap:

1. filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.
2. trapezoidal wire evenly circumferentially array on the support bar,ensure the screen filter area and non-obstructive, avoiding impurities concentrated.
3. resin trap all connected by welding, durable, long life.
4. After working for some time,can filter backwash, multiple use

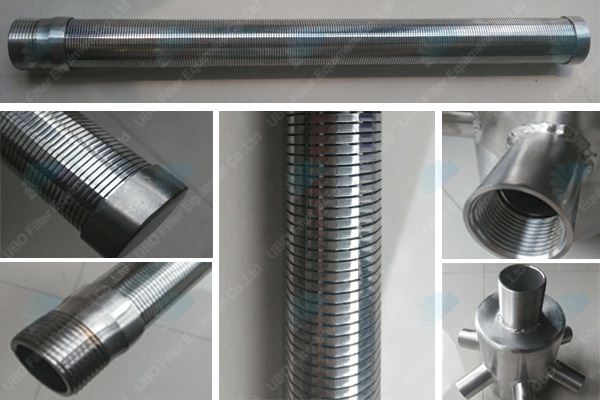

water well Wedge Wire screen resin trap

Specifications of water well Wedge Wire screen resin trap:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of water well Wedge Wire screen resin trap:

water well Wedge Wire screen resin trap
