Wedge Wire Screen Resin Trap Strainer

More Views

Wedge Wire Screen Resin Trap StrainerWedge Wire Screen Resin Trap StrainerWedge Wire Screen Resin Trap Strainer

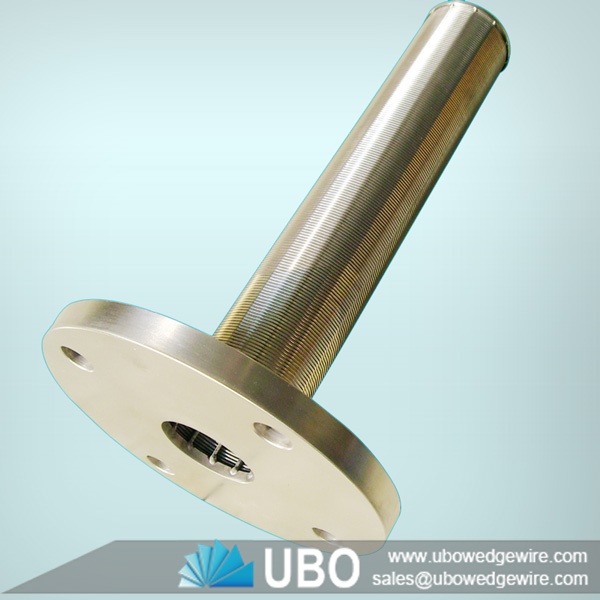

Wedge Wire Screen Resin Trap Strainer

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Resin Trap Strainer

UBO wedge wire resin trap strainer screen provide a high percentage of open area thus minimizing pressure loss through the system. Your resin trap can be designed to suit either new or existing strainer bodies.

Wedge wire resin trap strainer screen is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

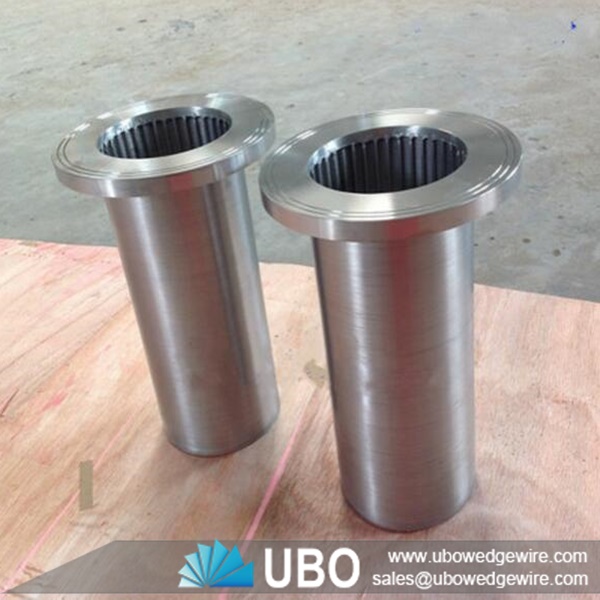

Wedge wire resin trap strainer screen

Application of Wedge Wire Screen Resin Trap strainer

1) feedstock oil backwash cleaning filter device in the system for petrochemical hydrogenation

2) precious metals catalysts recovery for hydrogenation system

3) Catalytic outer rejection oil automatic backwash cleaning filter system

4) purification of liquid sulphur filter

5) lubricants and heat-conducting oil filter

6) paraffin raw materials and products of filter

7) the rich amine liquid backwash purification filter in the amine desulfurization system

8) high-temperature coal gas, smoke gas and oil gas purification

9) raw materials of paraffin wax and backwash purification filter

10) the gas-liquid mixing pressurized reverse washing efficiency continuous filtration technology

Features of Wedge Wire Screen Resin Trap strainer

•Reduced costs, since wedge wire screens have a very long life.

•Greater resistance to stresses of different pressure and temperature.

•Maximum effective flow area & operating efficiency is maintained.

•Costly downtime for cleaning plugged screens is minimize.

Specifications of Wedge Wire Screen Resin Trap Strainer:

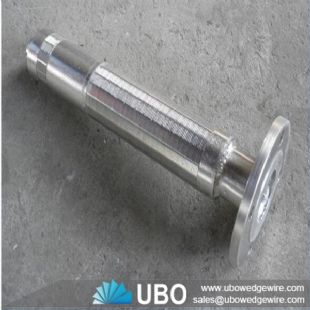

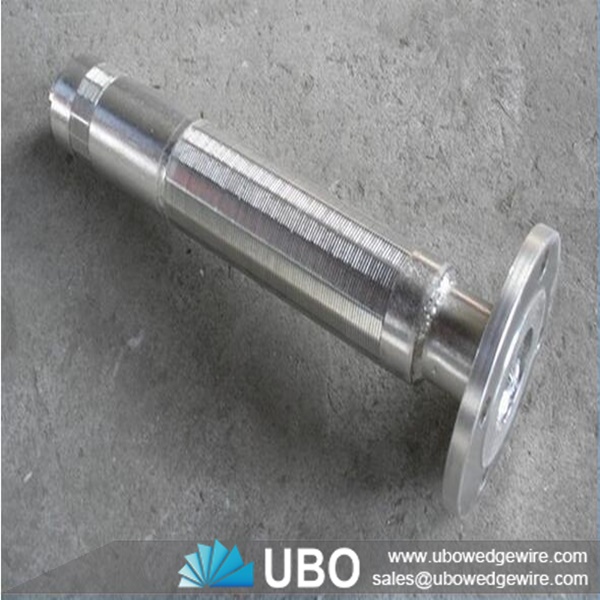

Wedge wire resin trap strainer screen

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Screen Resin Trap Strainer:

Package:in wood case.
Delivery Time: 5-25 days.
